Basic Instructions
2 − 42
Outline TMR:Sets the on-delay timer for 0.01 s units
TMX: Sets the on-delay timer for 0.1 s units
TMY: Sets the on-delay timer for 1.0 s units
6

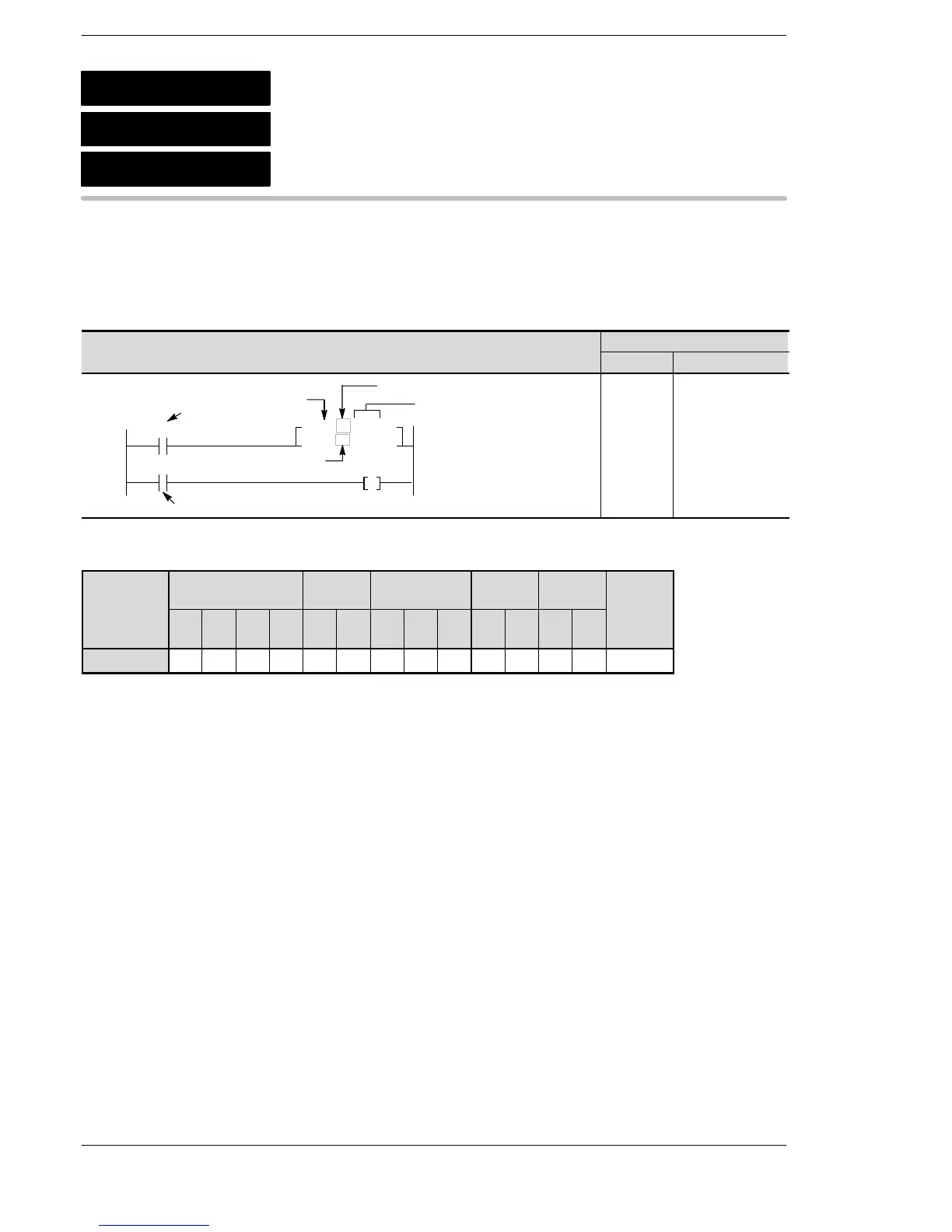

Program example
Ladder
Diagram
Boolean
Ladder Diagram
Address Instruction
T5
Set value
X0
TMX 5 K 30
0
4
Y37
Trigger
Timer contact of timer No.5
Timer number
Unit of timer
Elapsed value
0
1
4
5
ST X 0
TMX 5
K30
ST T 5
OT Y 37
Operands
Instruction
Relay
Timer/
Counter
Register
Index
register
Constant
Index
modifier
Instruction
WX
(*1)
WY
(*1)
WR
(*1)
WL
(*1)
SV
EV
(*1)
DT
(*1)
LD
(*1)
FL
(*3)
IX IY K H
mo
difi
er
(*2)
Set value A A A A A A A A A N/A N/A A N/A A
(*1) This can be used with the FP2SH/FP10SH/FP−X (V2.0 or more)/FPΣ (V3.10 or more)/FP0R.
(*2) This can be used with the FP2/FP2SH/FP10SH.
(*3) This can be used with the FP2SH/FP10SH.
Description
The timer is a non−hold type that is reset if the power is turned off, or if the mode is changed from the RUN to
the PROG mode. (If it is necessary to hold the operation state, set system register 6. In that case, a battery
must be used.)
Note) The FP0 T32 is the type with a built−in secondary battery.
When the trigger is on, the set time [n] decrements, and when the elapsed value reaches zero, timer contact
Tn (n is the timer contact number) turns on.
If the trigger turns off during operation, operation stops and the elapsed value is reset (cleared to 0).
An OT instruction can be entered immediately after a timer coil.
TMR
TMX
TMY
Timer (0.01s units)
Timer (0.1s units)
Timer (1.0s units)
A: Available
N/A: Not Available
