Panasonic FP-E - Page 180

Basic Instructions
2 − 70
Outline Indicates the end of the ordinary program.
9

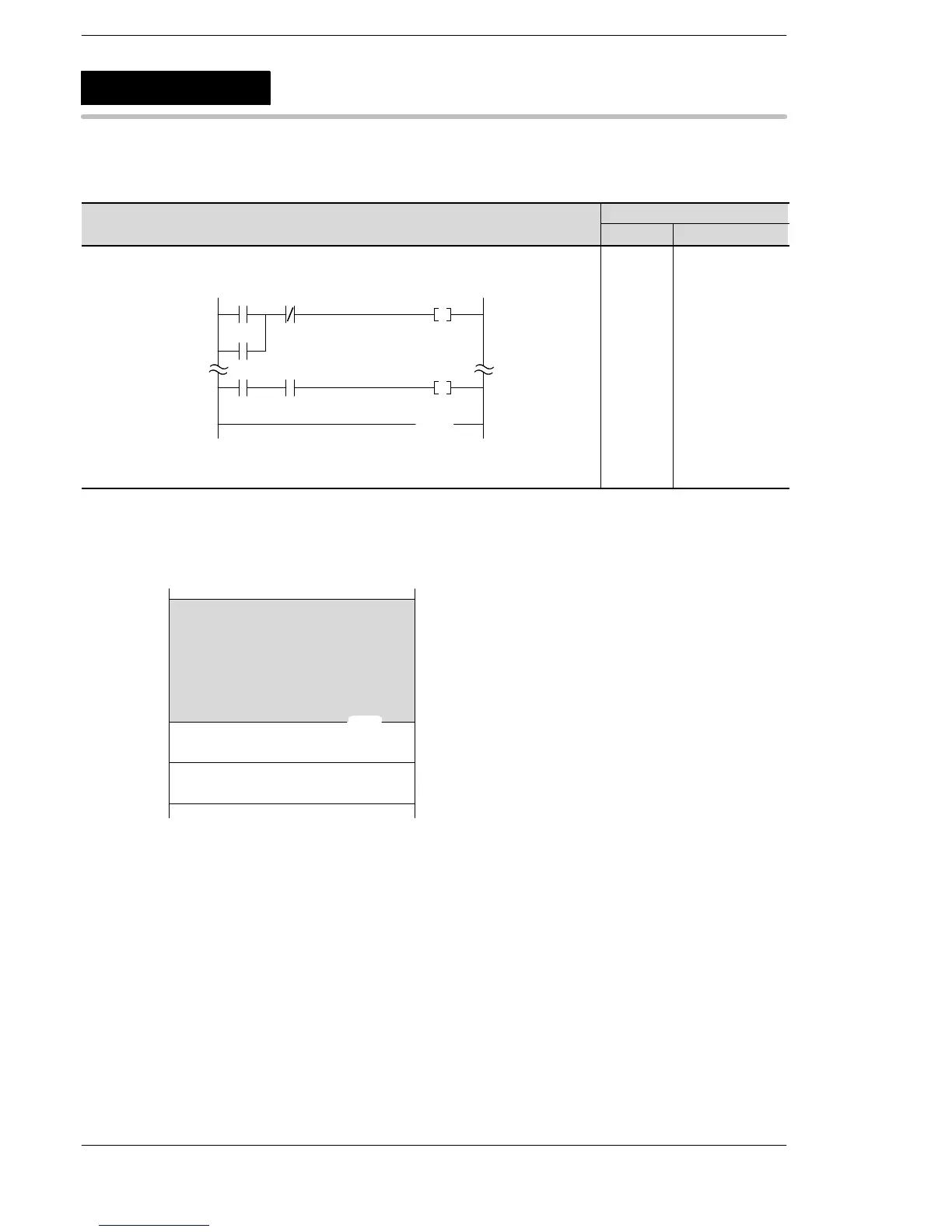

Program example
Ladder
Diagram
Boolean
Ladder Diagram
Address Instruction
0
X0
R0
R0X1
R0 Y30
96
X2
(ED )
99
0
1
2
3
96
97
98
99
....
ST X 0
OR R 0
AN/ X 1
OT R 0
ST R 0
AN X 2
OT Y 30
ED
....
Description
Indicates the end of the ordinary program.
0
Address
(ED )
Ordinary program
Subroutine program
Interrupt program
Program area
Program areas are divided into an ordinary program area (main program) and “subroutine” and “interrupt
program” areas (sub −programs) using this instruction.
Enter subroutine programs and interrupt programs after the ED instruction.
ED
End
