Panasonic FP-E - Page 316

High−level Instructions
3 − 52

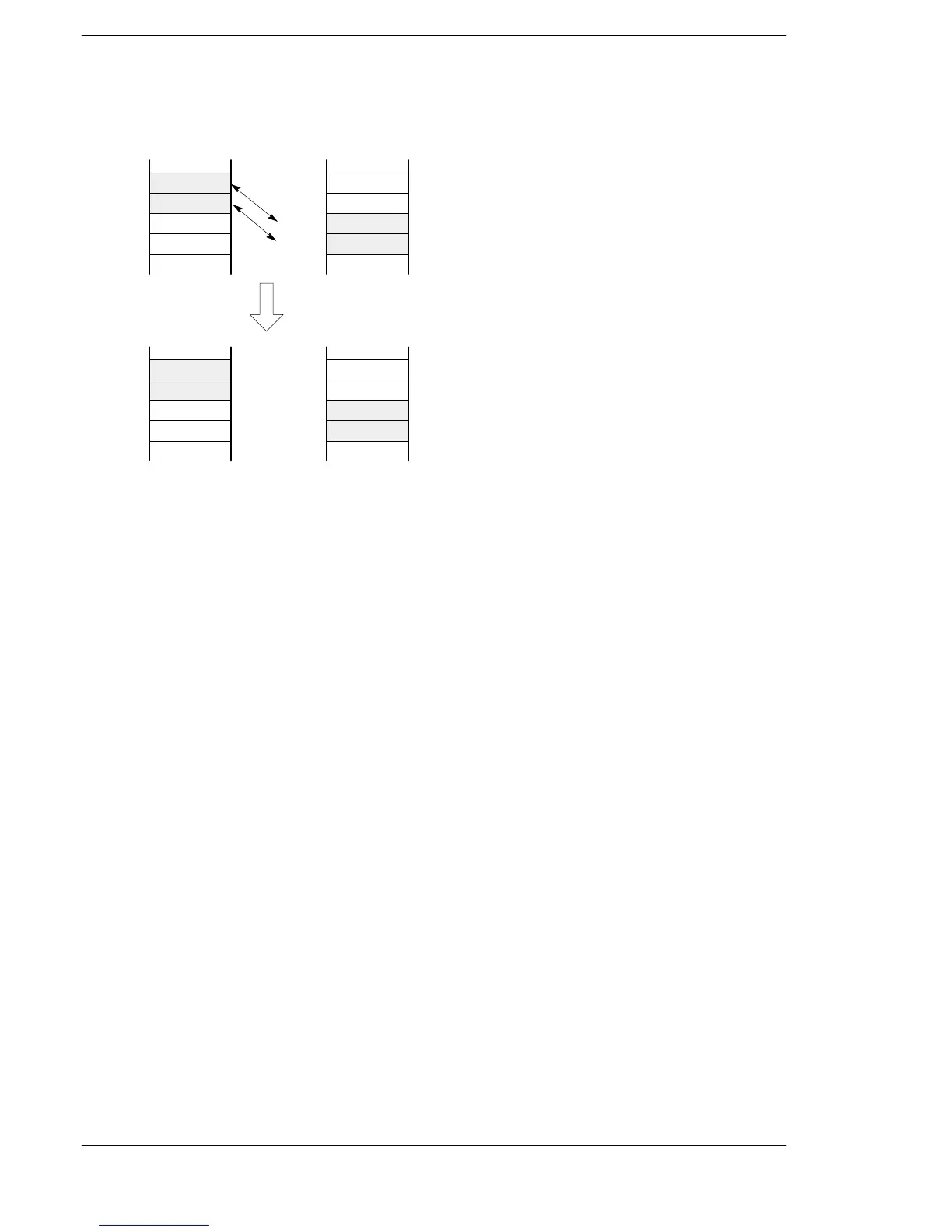

Explanation of example
The contents of data registers DT11 and DT10 and data registers DT23 and DT22 are exchanged when
trigger R0 turns on.
FFFD
DEF1
5678
0
25AC
[D1] DT10
DT11
DT12
DT13
1234
9ABC
DT20
DT21
DT22
DT23
R0: on “F16 (DXCH)” execution
DEF1
F23
5678
9ABC
25AC
[D1] DT10
DT11
DT12
DT13
1234
0
DT20
DT21
DT22
DT23
FFFD
F23
[D2]
[D2]
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
Description
The contents in the 32-bit areas specified by D1 and D2 are exchanged.
Flag conditions
・Error flag (R9007): Turns on and stays on when the area specified using the index modifier
exceeds the limit.
・Error flag (R9008): Turns on for an instant when the area specified using the index modifier
exceeds the limit.
