5
Wall
Switch Box
Upside snap joint bayonet
Downside snap
joint bayonet
Top cover
Base
1-1. Connect the wire
Draw out the control wire from the switch box, open the right back cover of the base, and connect the
wire as illustrated in the Wiring Diagram. For details, please refer to the following figure or the attached
Wiring Diagram. Finally, close the right back cover after checking that the wire is securely connected.
Control wire (Recommended
length: 90 mm - 110 mm.
If it is too long or too short,
it will make the installation harder.)
1-2. Disassemble the top cover
Note that the top cover is connected to the base
with a flexible flat cable .
Do not pull hard, or the cable may be become damaged.
Notice
Notice
1-4. Fix the top cover
Fix the top cover to the base, close the upside snap joint bayonet first and then the downside one,
as indicated by the arrow.
Do not press the LCD screen or
damage to the screen may occur.
While installing the top cover, please make
sure that the internal flexible flat cable is
not caught by the circuit board or resin.
In case the pinched sheath is broken, current
leakage may occur.
CAUTION
6 mm
Correct
Wrong
The core wires are not
fully inserted into the
terminals.
Wire Stripping & Connection Diagram
Screws
(Accessories)
Switch Box
Flexible flat cable
Top cover
Wall
Control
wire
Wall
Switch Box
Screws
(Accessories)
Base
1-3. Fix the base into the switch box
Check that the flexible flat cable is not loose, and put the base into the switch box. Pay attention to the
direction of the base (↑UP indicates upward).
Fix the base with the four supplied screws. Be careful not to over-tighten the screws because it could
cause damage or deformation to the resin shell.

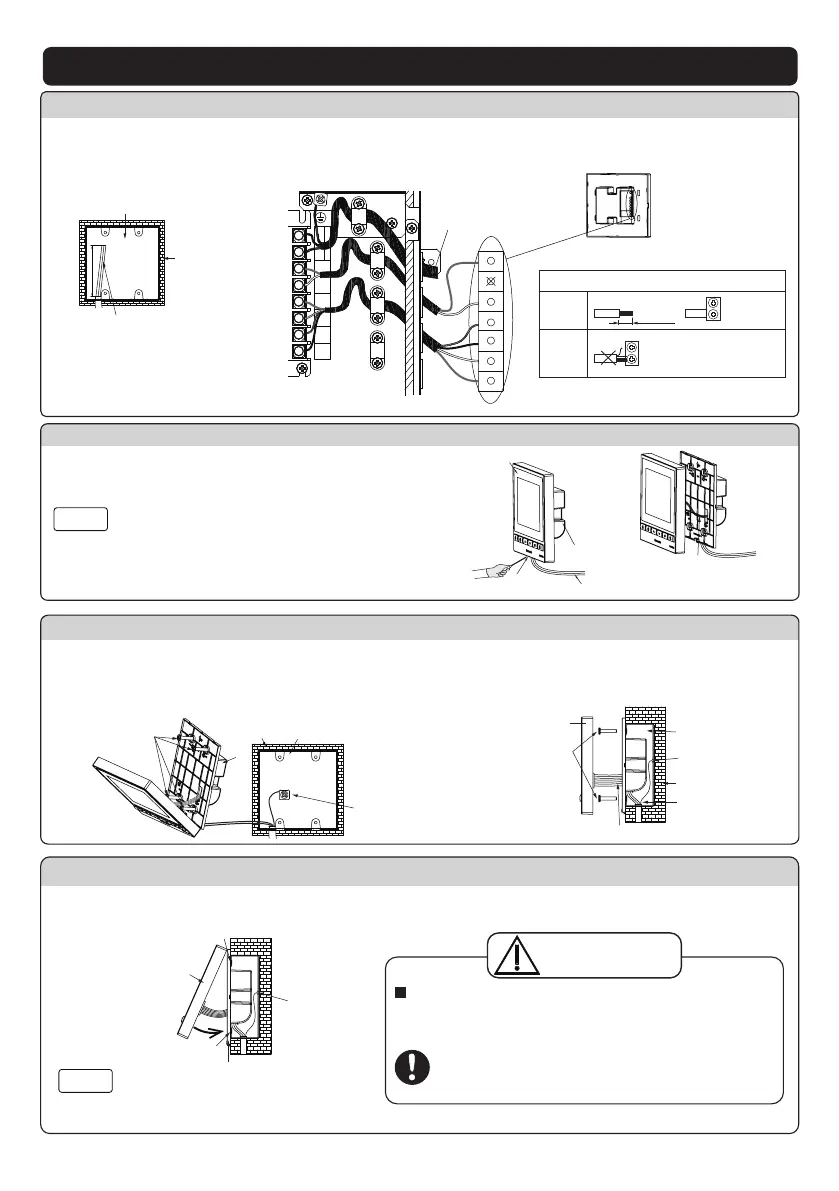

HOW TO INSTALL
Supplied power
220 V～ 50 Hz
Remote
Control
L
N
Com
Lo
D
Hi
源
COM
Damper
LO
HI
SW2
SW1
L
N
Power
Top cover
Base
Control wire
Groove
Flexible flat
cable
Insert a flat-head screwdriver into the groove as
shown in the following figure, pry off the top cover,
and remove gently.
Earth
terminal
Earth
terminal
Earth
terminal
To Next Page
