1.7.1 MELSEC-A (Computer Link) Series
CPU
Computer Link
module

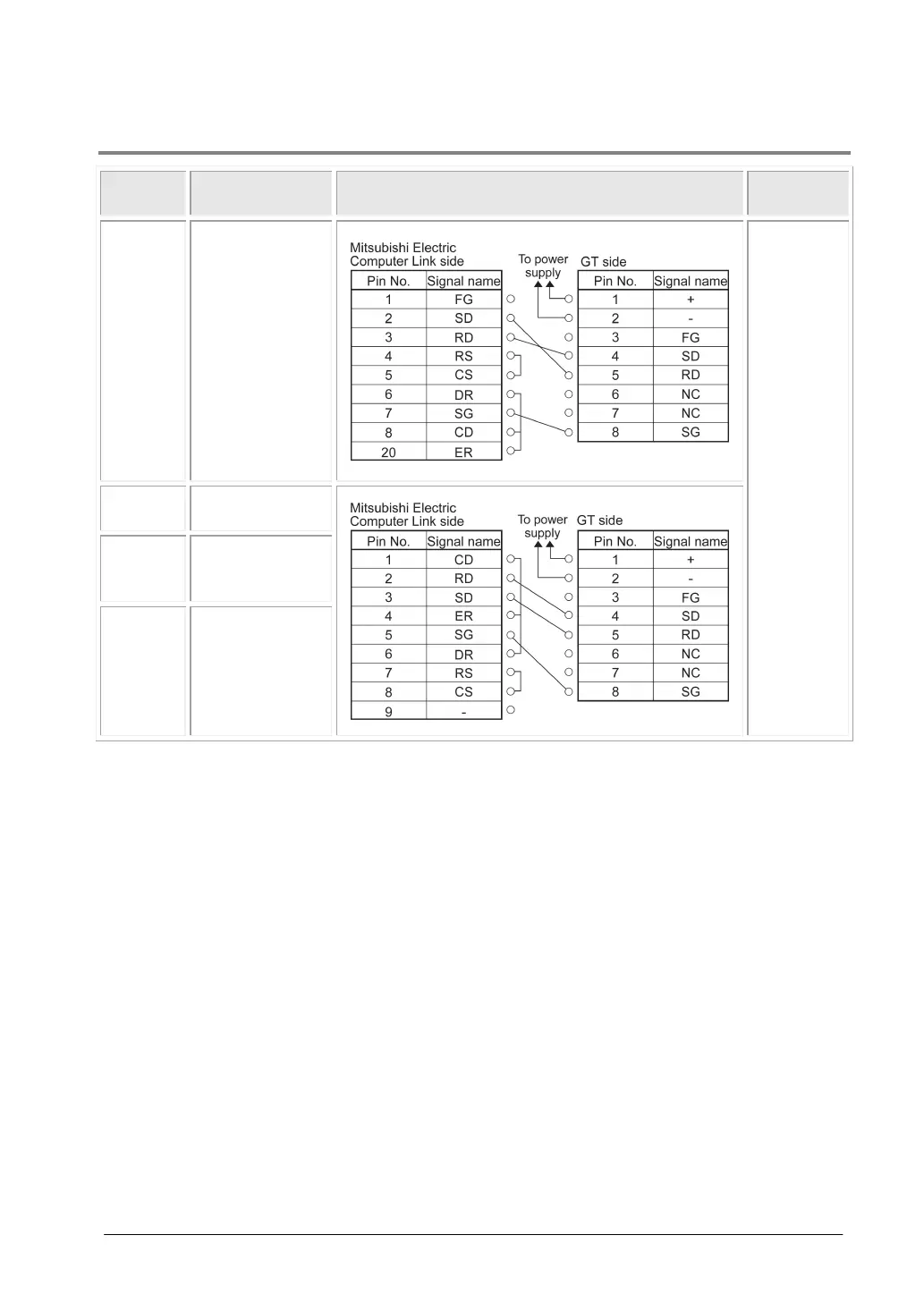

Wiring diagram GT Series
A1N
A2N
A3N
AJ71C24
AJ71C24
-S3
AJ71C24
-S6
AJ71C24
-S8
AJ71UC24
(Only A2N)
GT se
ries
RS232C
type
*1
A1S
A1SJ71C24
-R2
A1SJ71UC24-R2
A1SJ
A2SH
A1SH
A1SJ71UC24
-R2
A2CCPU24
RS232C port on
CPU unit
*1: Although nos.6 and 7 of the models except GT01 are RS/CS, they can be used in the above
connection.
