3.4. How to Define the Model Suffix (NTSC or PAL model)
There are seven kinds of HC-V10/V10M/V11M.
• a) HC-V10P
• b) HC-V10PC
• c) HC-V10EB/EC/EF/EG/EP/GN
• d) HC-V10EE
• e) HC-V10GK
• f) HC-V10GT
• g) HC-V10PU/GA/GC/GW, V10MPU, V11MPU
What is the difference is that the “INITIAL SETTING” data which is stored in Flash ROM mounted on Main P.C.B..
3.4.1. Defining methods:

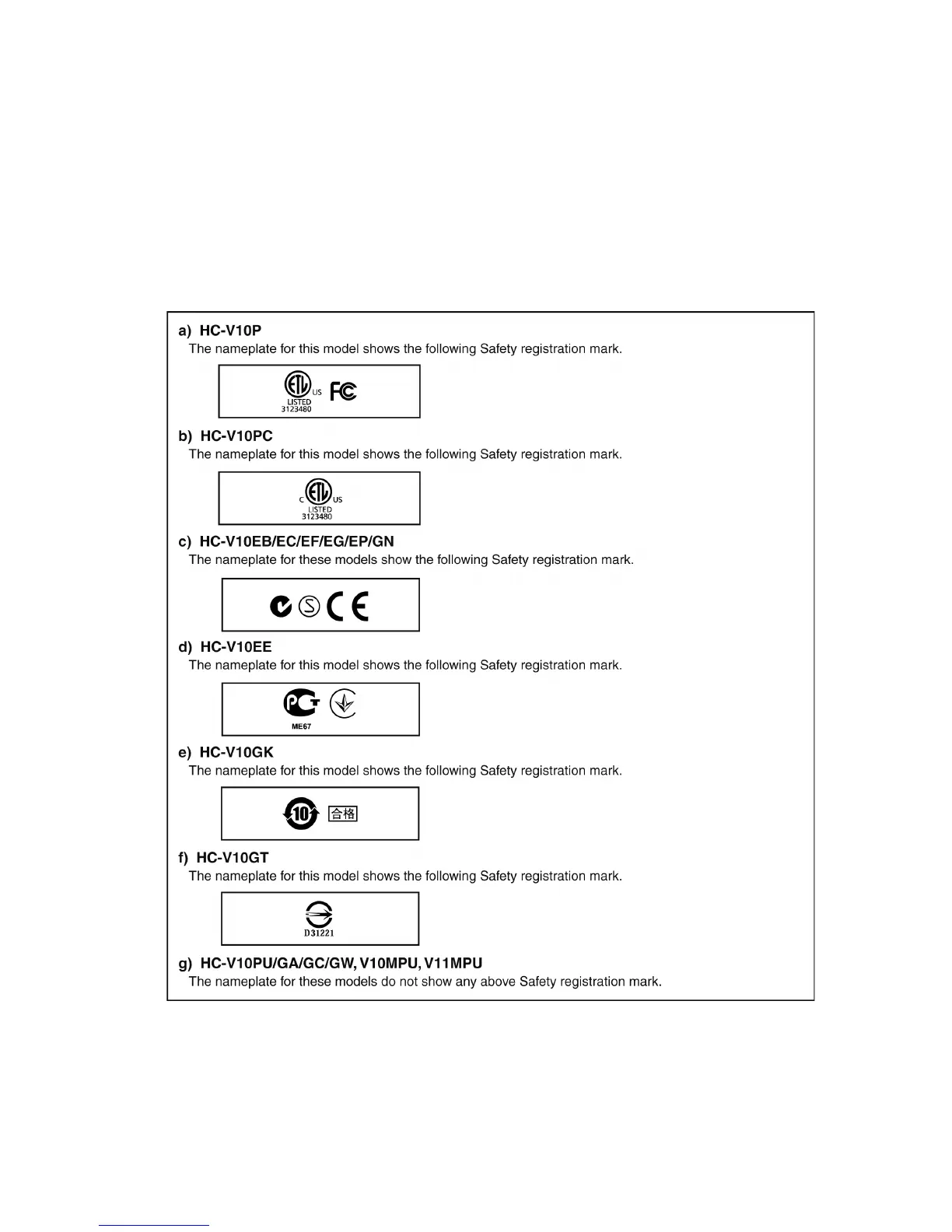

To define the model suffix to be serviced, refer to the rating label and caution label which are putted on the Unit.
NOTE:
After replacing the MAIN P.C.B., be sure to achieve adjustment.
The adjustment instruction is available at “software download” on the “Support Information from NWBG/VDBG-AVC” web-site in
“TSN system”, together with Maintenance software.
