3.4. How to Define the Model Suffix (NTSC or PAL model)
There are seven kinds of HC-V100/V100M.
• a) HC-V100M (Japan domestic model)
• b) HC-V100P, V100MP
• c) HC-V100PC, V100MPC
• d) HC-V100EB/EC/EF/EG/EP/GN
• e) HC-V100EE
• f) HC-V100GK, V100MGK
• g) HC-V100PU/GC/GW, V100MPU
What is the difference is that the “INITIAL SETTING” data which is stored in Flash ROM mounted on Main P.C.B..
3.4.1. Defining methods:

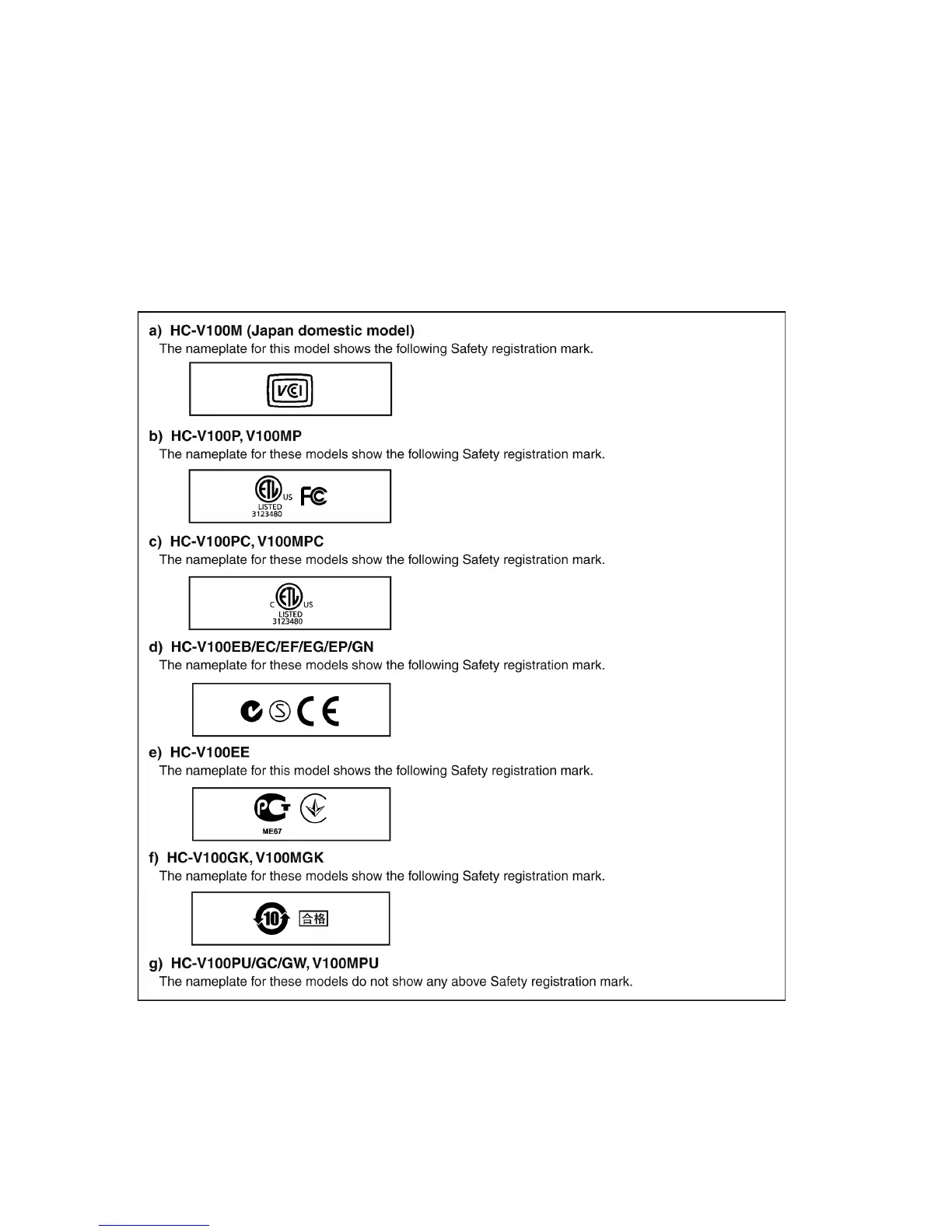

To define the model suffix to be serviced, refer to the rating label and caution label which are putted on the Unit.
NOTE:
After replacing the MAIN P.C.B., be sure to achieve adjustment.
The adjustment instruction is available at “software download” on the “Support Information from NWBG/VDBG-AVC” web-site in
“TSN system”, together with Maintenance software.
