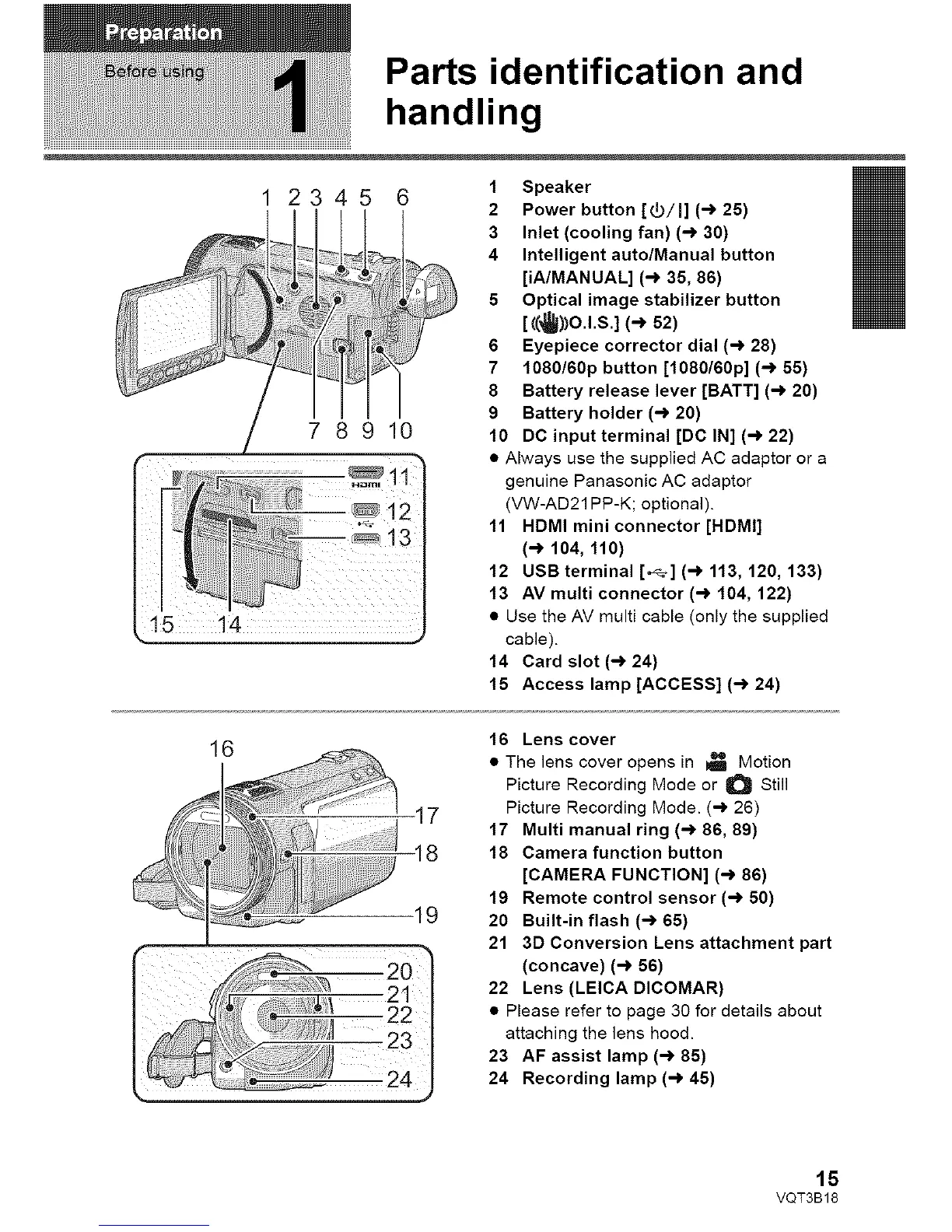

Parts identification and
handling
2345 6
8910
1 Speaker
2 Power button [_/I] (-) 25)
3 Inlet (cooling fan) (-) 30)
4 Intelligent auto/Manual button
[iA/MANUAL] (-) 35, 86)
5 Optical image stabilizer button
[((_))O.I.S.] (-) 52)
6 Eyepiece corrector dial (-) 28)
7 1080/60p button [1080/60p] (-) 55)
8 Battery release lever [BATT] (-) 20)
9 Battery holder (-) 20)
10 DC input terminal [DC IN] (-) 22)
• Always use the supplied AC adaptor or a
genuine Panasonic AC adaptor
(VW-AD21 PP-K; optional).
11 HDMI mini connector [HDMI]
(-) 104, 110)
12 USBterminal [_] (-) 113, 120, 133)
13 AV multi connector (-) 104, 122)
• Use the AV multi cable (only the supplied
cable).
14 Card slot (-) 24)
15 Access lamp [ACCESS] (-) 24)
16
19
16 Lens cover
• The lens cover opens in _ Motion
Picture Recording Mode or O Still
Picture Recording Mode. (-) 26)
17 Multi manual ring (-) 86, 89)
18 Camera function button
[CAMERA FUNCTION] (-) 86)
19 Remote control sensor (-) 50)
20 Built-in flash (-) 65)
21 3D Conversion Lens attachment part
(concave) (-) 56)
22 Lens (LEICA DICOMAR)
• Please refer to page 30 for details about
attaching the lens hood.
23 AF assist lamp (-) 85)
24 Recording lamp (-) 45)
15
VQT3B18
