Panasonic JU-475-4

PART. II

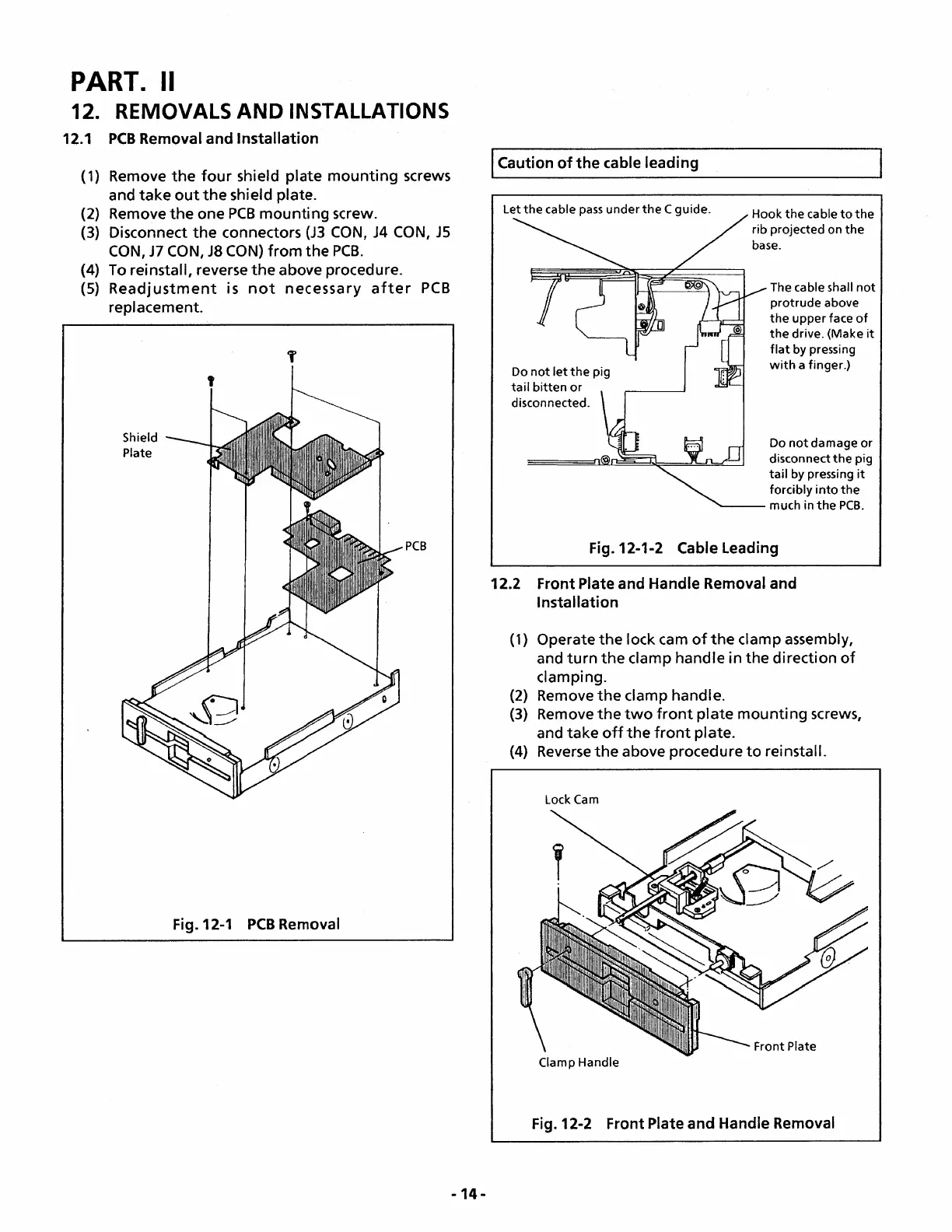

12. REMOVALS AND INSTALLATIONS
Lock Cam
Fig.12-1-2 Cable Leading
The cable shall not
protrude above
the upperface of
the drive. (Make it
flat by pressing
with a finger.)
Hook
the cable to the
rib projected on the
base.
Do
not damage or
disconnect the pig
tail by pressing it
forcibly into the
'---- much in the PCB.
Do not let the pig
tail bitten or
disconnected.
(1) Operate the lock cam of the clamp assembly,
and
turn the clamp handle in the direction of
clamping.
(2) Remove the clamp handle.
(3) Remove the two front plate mounting screws,
and
take off the front plate.
(4) Reverse the above procedure to reinstall.
Let the cable pass under the Cguide.
12.2 Front Plate and Handle Removal and
Installation
ICaution of the cable leading
PCB
T
If
(1) Remove the four shield plate mounting screws
and
take out the shield plate.
(2) Remove
the one PCB mounting screw.
(3) Disconnect
the connectors (J3 CON, J4 CON, J5
CON, J7 CON, J8 CON) from the PCB.
(4) To reinstall, reverse the above procedure.
(5) Readjustment is not necessary after PCB
replacement.
12.1
PCB Removal and Installation
Fig. 12-1
PCB Removal
Clamp Handle
Fig.12-2 Front Plate and Handle Removal
-14-
