Panasonic JU-475-4

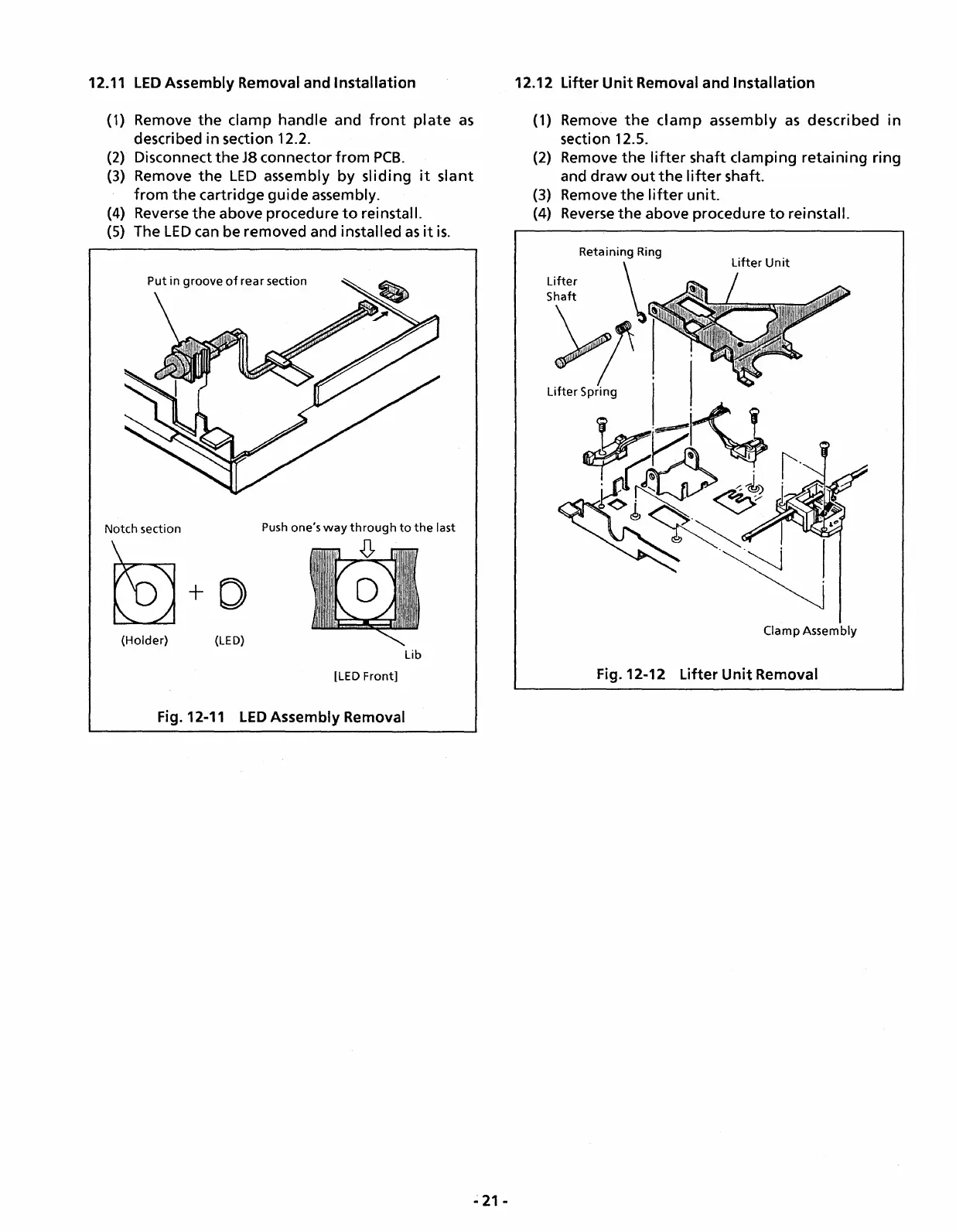

12.11 LED Assembly Removal and Installation
12.12 Lifter Unit Removal and Installation
(1) Remove the clamp handle and front plate as
described in section 12.2.
(2) Disconnect the J8 connector from PCB.
(3) Remove the LED assembly by sliding it slant
from the cartridge guide assembly.
(4) Reverse the above procedure to reinstall.
(S) The LED can be removed and installed as it is.
(1) Remove the clamp assembly as described in
section 12.5.
(2) Remove the lifter shaft clamping retaining ring
and
draw out the lifter shaft.
(3) Remove the lifter unit.
(4) Reverse the above procedure to reinstall.
Lifter Unit
Clamp Assembly
Retaining Ring
Lifter \
Shaft
... \
"yJ, I' "
lifter Spring I
~0~
rr~~
~~~
Notch section
~
+
D
(Holder) (LED)
Lib
[LED Front]
Fig.12-12 Lifter Unit Removal
Fig. 12-11
LED Assembly Removal
-
21 -
