KX-B620 Series
KX-B520 Series

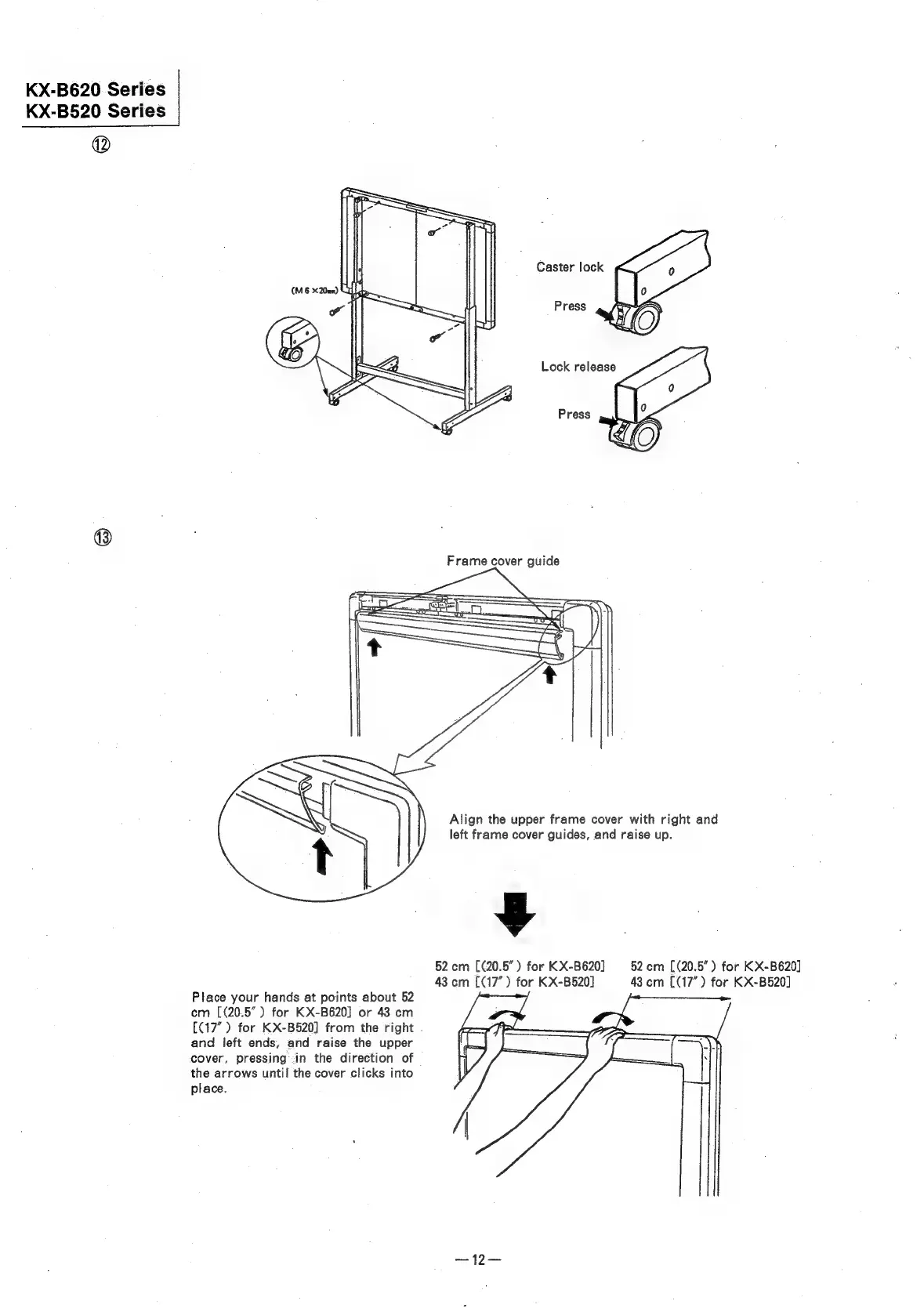

Frame cover guide
Align the upper frame cover with right and
left frame cover guides, and raise up.
¥
52 crn [(20.5”) for KX-B620] 52cm [(20.5") for KX-B620]
43 cm [(17") for KX-B520] 43 cm [(17") for KX-B520]
Place your hands at points about 52
cm [(20.5” ) for KX-B620] or 43 cm
[(17” ) for KX-B520] from the right .
and left ends, and raise the upper
cover, pressing’:in the direction of
the arrows until the cover clicks into
place.
