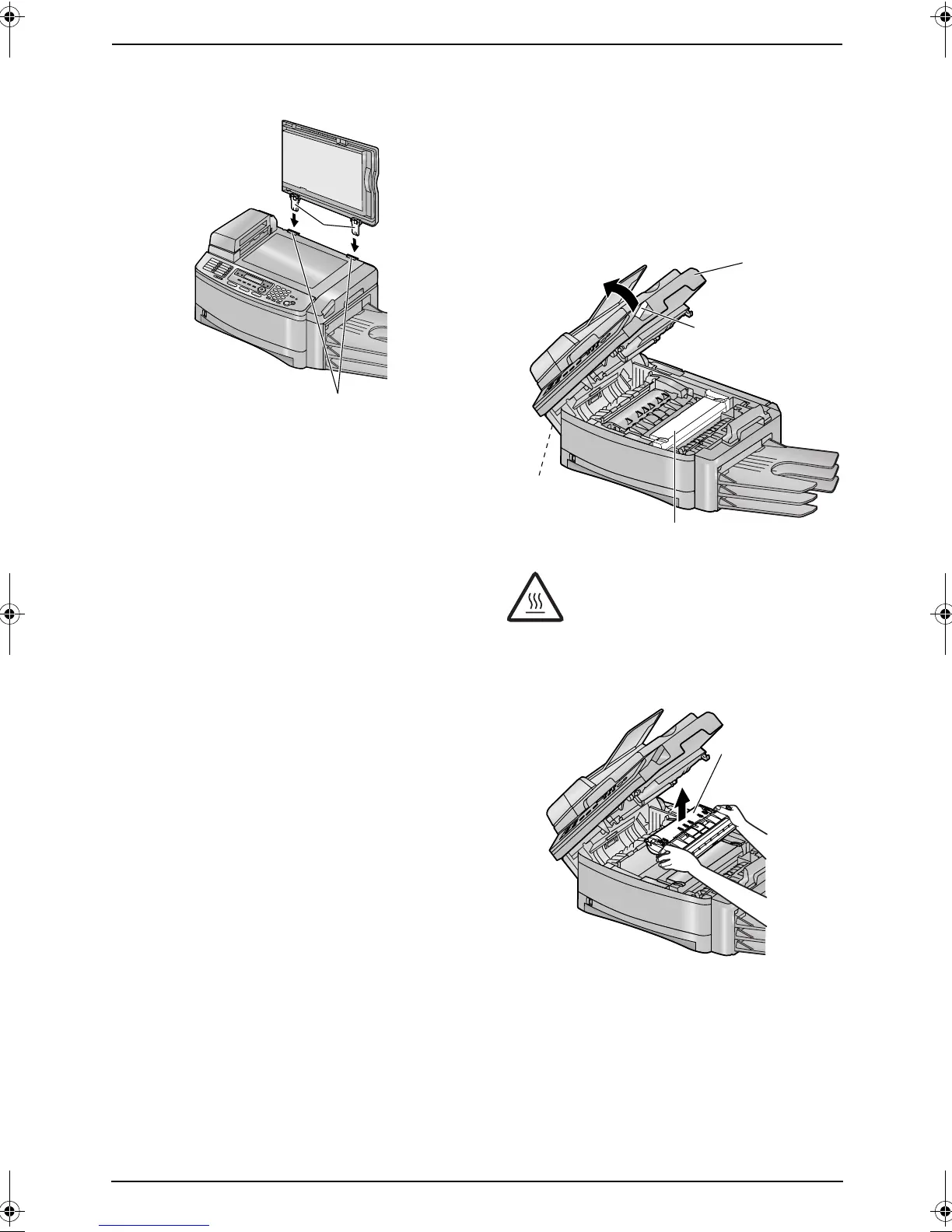

3. Insert the hinges (1) into the slots (2) on
the unit.
4. Close the document cover.
9.7.2 Lower glass
1 Turn the power switch OFF.
2 Lift the cover release lever (1) and open the
top cover (2).
Important:
L Close the multi-purpose input tray (3)
before opening the top cover.
3 Remove the drum and toner unit (1) by
holding the tabs.
1
2
Caution:
The fuser unit (4) gets hot. Do not
touch it.
1
2
4
3
1
