Panasonic KX-T7730CA - Page 20

20
KX-T7730CA

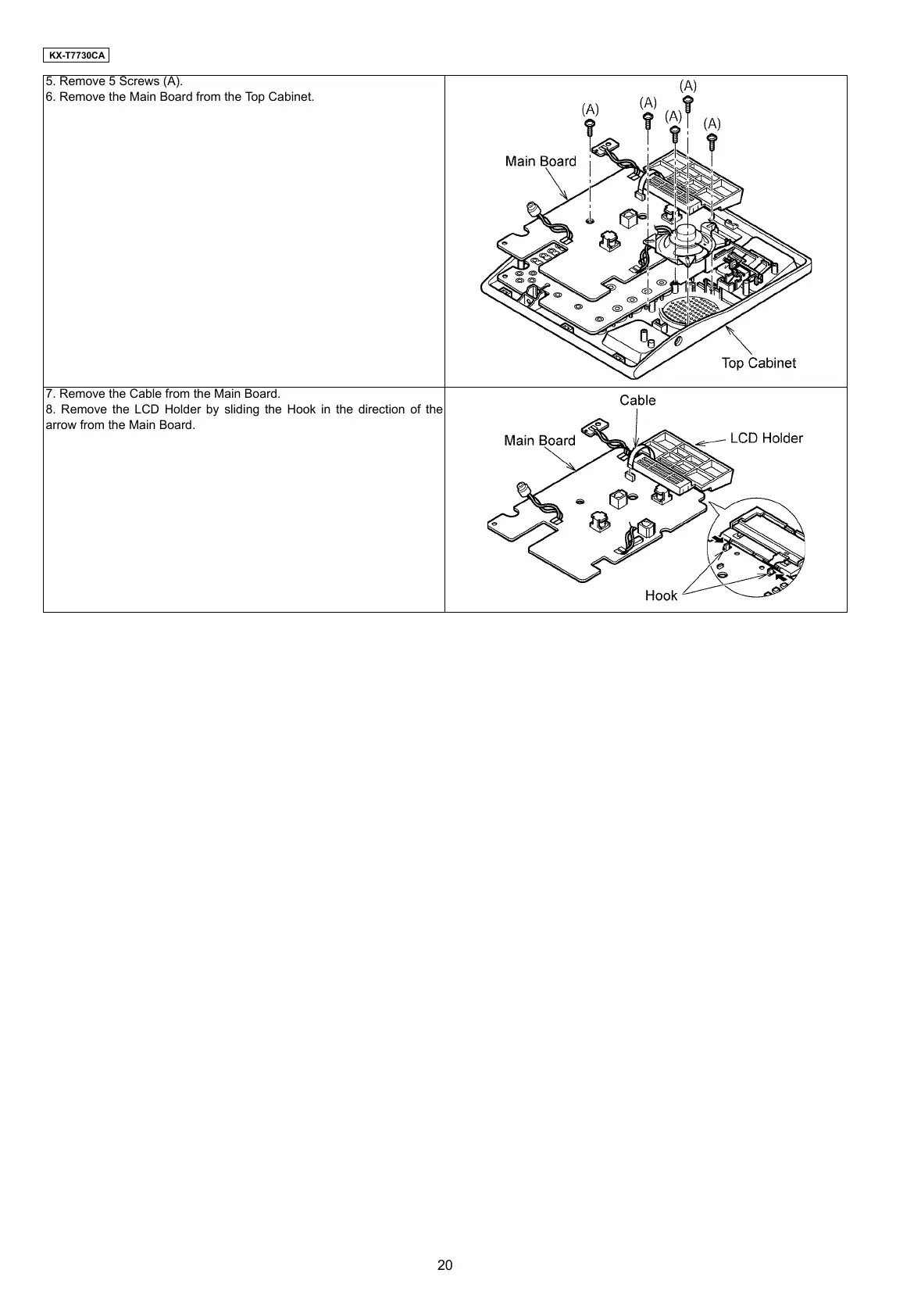

5. Remove 5 Screws (A).
6. Remove the Main Board from the Top Cabinet.
7. Remove the Cable from the Main Board.
8. Remove the LCD Holder by sliding the Hook in the direction of the
arrow from the Main Board.
