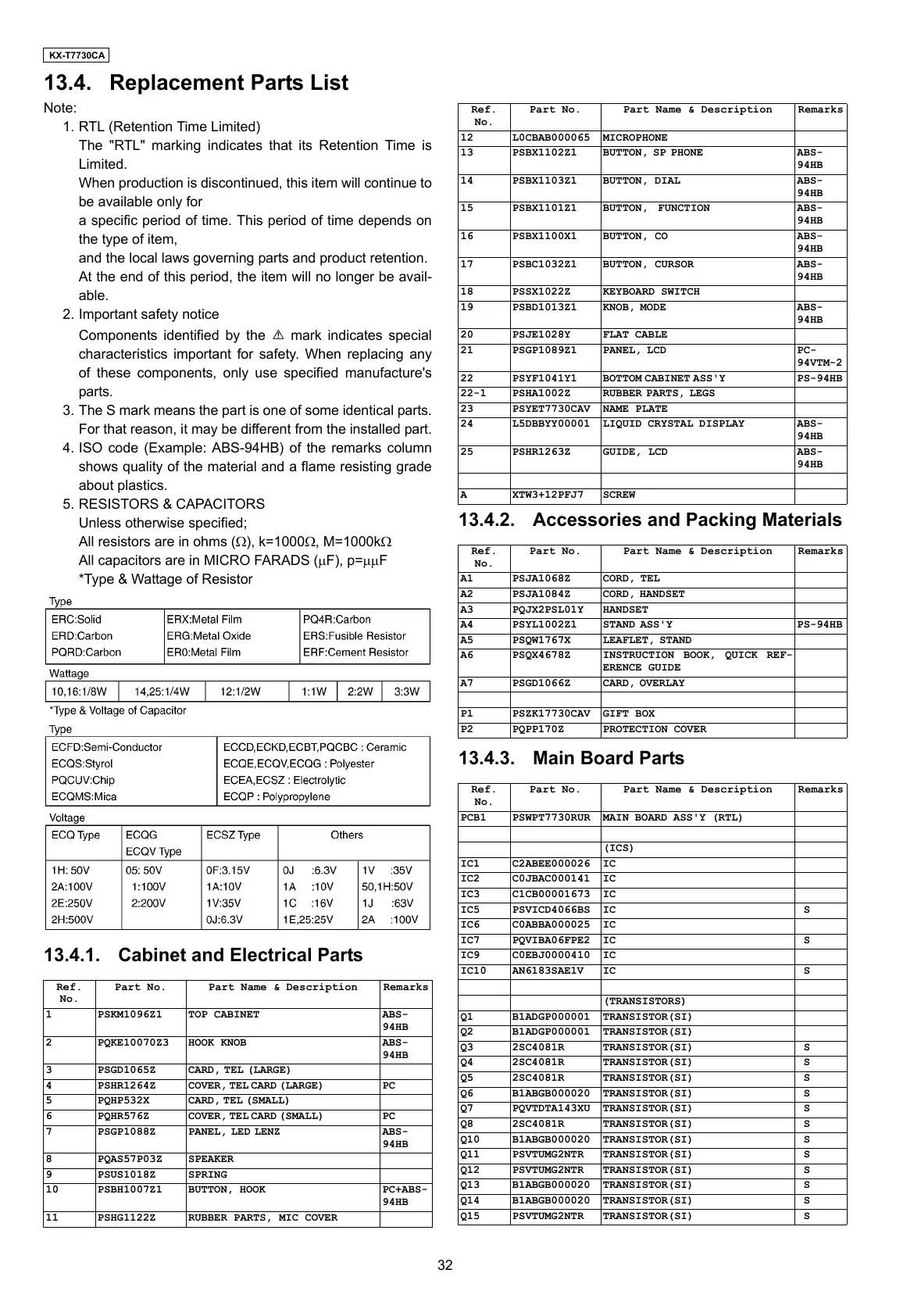

13.4. Replacement Parts List
Note:
1. RTL (Retention Time Limited)
The "RTL" marking indicates that its Retention Time is
Limited.
When production is discontinued, this item will continue to
be available only for
a specific period of time. This period of time depends on
the type of item,
and the local laws governing parts and product retention.
At the end of this period, the item will no longer be avail-
able.
2. Important safety notice
Components identified by the mark indicates special
characteristics important for safety. When replacing any
of these components, only use specified manufacture's
parts.
3. The S mark means the part is one of some identical parts.
For that reason, it may be different from the installed part.
4. ISO code (Example: ABS-94HB) of the remarks column
shows quality of the material and a flame resisting grade
about plastics.
5. RESISTORS & CAPACITORS
Unless otherwise specified;
All resistors are in ohms (Ω), k=1000Ω, M=1000kΩ
All capacitors are in MICRO FARADS (µF), p=µµF
*Type & Wattage of Resistor
13.4.1. Cabinet and Electrical Parts
13.4.2. Accessories and Packing Materials
13.4.3. Main Board Parts
Ref.
No.
Part No. Part Name & Description Remarks
1 PSKM1096Z1 TOP CABINET ABS-
94HB
2 PQKE10070Z3 HOOK KNOB ABS-
94HB
3 PSGD1065Z CARD, TEL (LARGE)
4 PSHR1264Z COVER, TEL CARD (LARGE) PC
5 PQHP532X CARD, TEL (SMALL)
6 PQHR576Z COVER, TEL CARD (SMALL) PC
7 PSGP1088Z P A N E L , L E D L E N Z A B S -
94HB
8 PQAS57P03Z SPEAKER
9 PSUS1018Z SPRING
10 PSBH1007Z1 BUTTON, HOOK PC+ABS-
94HB
11 PSHG1122Z RUBBER PARTS, MIC COVER
12 L0CBAB000065 MICROPHONE
13 PSBX1102Z1 BUTTON, SP PHONE ABS-
94HB
14 PSBX1103Z1 BUTTON, DIAL ABS-
94HB
15 PSBX1101Z1 BUTTON, FUNCTION ABS-
94HB
16 PSBX1100X1 BUTTON, CO ABS-
94HB
17 PSBC1032Z1 BUTTON, CURSOR ABS-
94HB
18 PSSX1022Z KEYBOARD SWITCH
19 PSBD1013Z1 KNOB, MODE ABS-
94HB
20 PSJE1028Y FLAT CABLE
21 PSGP1089Z1 P A N E L , L C D PC -
94VTM-2
22 PSYF1041Y1 BOTTOM CABINET ASS'Y PS-94HB
22-1 PSHA1002Z RUBBER PARTS, LEGS
23 PSYET7730CAV NAME PLATE
24 L5DBBYY00001 LIQUID CRYSTAL DISPLAY ABS-
94HB
25 PSHR1263Z GUIDE, LCD ABS-
94HB
A XTW3+12PFJ7 SCREW
Ref.
No.
Part No. Part Name & Description Remarks
A1 PSJA1068Z C O R D , T E L
A2 PSJA1084Z C O R D , H A N D S E T
A3 PQJX2PSL01Y HANDSET
A4 PSYL1002Z1 STAND ASS'Y PS-94HB
A5 PSQW1767X L E A F L E T , S T A N D
A6 PSQX4678Z INSTRUCTION BOOK, QUICK REF-
ERENCE GUIDE
A7 PSGD1066Z C A R D , O V E R L A Y
P1 PSZK17730CAV GIFT BOX
P2 PQPP170Z PROTECTION COVER
Ref.
No.
Part No. Part Name & Description Remarks
PCB1 PSWPT7730RUR MAIN BOARD ASS'Y (RTL)
(ICS)
IC1 C2ABEE000026 IC
IC2 C0JBAC000141 IC
IC3 C1CB00001673 IC
IC5 PSVICD4066BS IC S
IC6 C0ABBA000025 IC
IC7 PQVIBA06FPE2 IC S
IC9 C0EBJ0000410 IC
IC10 AN6183SAE1V IC S
(TRANSISTORS)
Q1 B1ADGP000001 TRANSISTOR(SI)
Q2 B1ADGP000001 TRANSISTOR(SI)
Q3 2SC4081R TRANSISTOR(SI) S
Q4 2SC4081R TRANSISTOR(SI) S
Q5 2SC4081R TRANSISTOR(SI) S
Q6 B1ABGB000020 TRANSISTOR(SI) S
Q7 PQVTDTA143XU TRANSISTOR(SI) S
Q8 2SC4081R TRANSISTOR(SI) S
Q10 B1ABGB000020 TRANSISTOR(SI) S
Q11 PSVTUMG2NTR TRANSISTOR(SI) S
Q12 PSVTUMG2NTR TRANSISTOR(SI) S
Q13 B1ABGB000020 TRANSISTOR(SI) S
Q14 B1ABGB000020 TRANSISTOR(SI) S
Q15 PSVTUMG2NTR TRANSISTOR(SI) S
Ref.
No.
Part No. Part Name & Description Remarks
To Next Page
