7
KX-T7730CA

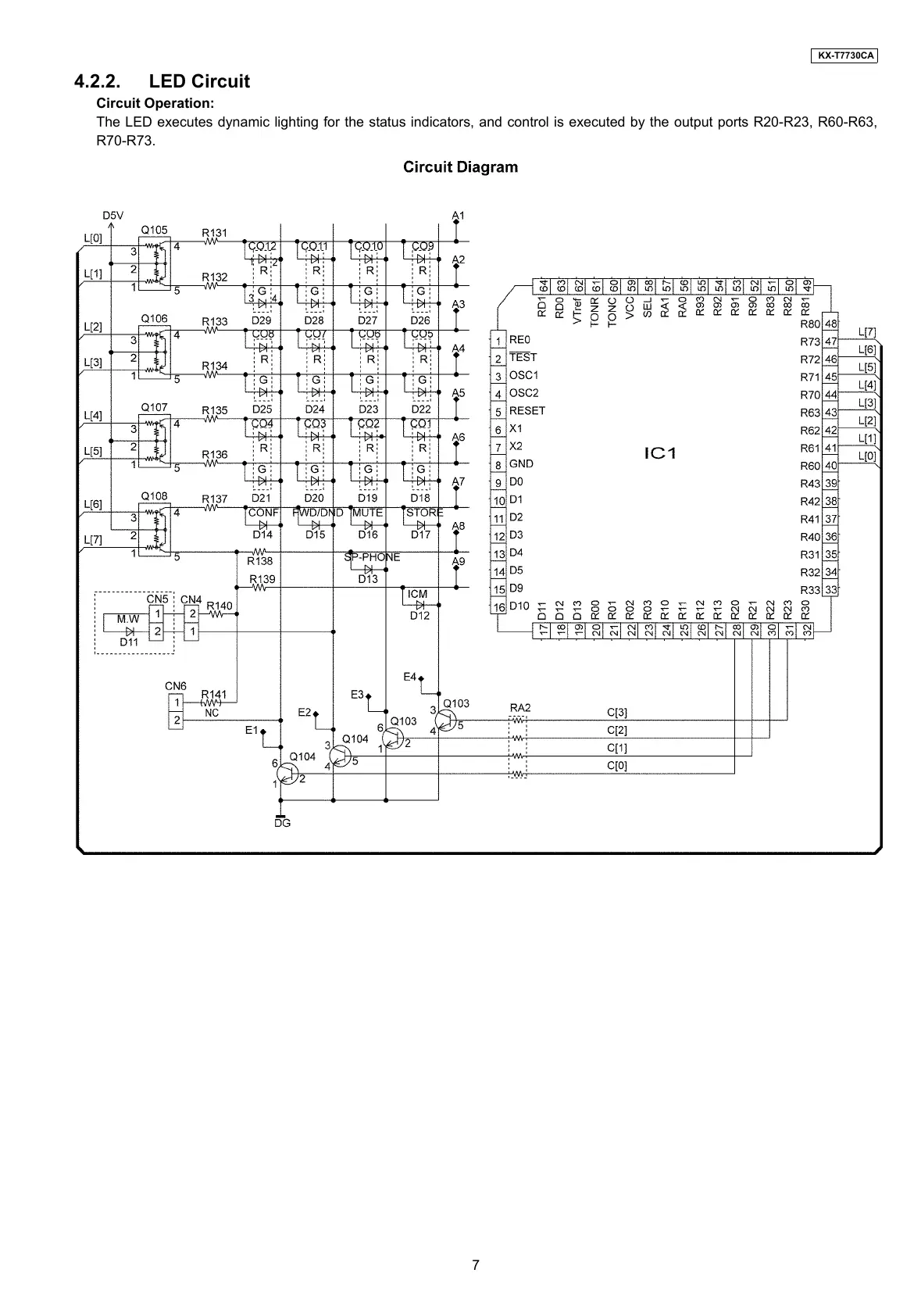

4.2.2. LED Circuit
Circuit Operation:
The LED executes dynamic lighting for the status indicators, and control is executed by the output ports R20-R23, R60-R63,
R70-R73.
