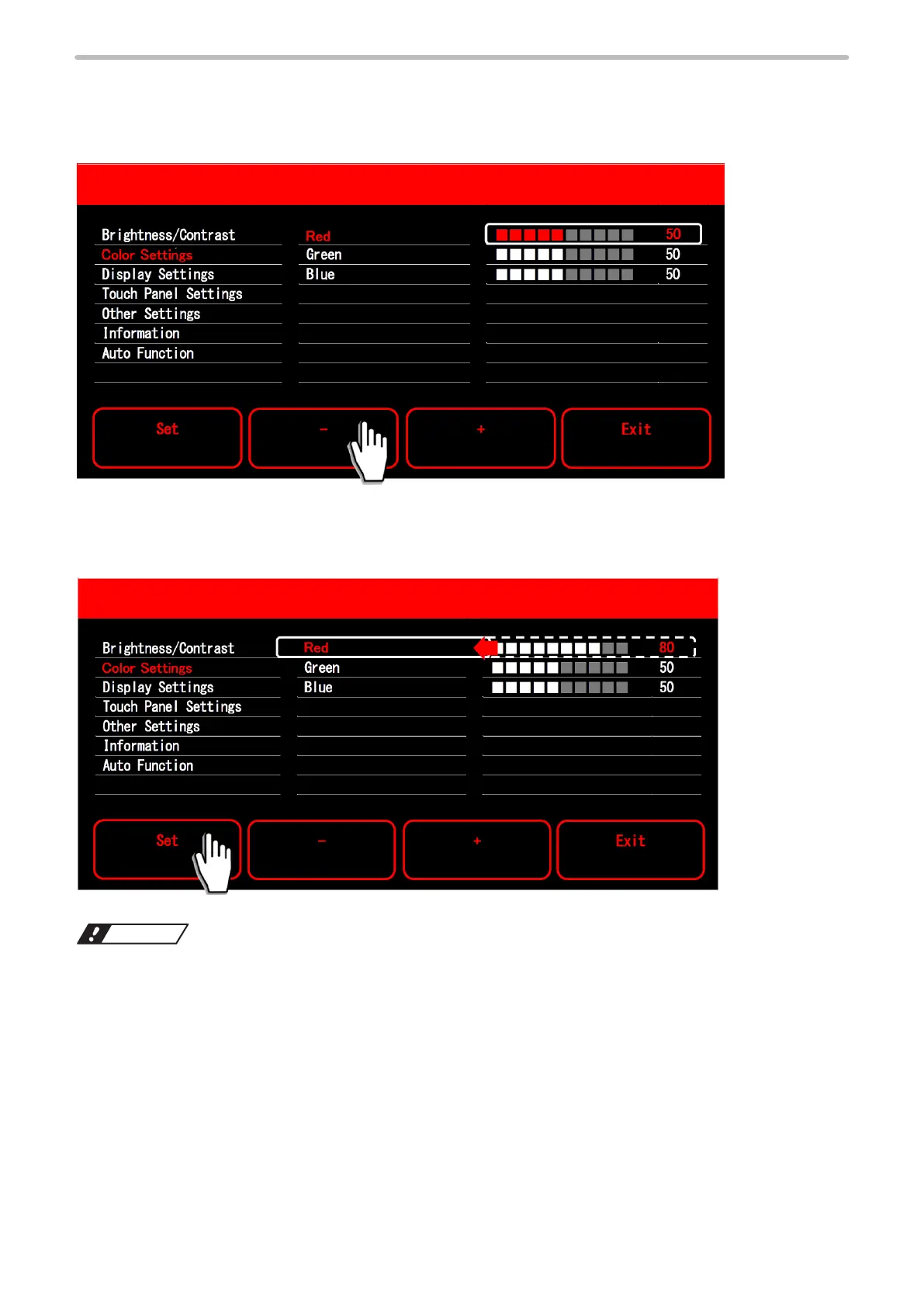

Change the setting value
When the cursor is on the setting value area on the right side, touching the “-” button once decreases the setting value by
one.
Touching the “+” button once increases the setting value by one.
⿎
Confirm the change of the setting value
If you touch “Set” after changing the setting value, the setting value is confirmed and the cursor returns to the left side item.
• The value on the touch panel itself has not been updated when the above “Confirm the change of the setting value”
operation is performed. If you change the adjustment value, perform the operation of “Terminate the screen adjustment”
( P. 19). If you touch “Exit” while the cursor is in the menu item area, the setting value is saved and the screen returns
to the setting screen for the laser maker/laser welding machine. Also when the time set in “OSD Timeout” expires, setting
value is saved and the screen returns to the setting screen for the laser maker/laser welding machine.
