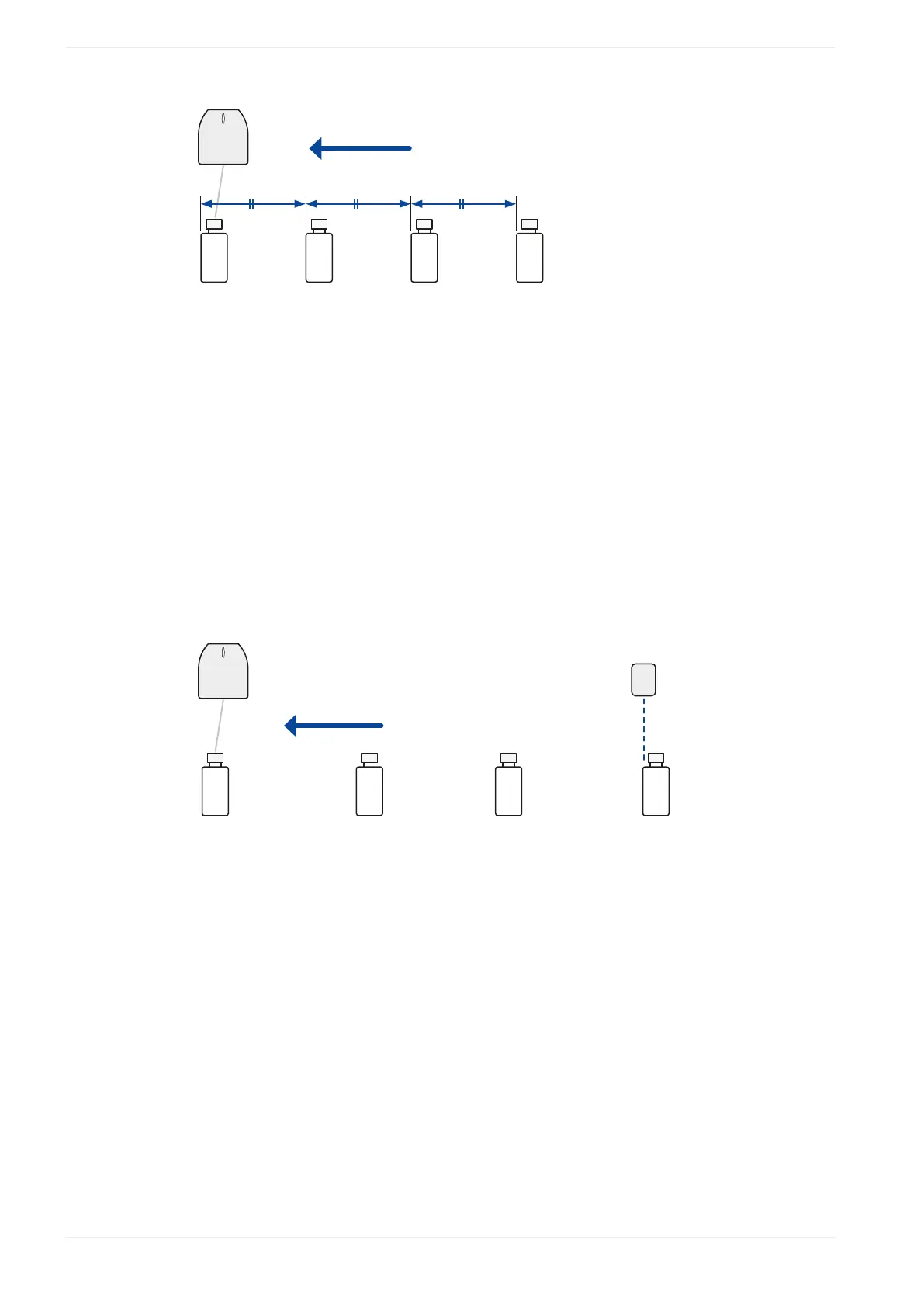

23 On-the-fly marking
(1)
(2)
(3)
(1)
Workpiece
(2)
Moving direction
(3)
“Workpiece spacing [mm]”: Distance between workpieces
“Multiple triggers”
In the trigger mode “Multiple triggers” for on-the-fly marking, multiple triggers are accepted in
advance.
A maximum of 16 triggers can be accepted while the trigger processing output
PROCESSING OUT (Y10) is ON.
Set this trigger mode if the distance between the trigger detecting position and the preset
marking position is so large, that it will be necessary to input the next marking trigger during
the previous lasing process.
(1)
(2)
(3)
(4)
(1)
Workpiece
(2)
Moving direction
(3)
Next workpiece
(4)
Trigger sensor
Related topics
On-the-fly marking settings for all files (page 241)
