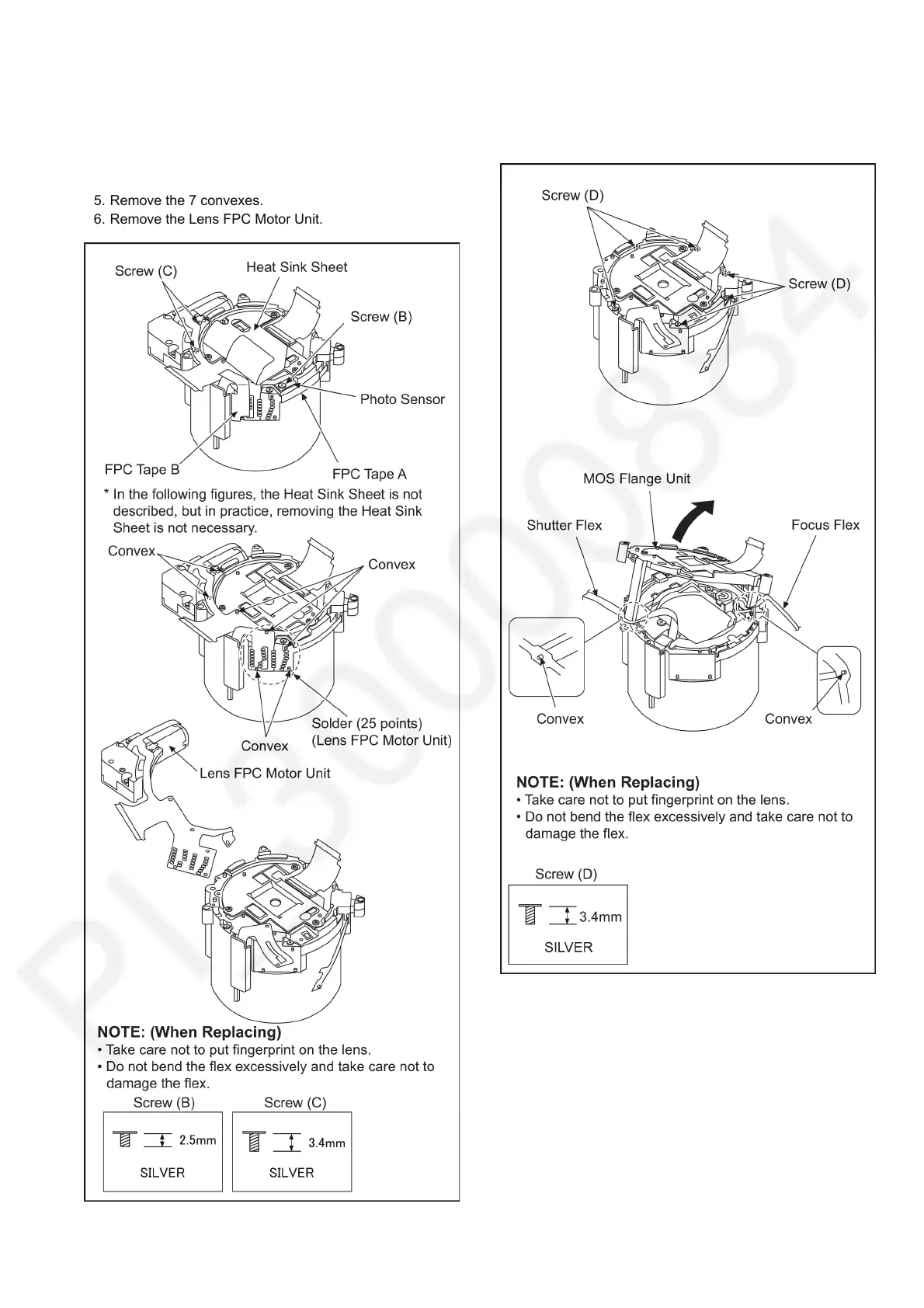

9.4.2. Removal of the Lens FPC motor
Unit
1. Peel the FPC Tape A and FPC Tape B.
2. Unscrew the screw (B) and remove the Photo Sensor.
3. Unscrew the 2 screws (C).
4. Unsolder the 25 soldering points.
5. Remove the 7 convexes.
6. Remove the Lens FPC Motor Unit.
9.4.3. Removal of the MOS Flange Unit
1. Unscrew the 6 screws (D).
2. Remove the 2 convexes.
3. Remove the MOS Flange unit.
