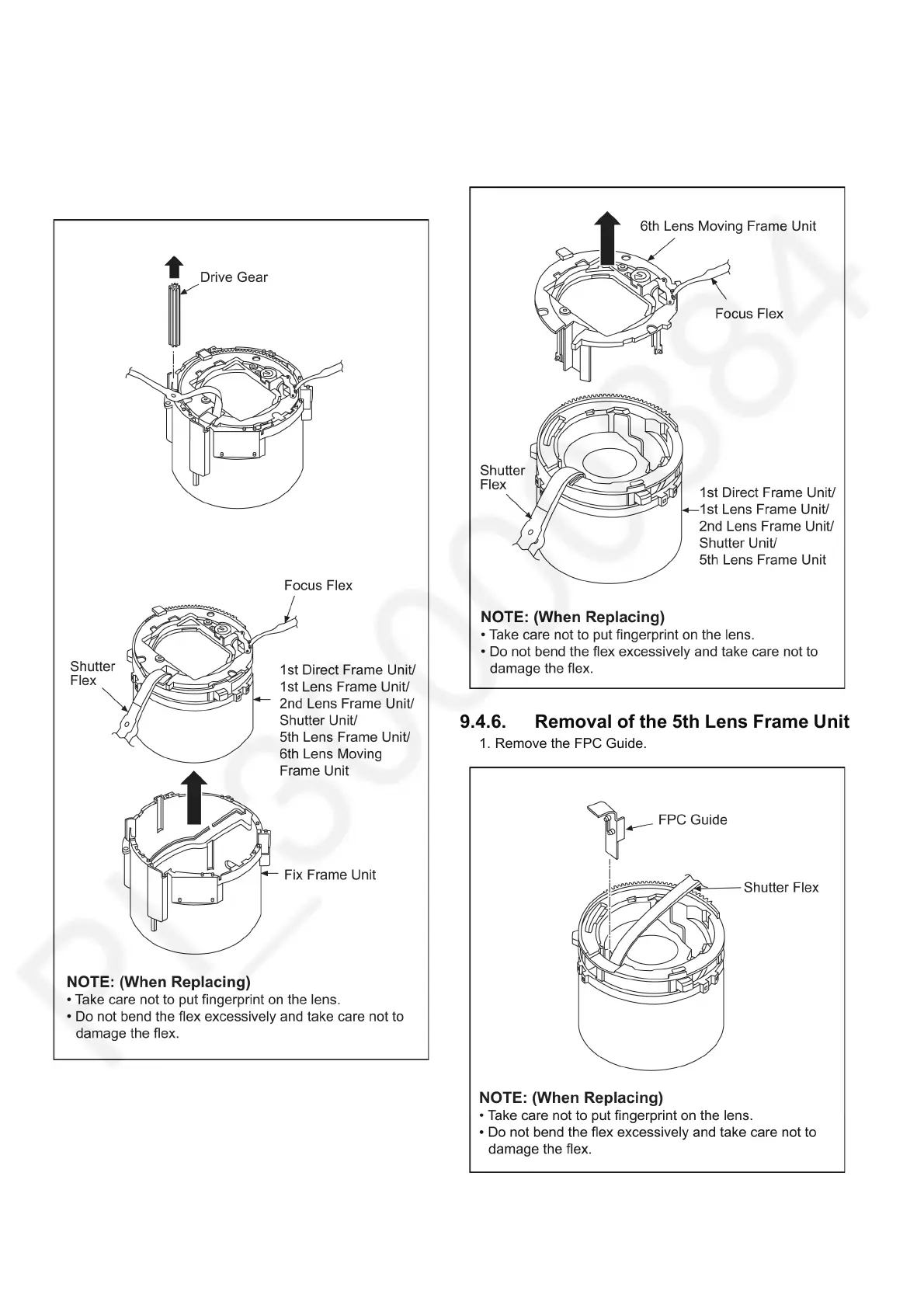

9.4.4. Removal of the Fix Frame Unit
1. Remove the Drive Gear.
2. Push the 1st Lens Frame Unit from the lens front side in
direction of arrow, and then remove the 1st Direct Frame
Unit/ 1st Lens Frame Unit/ 2nd Lens Frame Unit/ Shutter
Unit/ 5th Lens Frame Unit/ 6th Lens Moving Frame Unit
from the Fix Frame Unit.
9.4.5. Removal of the 6th Lens Moving
Frame Unit
1. Remove the 6th Lens Moving Frame Unit from the unit of
1st Direct Frame Unit/ 1st Lens Frame Unit/ 2nd Lens
Frame Unit/ Shutter Unit/ 5th Lens Frame Unit.
9.4.6. Removal of the 5th Lens Frame Unit
1. Remove the FPC Guide.
