43

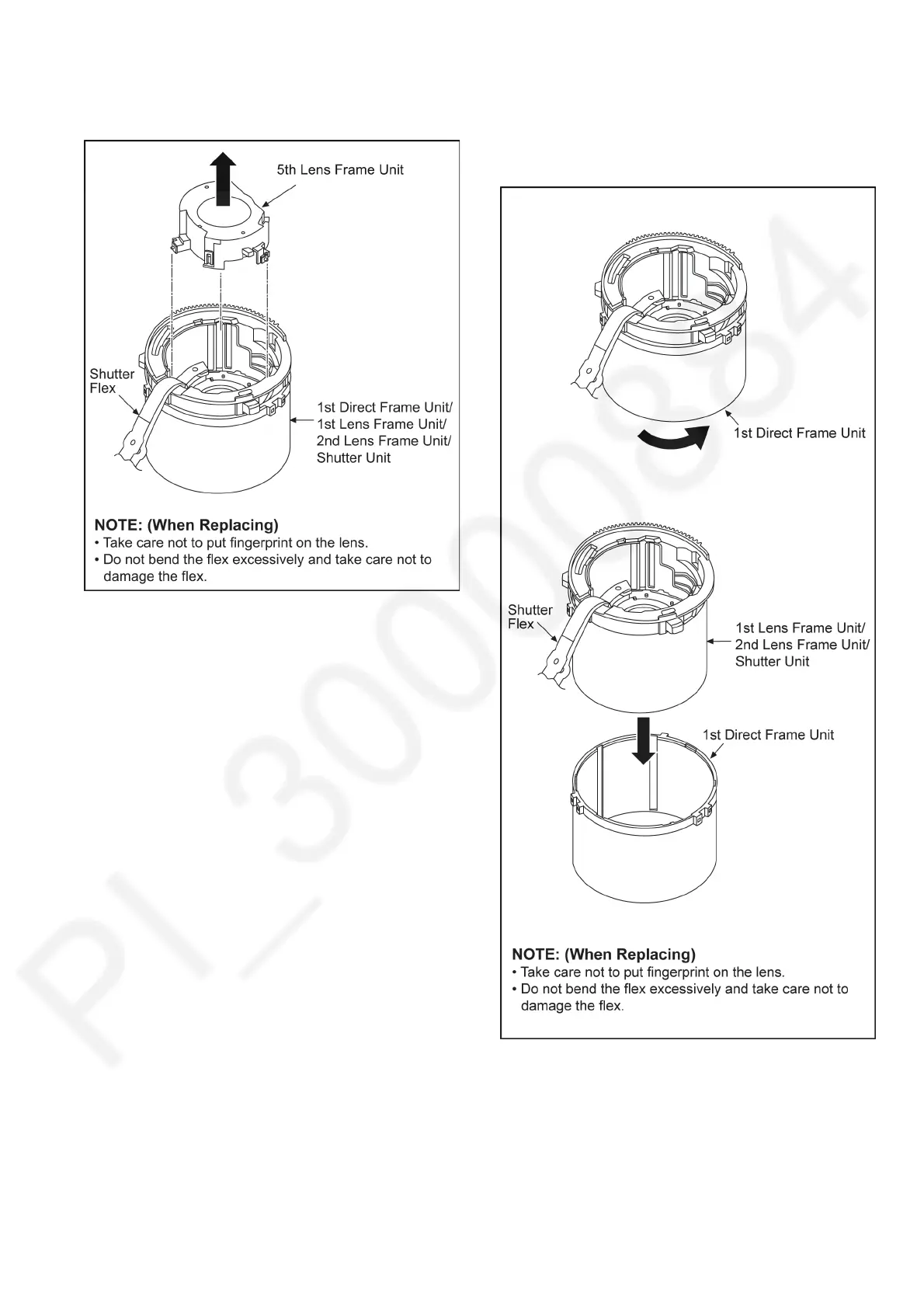

2. Remove the 5th Lens Frame Unit from the unit of 1st
Direct Frame Unit/ 1st Lens Frame Unit/ 2nd Lens Frame
Unit/ Shutter Unit.
9.4.7. Removal of the 1st Direct Frame
Unit
1. Turn the 1st Direct Frame Unit in direction of arrow fully.
2. Remove the 1st Direct Frame Unit from the unit of 1st
Lens Frame Unit/ 2nd Lens Frame Unit/ Shutter Unit.
