Connecting to other equipment
- 108 -
[Playback] Mode: ¸
Playing Back Pictures on a TV Screen
Preparations:
Set the [TV Aspect]. (P39)
Turn this unit and the TV off.

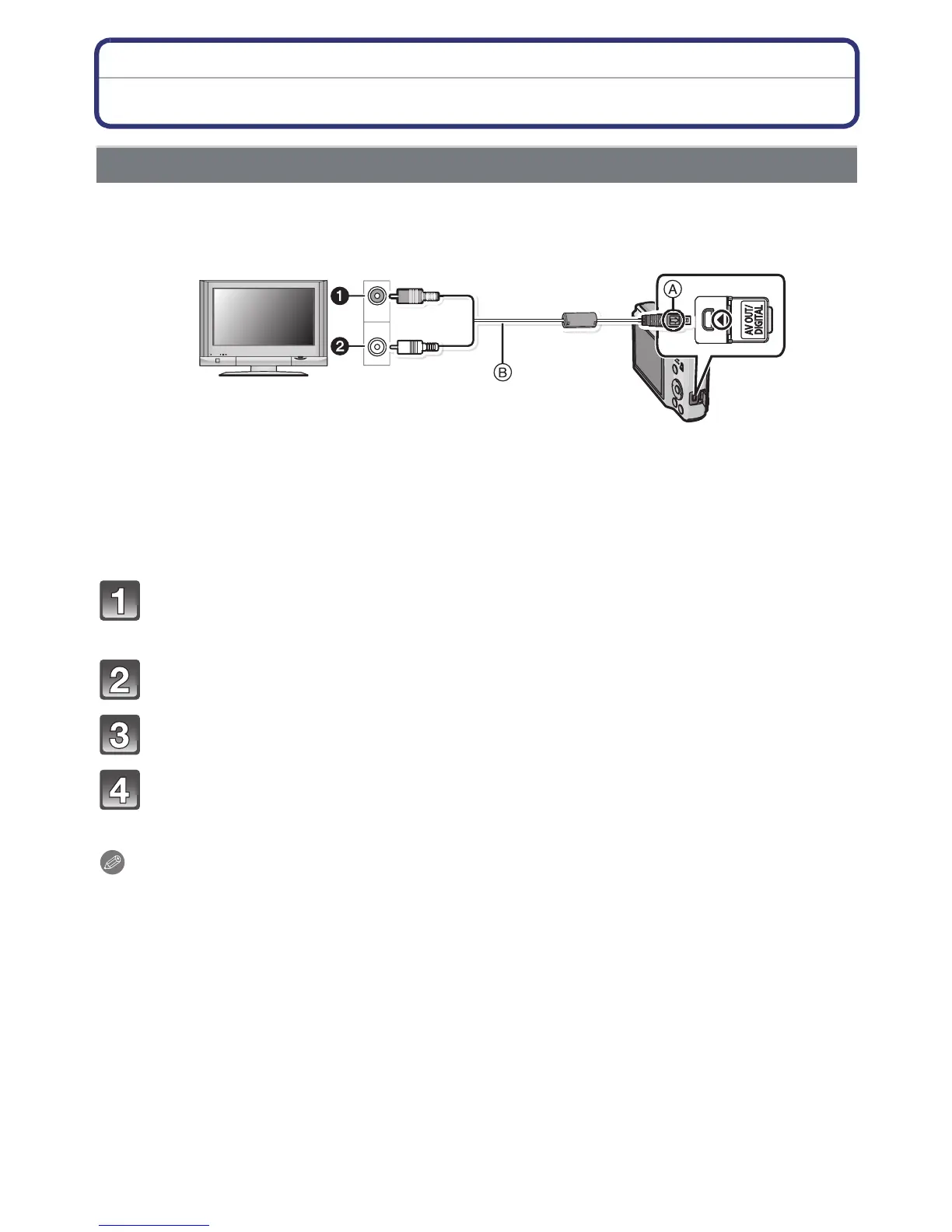

1 Yellow: to the video input socket
2 White: to the audio input socket
A Align the marks, and insert.
B AV cable (supplied)
• Check the directions of the connectors, and plug them straight in or unplug them straight out.
(Otherwise the connectors may be bent out of shape which will cause a malfunction.)
Connect the AV cable
(supplied)
to the video input and the audio input
sockets on the TV.
Connect the AV cable to the [AV OUT] socket on the camera.
Turn the TV on and select external input.
Turn the camera on and then slide the [Rec]/[Playback] selector
switch to [(].
Note
• Depending on the [Picture Size], black bands may be displayed on the top and bottom or the
left and right of the pictures.
• Do not use any other AV cables except the supplied one.
• Read the operating instructions for the TV.
• When you play back a picture vertically, it may be blurry.
• You can view pictures on TVs in other countries (regions) which use the NTSC or PAL system
when you set [Video Out] in the [Setup] menu.
• Change the screen mode on your TV if the picture is displayed with the top or bottom cut off.
Playing back pictures using the AV cable (supplied)
