Connecting to other equipment
- 105 -
Playing Back Pictures on a TV Screen
Playback Mode:
9
Playing back pictures using the AV cable
Preparations:
Set the [TV ASPECT]. (P
27)
Turn this unit and the TV off.
• Do not use any other AV cables except the supplied one. (Only for DMC-FS42PU/
DMC-FS4PU/DMC-FS42PR/DMC-FS4PR/DMC-FS42GC/DMC-FS4GC/DMC-FS42GJ/
DMC-FS4GJ)
• Do not use any other cables except a genuine Panasonic AV cable (DMW-AVC1:
optional). (Only for DMC-FS42P/DMC-FS4P/DMC-FS42PC/DMC-FS4PC/DMC-FS42EF/
DMC-FS4EF/DMC-FS42EB/DMC-FS4EB/DMC-FS42GN/DMC-FS4GN)
B
1
2
A
AV OUT
DIGITAL
1
Yellow: to the video input socket
2
White: to the audio input socket
A
Align the marks, and insert.
B

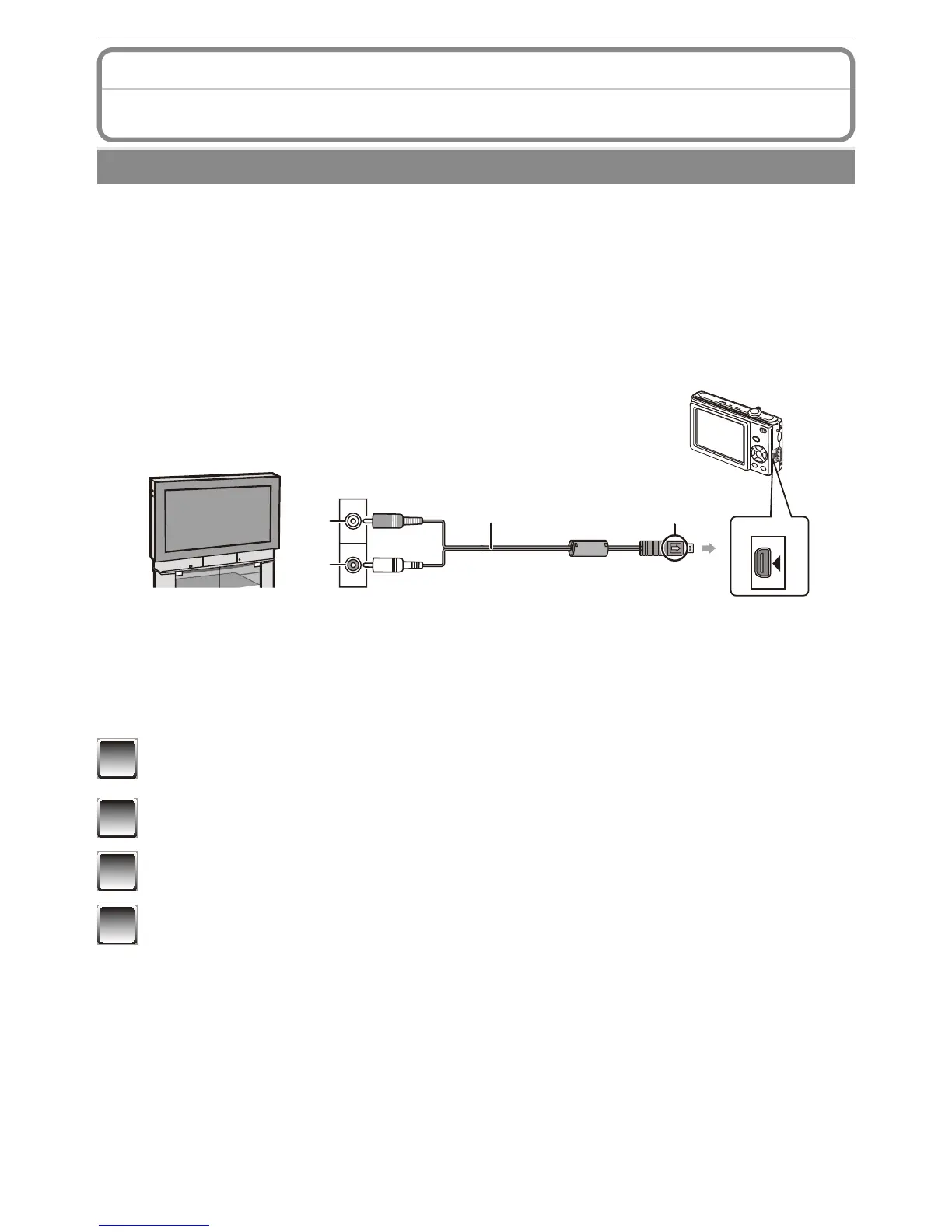

AV cable
• Check the directions of the connectors, and plug them straight in or unplug them straight
out. (Otherwise the connectors may be bent out of shape which will cause trouble.)
1
Connect the AV cable
B
to the video input and the audio input
sockets on the TV.
2
Connect the AV cable to the [AV OUT/DIGITAL] socket on the camera.
3
Turn the TV on and select external input.
4
Slide the recording/playback switch to [
5
].
Turn the camera on and play back the picture.
