3.3. How to Define the Model Suffix (NTSC or PAL model)
There are five kinds of DMC-FS5, regardless of the colours.
• a) DMC-FS5P/PC
• b) DMC-FS5E/EB/EF/EG/GN
• c) DMC-FS5EE
• d) DMC-FS5GT/GK
• e) DMC-FS5PL/GC/PR/GJ
What is the difference is that the “INITIAL SETTINGS” data which is stored in Flash ROM mounted on Main PCB.
3.3.1. Defining methods:

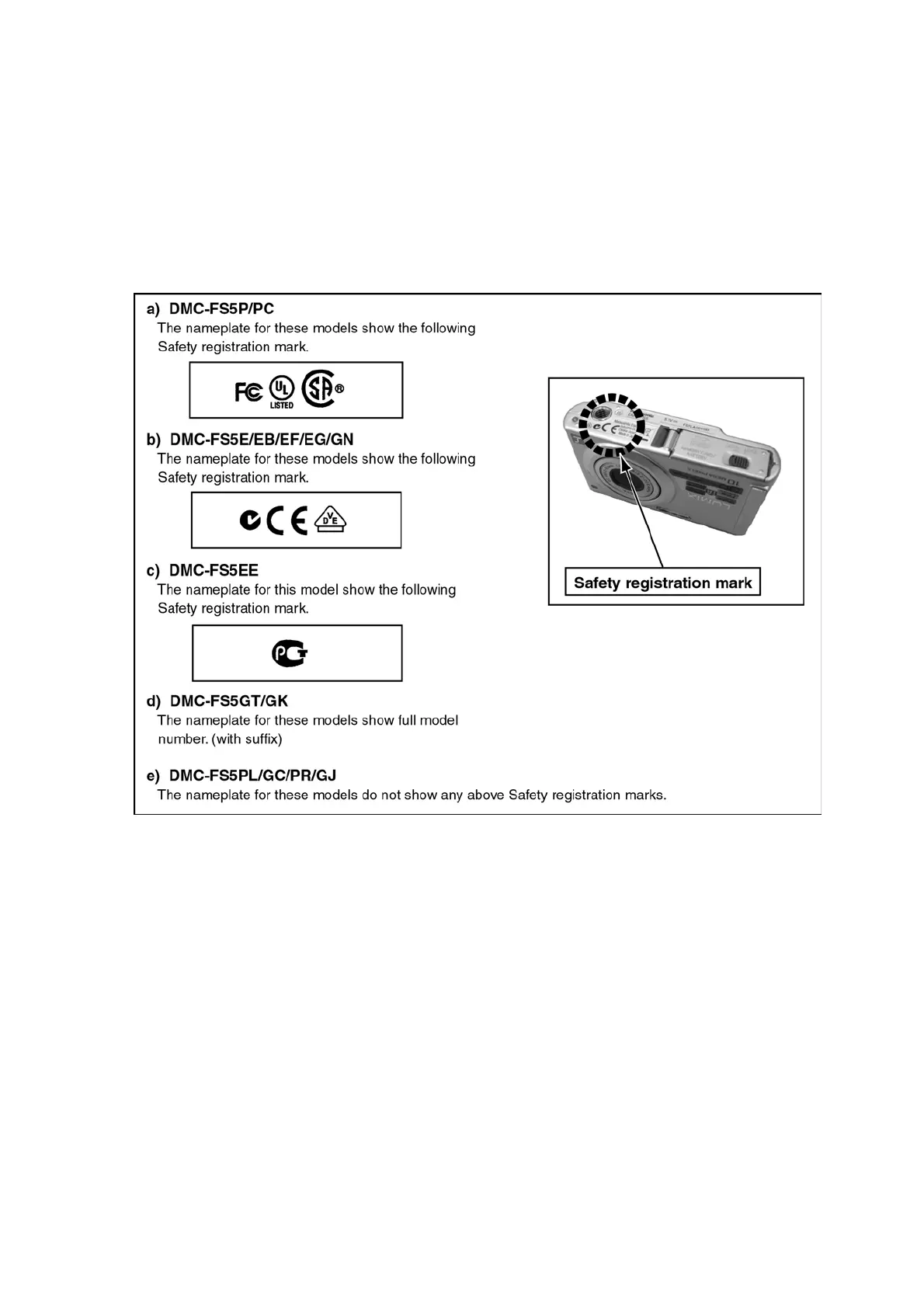

To define the model suffix to be serviced, refer to the nameplate which is putted on the bottom side of the Unit.
NOTE:
After replacing the MAIN PCB, be sure to achieve adjustment.
The adjustment instruction is available at “software download” on the “Support Information from NWBG/VDBG-PAVC” web-site
in “TSN system”, together with Maintenance software.
To Next Page
