Preparation
10
VQT0Y19

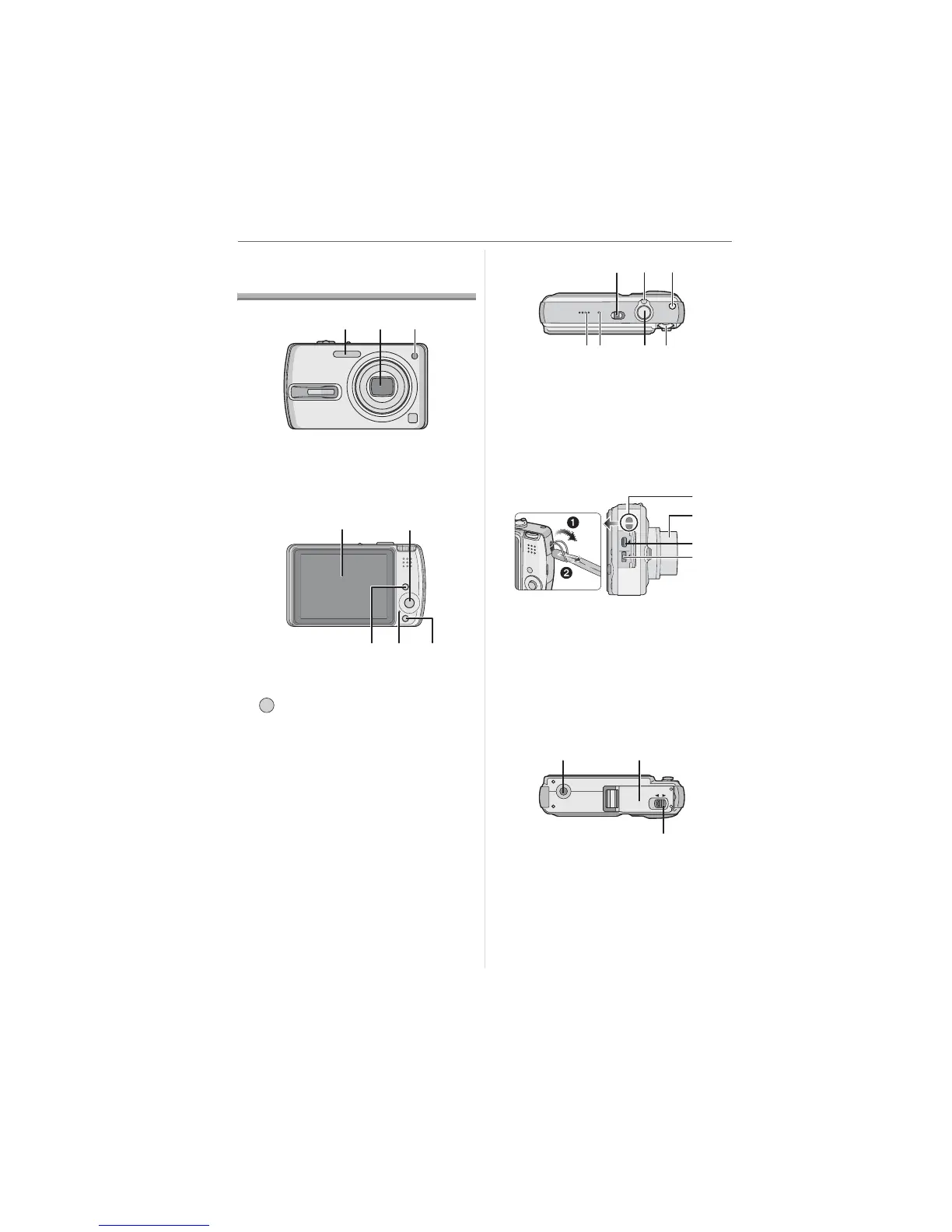

Names of the
Components
1 Flash (P39)
2 Lens (P4)
3 Self-timer indicator (P43)
AF assist lamp (P78)
4 LCD monitor (P35, 100)
5 Joystick
/[MENU/SET] button (P18)
/ Self-timer button (P43)
/ [REV] button (P31)
/ Flash setting button (P39)
/ Exposure compensation (P44)/
Auto bracket (P45)/White balance fine
adjustment (P72)/Backlight
compensation in simple mode (P27)
button
6 [DISPLAY/LCD MODE] button
(P35, 38)
7 Status indicator (P13)
8 Single or burst mode (P47)/
Delete button (P33)
9 Camera ON/OFF switch (P11, 17)
10 Zoom lever (P28)
11 Optical image stabilizer button (P46)
12 Speaker (P67)
13 Microphone (P62, 76, 88)
14 Shutter button (P23, 62)
15 Mode dial (P6)
16 Strap eyelet
17 Lens barrel
18 [DIGITAL/AV OUT] socket (P92, 95, 99)
19 [DC IN] socket (P92, 95)
• Always use a genuine Panasonic AC
adaptor (DMW-AC5; optional).
• This camera cannot charge the battery
even though the AC adaptor
(DMW-AC5; optional) is connected to it.
20 Tripod receptacle
• When you use a tripod, make sure the
tripod is stable when the camera is
attached to it.
21 Card/Battery door (P14, 15)
22 Release lever (P14, 15)
123
54
78
6
/SET
MENU
9
12
10
13 14 15
11
DIGITAL
AV OUT
DC IN
16
17
18
19
OPEN
LOCK
20 21
22
