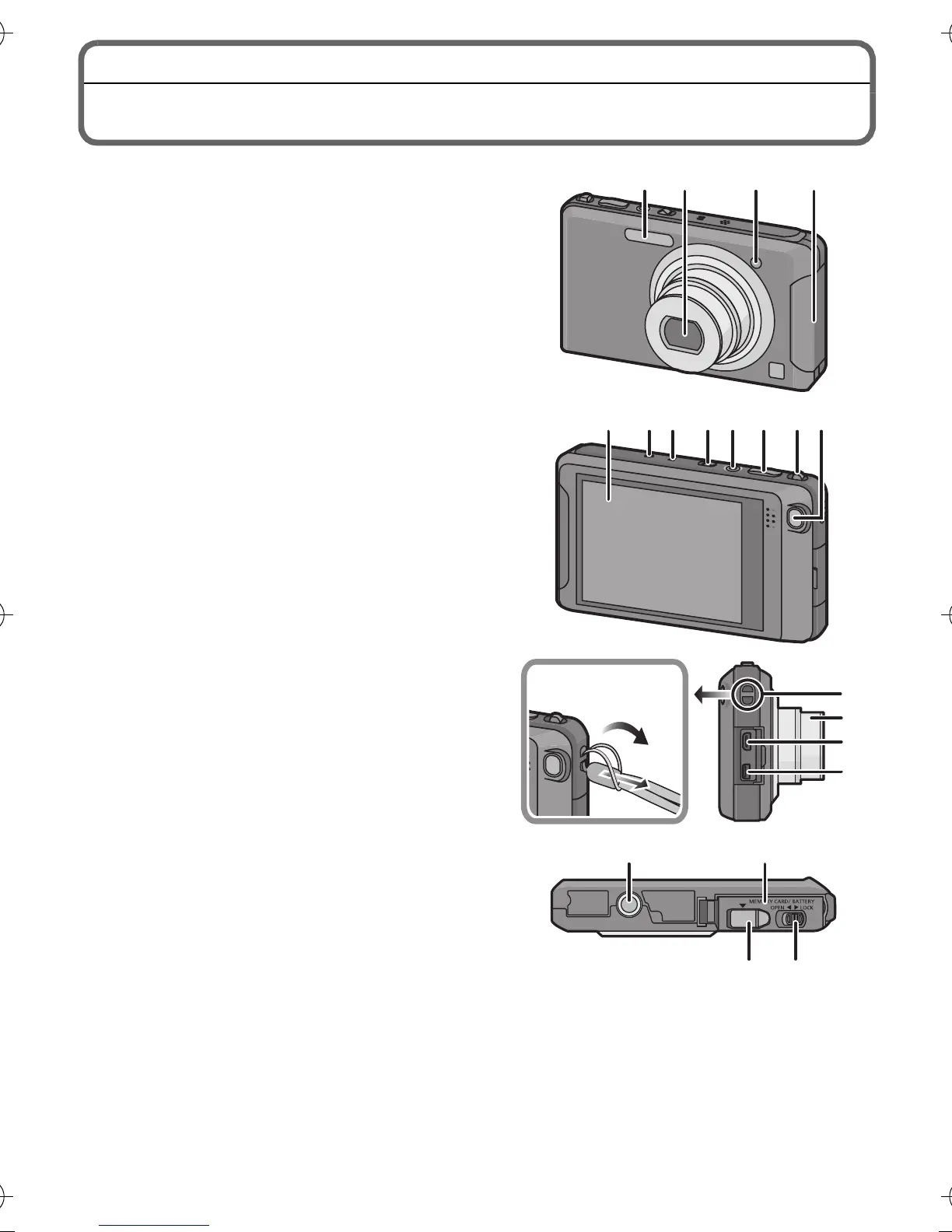

Names and Functions of Main Parts
1Flash
2Lens
3 Self-timer indicator
AF Assist Lamp
4Wi-Fi
R
Transmitter
5 Touch panel/LCD monitor
6 Speaker
7 Microphone
8 Camera ON/OFF switch
9 Motion picture button
10 Shutter button
11 Zoom lever
12 [Wi-Fi] button
13 Strap eyelet
• Be sure to attach the strap when
using the camera to ensure that you
will not drop it.
14 Lens barrel
15 [HDMI] socket
16 [AV OUT/DIGITAL] socket
17 Tripod receptacle
18 Card/Battery door
19 Release lever
20 DC coupler cover
• When using an AC adaptor, ensure that
the Panasonic DC coupler (DMW-DCC10;
For shop display purpose only) and AC
adaptor (DMW-AC5E; optional) are used.
• Always use a genuine Panasonic AC
adaptor (DMW-AC5E; optional).
• When using an AC adaptor, use the AC
mains lead supplied with the AC adaptor.
1 2 3 4
10 111298765

15
16
14
13

17 18
19
20
