Panasonic Lumix DMC-FZ100P User Manual
4
of 1
of 1 rating
69 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
14
4
S

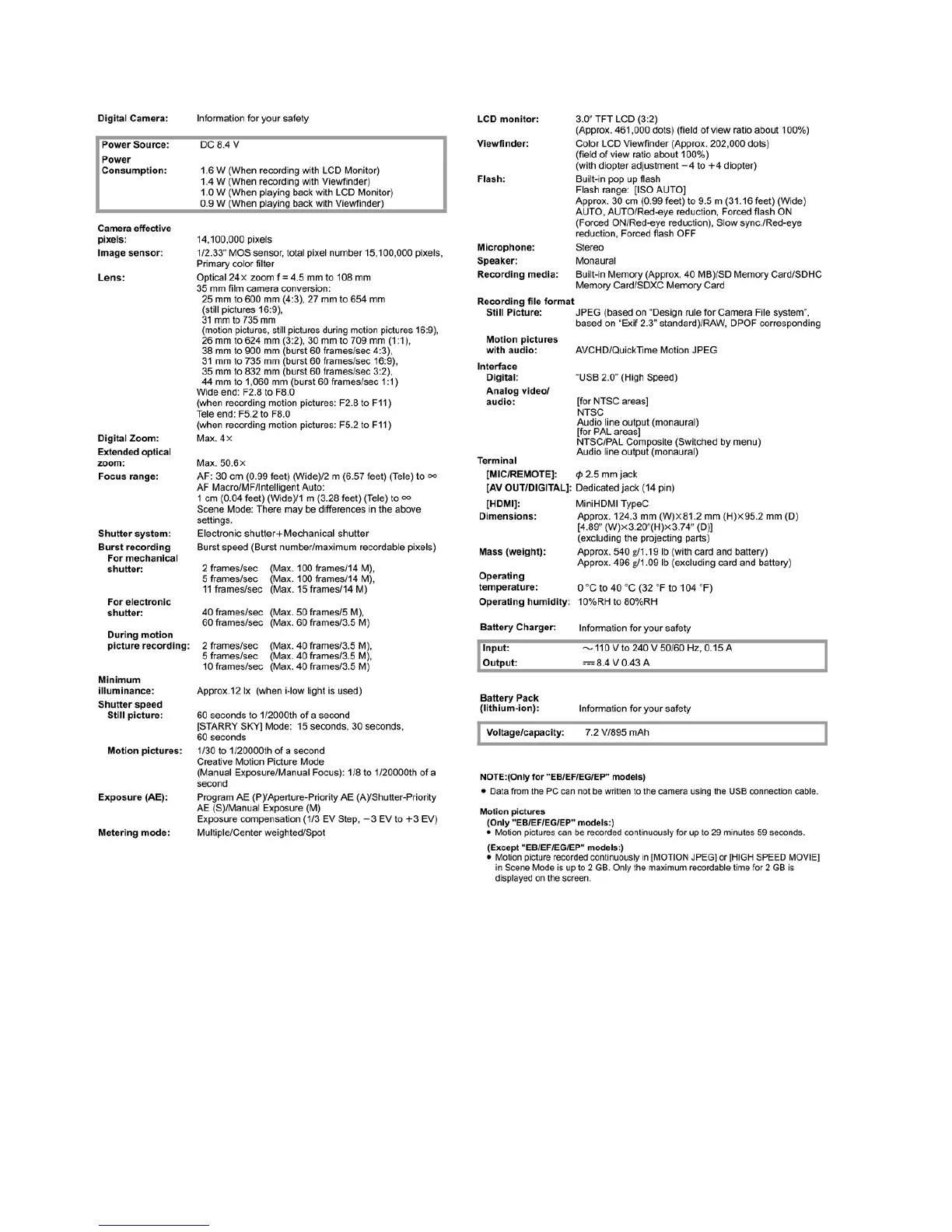

pecifications
13
15
Table of Contents
Table of Contents
2
1 Safety Precautions
3
General Guidelines
3
Leakage Current Cold Check
3
Leakage Current Hot Check (See Figure 1.)
3
How to Discharge the E.capacitor on Flash P.C
4
2 Warning
5
Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices
5
How to Recycle the Lithium Ion Battery (U.S. Only)
5
Caution for AC Cord(for EB
6
How to Replace the Lithium Battery
7
3 Service Navigation
8
Introduction
8
General Description about Lead Free Solder (Pbf)
9
Important Notice 1:(Other than U.S.A. and Canadian Market)
9
How to Define the Model Suffix (NTSC or PAL Model)
10
Initial Settings
11
4 Specifications
14
5 Location of Controls and Components
15
About the Battery
18
6 Service Mode
19
Error Code Memory Function
19
ICS (Indication of Additional Camera Settings When Picture was Taken) Function
21
7 Service Fixture & Tools
23
Service Fixture and Tools
23
When Replacing the Main P.C.B
24
Service Position
24
8 Disassembly and Assembly Instructions
25
Disassembly Flow Chart
25
Location
25
Disassembly Procedure
26
Lens Disassembly Procedure
36
Removal of the MOS SENSOR Unit
41
9 Measurements and Adjustments
42
Introduction
42
Before Disassembling the Unit
42
Details of Electrical Adjustment
44
After Adjustment
48
10 Maintenance
49
Cleaning Lens, Viewfinder and LCD Panel
49
Parts List
50
S2. Voltage Chart
51
S2.1. Flash P.C.B
51
S3. Block Diagram
52
S3.1. Overall Block Diagram
52
S4. Schematic Diagram
53
S4.1. Interconnection Diagram
53
S4.2. Flash Schematic Diagram
54
S4.3. MIC Jack Schematic Diagram
55
S4.4. AF MF Flex Schematic Diagram
56
S4.6. Lens Flex Schematic Diagram
57
S5. Print Circuit Board
58
S5.2. MIC Jack P.C.B
58
S5.3. AF MF Flex P.C.B
59
S5.5. Lens Flex P.C.B
60
S6. Replacement Parts List
62
S7. Exploded View
66
S7.1. Frame and Casing Section
66
S7.2. Camera Lens Section
67
S7.3. Packing Parts and Accessories Section (1
68
S7.4. Packing Parts and Accessories Section (2
69
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Panasonic Lumix DMC-FZ100P and is the answer not in the manual?
Ask a question
