25
8 Disassembly and Assembly Instructions

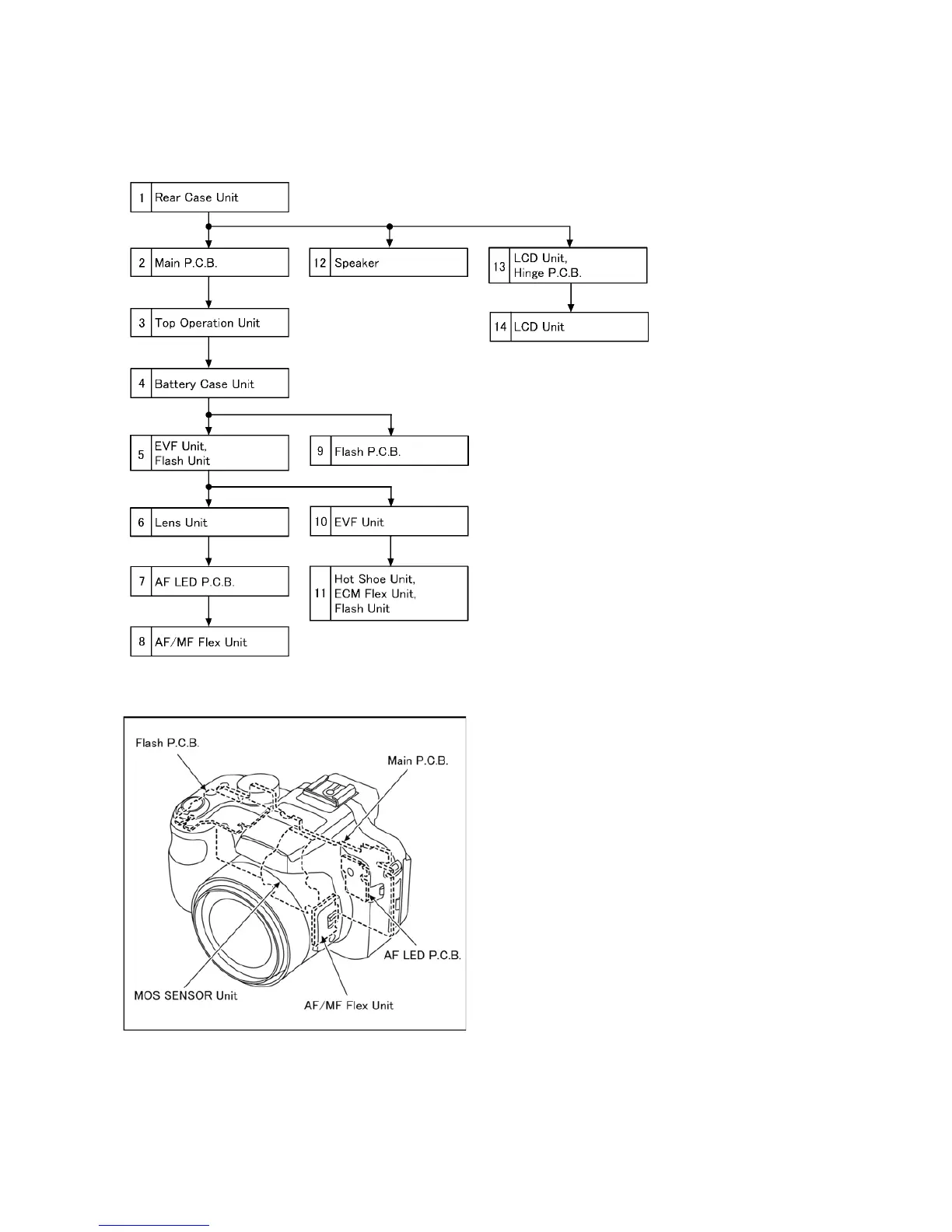

8.1. Disassembly Flow Chart
This is a disassembling chart.
When assembling, perform this chart conversely.
8.2. P.C.B. Location
