Before Use
Names and Functions of Components

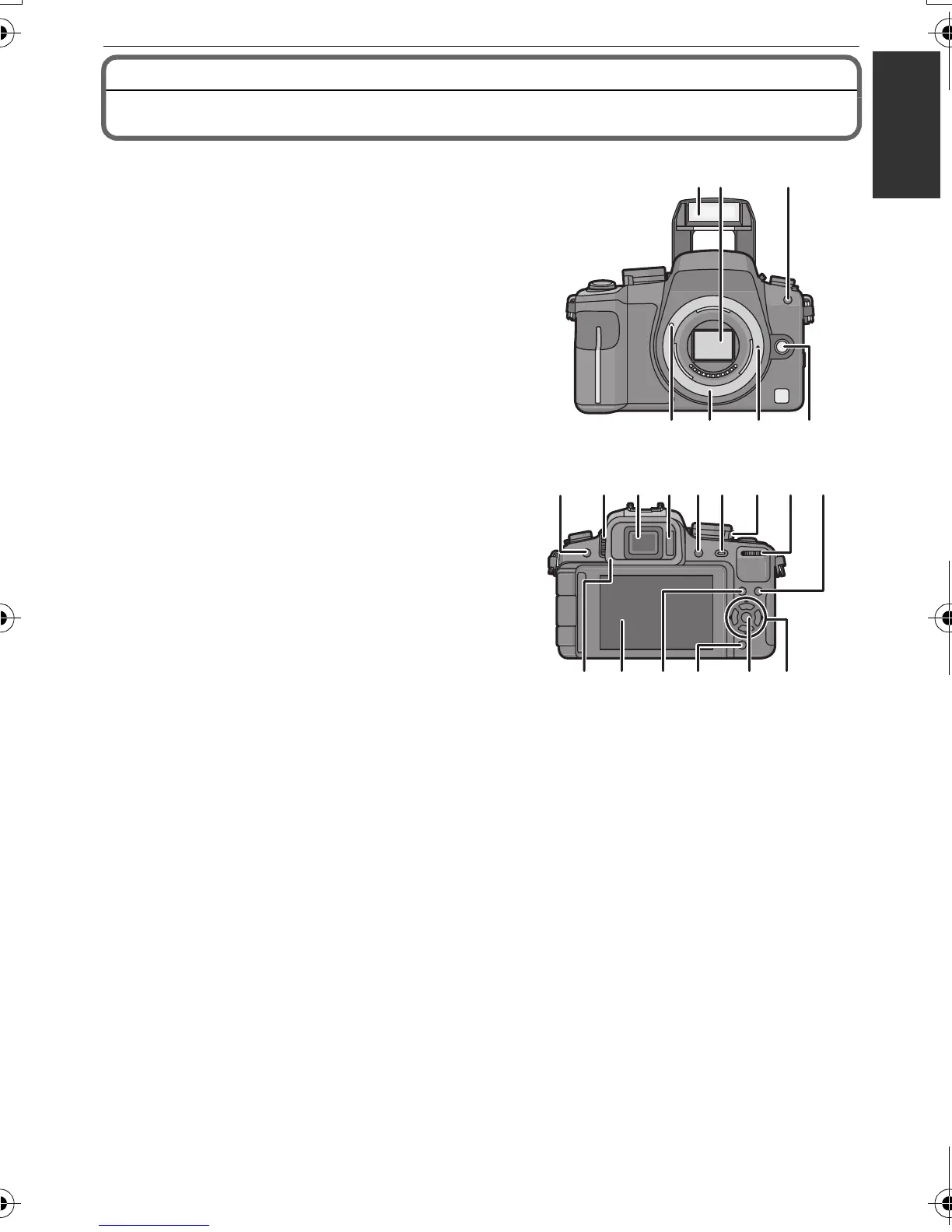

∫ Camera body
1 Flash (P68)
2 Sensor
3 Self-timer indicator (P80)/
AF Assist Lamp (P131)
4 Lens release button (P21)
5 Lens lock pin
6 Mount
7 Lens fitting mark (P20)
8 [LVF/LCD] button (P15)
9 Diopter adjustment dial (P15)
10 Viewfinder (P15, 63, 173)
11 Eye sensor (P15)
12 Playback button (P39, 46)
13 [AF/AE LOCK] button (P86)
14 Camera ON/OFF switch (P31)
15 Rear dial (P17)
16 [DISPLAY] button (P40, 63, 95)
17 Eye Cup (P177)
18 Touch panel/LCD monitor (P15, 39, 63,
173)
19 [Q.MENU] button (P49, 56, 83)
20 Delete button (P52)/
Preview button (P95)
21 [MENU/SET] button (P16, 55)
22 Cursor buttons (P16)
3/ISO (P90)
1/WB (White Balance) (P87)
2/Function 2 button (P17)
4/Function 3 button (P17)
10 12
18 19
89
11 13 14
22
15 16
17 20 21
