Connecting to other equipment
- 108 -
Playing Back Pictures on a TV Screen
Playback mode:
5
Playing back pictures using the AV cable
Preparations:
Set the [TV ASPECT]. (P28)
Turn this unit and the TV off.
• Do not use any other AV cables except the supplied one. (Only for DMC-LS85PU/DMC-
LS86PU)
• Do not use any other cables except a genuine Panasonic AV cable (DMW-AVC1:
optional) (Only for DMC-LS85EG/DMC-LS85EP)

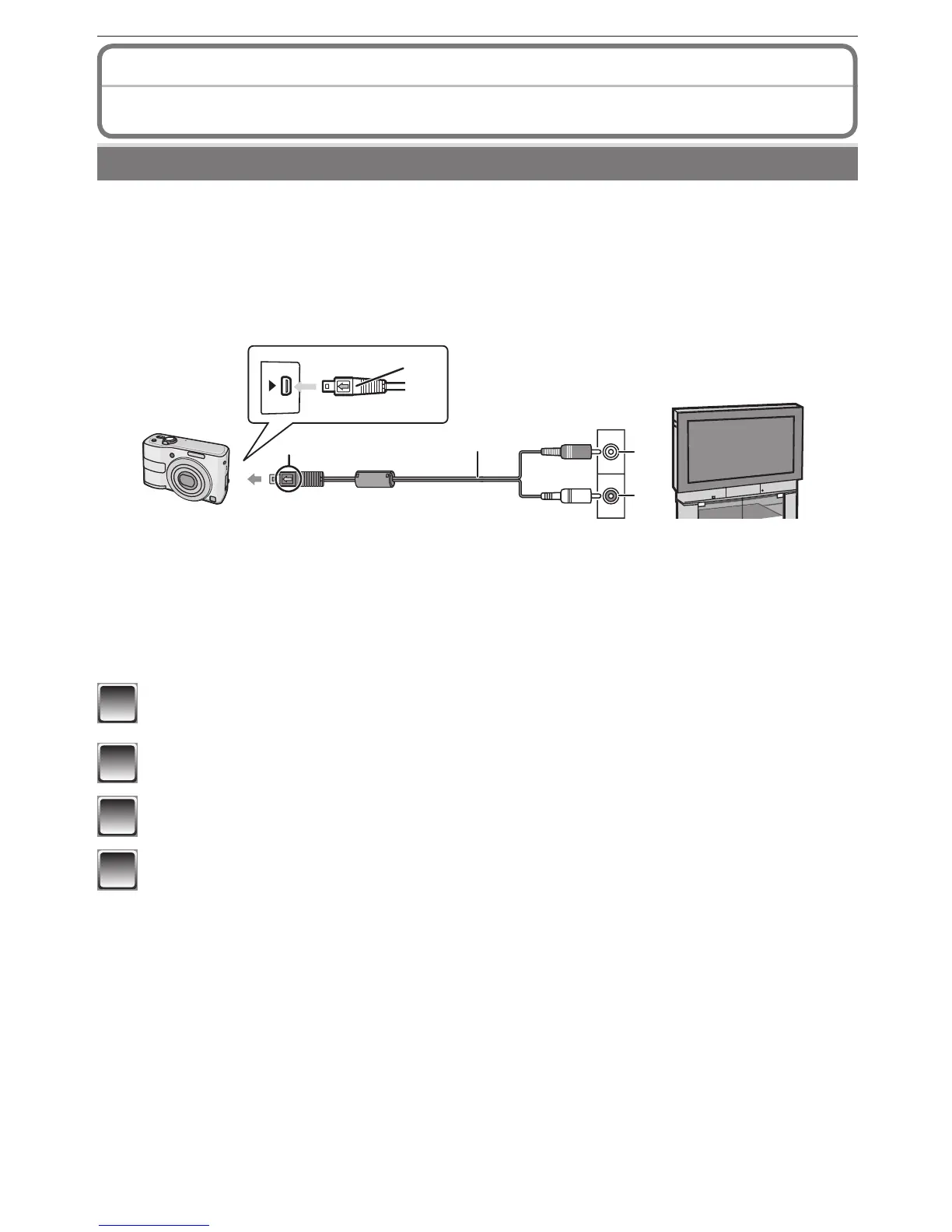

B
1
2
A
A
AV OUT
/DIGITAL
1
Yellow: to the video input socket
2
White: to the audio input socket
A
Align the marks, and insert.
B
AV cable (supplied for DMC-LS85PU/DMC-LS86PU, optional for DMC-LS85EG/ DMC-
LS85EP)
• Check the directions of the connectors, and plug them straight in or unplug them straight
out. (Otherwise the connectors may be bent out of shape which will cause trouble.)
1
Connect the AV cable
B
to the video input and the audio input
sockets on the TV.
2
Connect the AV cable to the [AV OUT/DIGITAL] socket on the camera.
3
Turn the TV on and select external input.
4
Turn the camera on and playback the picture.
