Panasonic Lumix DMC-TZ2 - Camera Overview; Identifying Camera Parts; Understanding the Mode Dial

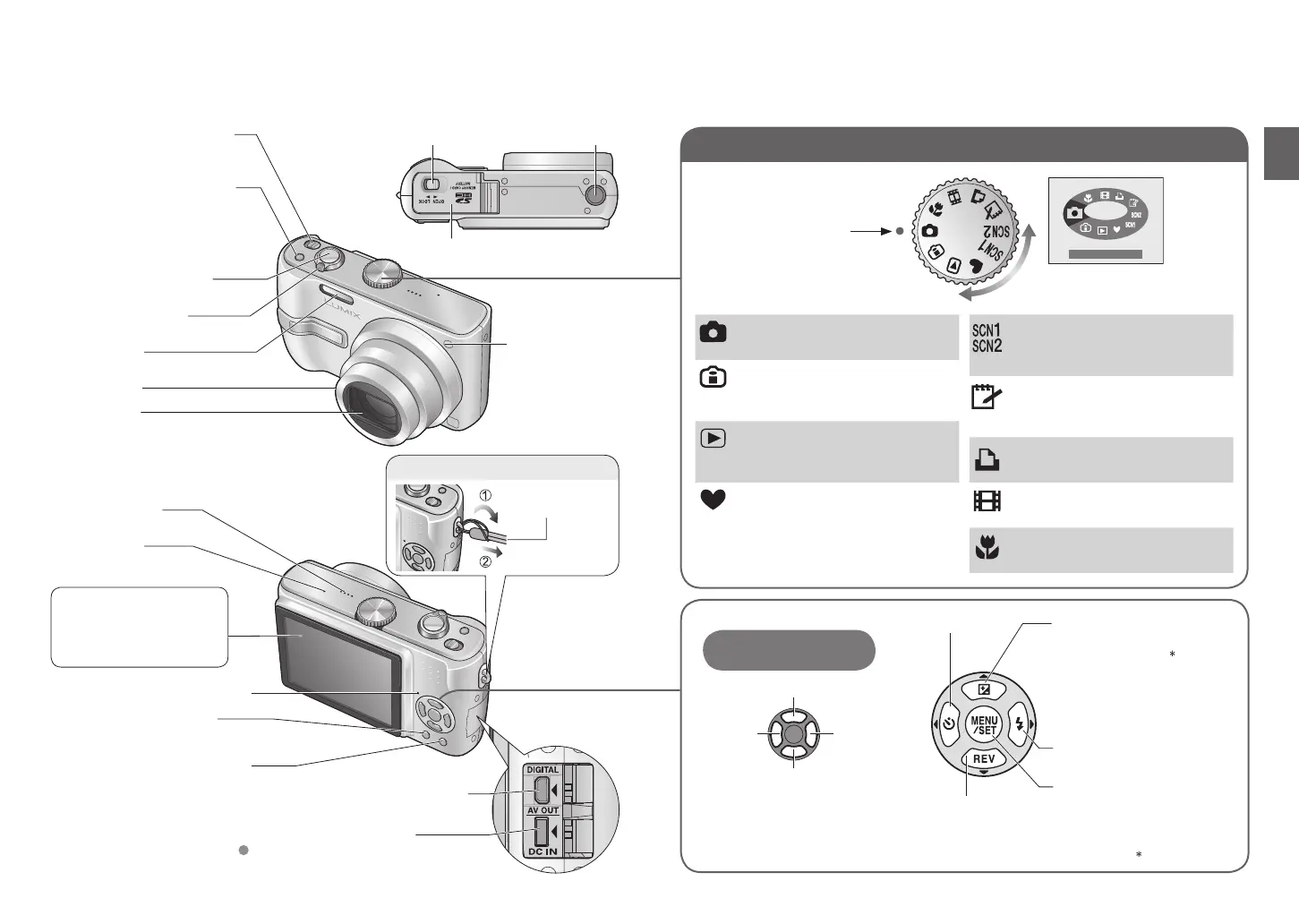

Mode dial
NORMAL PICTURE
12 VQT1B61 VQT1B61 13
Camera ON/OFF switch
(P.18)
Optical image stabilizer
button (P.39)
Lens barrel
Lens (P.11)
Self-timer
indicator
(P.35)/AF
assist lamp
(P.56)
Release lever (P.15)
Names of parts
Shutter button (P.24)
Zoom lever (P.27)
Flash (P.36)
Speaker (P.22)
Microphone
(P.47, 53, 70)
Status indicator (P.15, 24)
DISPLAY/LCD MODE
button (P.33, 34)
FUNC (Quick setting P.57)/
delete (P.32) button
NORMAL PICTURE mode
Take pictures (P.24).
INTELLIGENT ISO mode
Take pictures according to motion
and brightness of subject (P.46).
PLAYBACK mode
View/edit pictures previously
taken (P.31, 61)
SIMPLE MODE
For beginners (P.28).
Tripod receptacle
Card/Battery door (P.15)
DIGITAL/AV OUT socket
(P.74, 76, 79)
DC IN socket (P.74, 76)
Always use a genuine Panasonic AC
adaptor (DMW-AC5PP: optional).
LCD monitor
● Checking remaining battery/
memory capacity, etc (P.25)
● Changing display (P.33)
● Display contents list (P.80)
Align to correct mode
(Displayed on screen when
mode changed)
SCENE mode
Take pictures according to scene
(P.40).
CLIPBOARD mode
Take/view pictures as memos
(P.58).
PRINT mode
Print (P.76).
MOTION PICTURE mode
Take motion pictures (P.47).
MACRO mode
Take close-up pictures (P.46).
Up▲
down▼
right►◄left
In this manual, direction buttons
to be pressed will be shown in
white, or with ▲▼◄►.
Self-timer (P.35)
● Exposure
compensation (P.38)
● Auto bracket (P.38)
● White balance fine
adjustment (P.50)
● Backlight
compensation (P.28)
● Flash (P.36)
● MENU/SET
(menu display/set) (P.18)
Up/down/left/right
selection
View previously
taken picture
immediately
(Review) (P.30)
DMC-TZ3 only
Strap eyelet
Strap
(supplied)
