7 Service Fixture & Tools

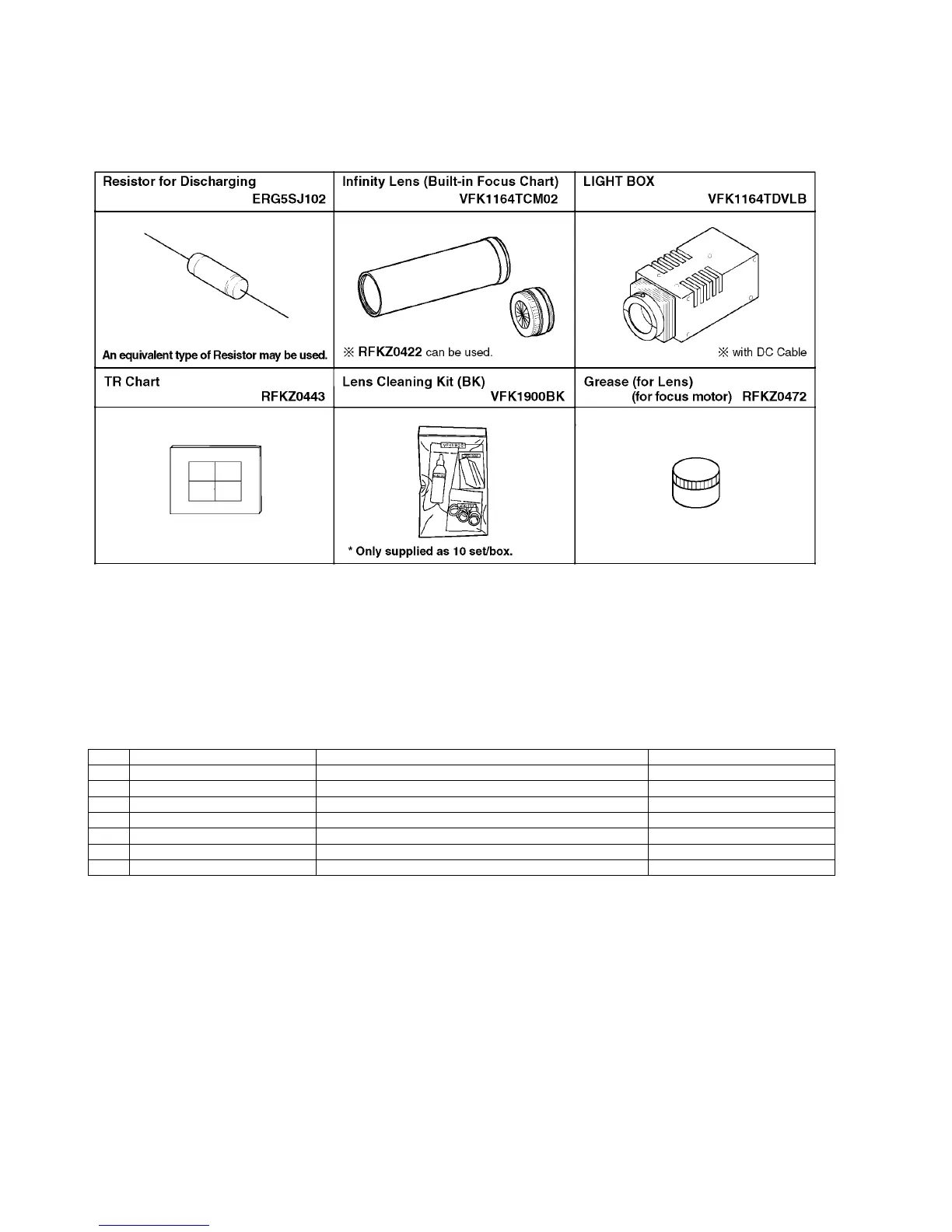

7.1. Service Fixture and Tools
The following Service Fixture and tools are used for checking and servicing this unit.
7.2. When Replacing the Main PCB
After replacing the MAIN PCB, be sure to achieve adjustment.
The adjustment instruction is available at “software download” on the “Support Information from NWBG/VDBG-PAVC” web-site in
“TSN system”, together with Maintenance software.
7.3. Service Position
This Service Position is used for checking and replacing parts. Use the following Extension cables for servicing.
No. Parts No. Connection Form
1 RFKZ0416 FP9001 (MAIN) - LENS UNIT 41PIN 0.3 FFC
2 RFKZ0363 FP9002 (MAIN) - TOP OPERATION UNIT 19PIN 0.5 FFC
3 VFK2024 FP9004 (MAIN) - LCD UNIT 51PIN 0.3 FFC
4 RFKZ0445 PP9001 (MAIN) - PS9801 (SUB) 100PIN B to B
5 VFK1951 FP9801 (SUB) - CCD UNIT 39PIN 0.3 FFC
6 VFK1175 FP9802 (SUB) - FP8001 (FLASH) 16PIN 0.5 FFC
7 VFK1974 FP9007 (MAIN) - LCD UNIT 4PIN 0.5 FFC
