8
2.4. How to Replace the Lithium Battery
2.4.1. Replacement Procedure

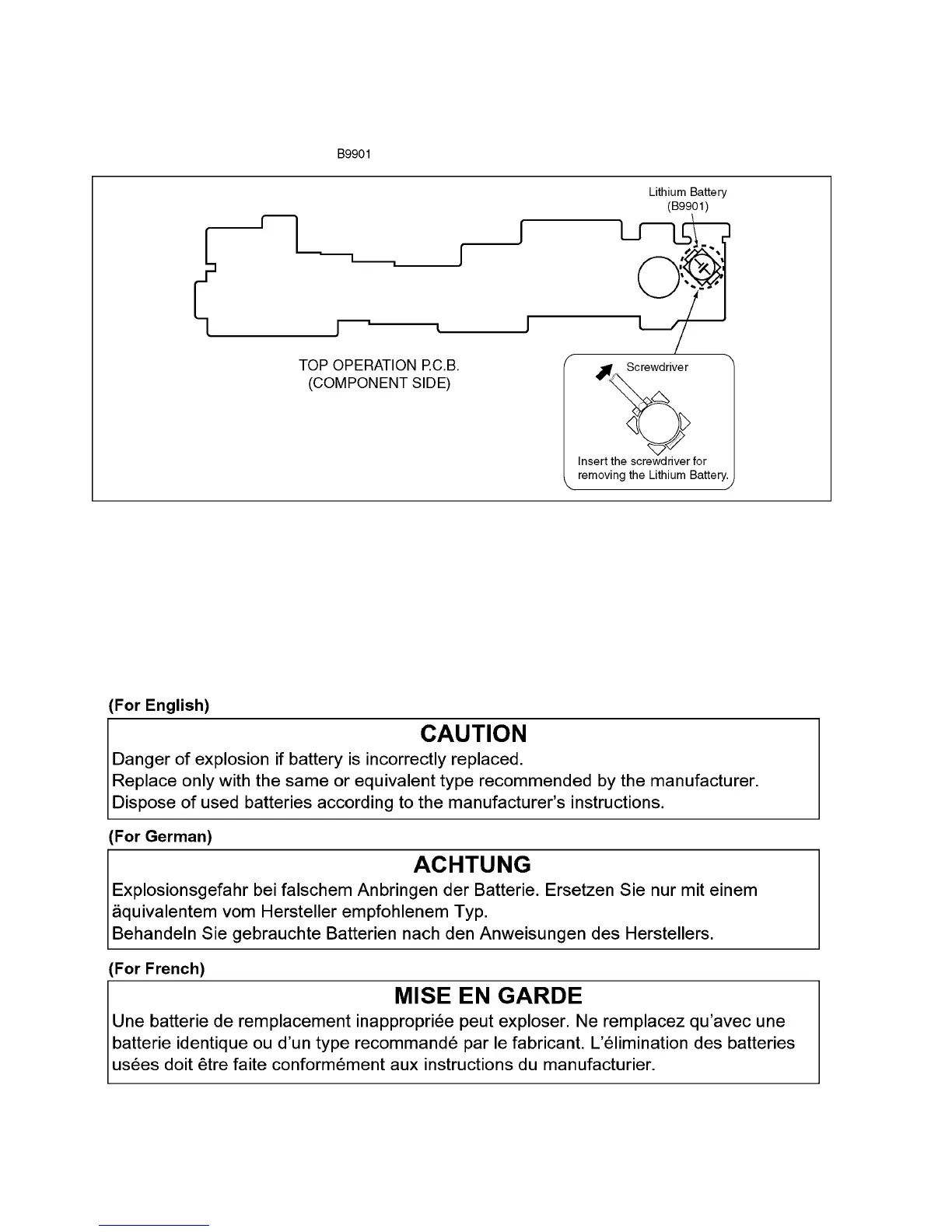

1. Remove the Top Operation PCB. (Refer to Disassembly Procedures.)
2. Remove the Lithium battery (Ref. No. at component side of Top Operation PCB) and then replace it into new one.
Note:
The lithium battery is a critical component.
(Type No.: ML-421S/ZT Manufactured by Matsushita Battery Industrial Co.,Ltd.)
It must never be subjected to excessive heat or discharge.
It must therefore only be fitted in equipment designed specifically for its use.
Replacement batteries must be of the same type and manufacture.
They must be fitted in the same manner and location as the original battery, with the correct polarity contacts observed.
Do not attempt to re-charge the old battery or re-use it for any other purpose.
It should be disposed of in waste products destined for burial rather than incineration.
NOTE:
Above caution is applicable for a battery pack which is for DMC-TZ5/TZ15 series, as well.
