8.4.4. Removal of the Direct Frame, Both
Side Cam and 2nd Lens Frame/3nd
Lens Frame

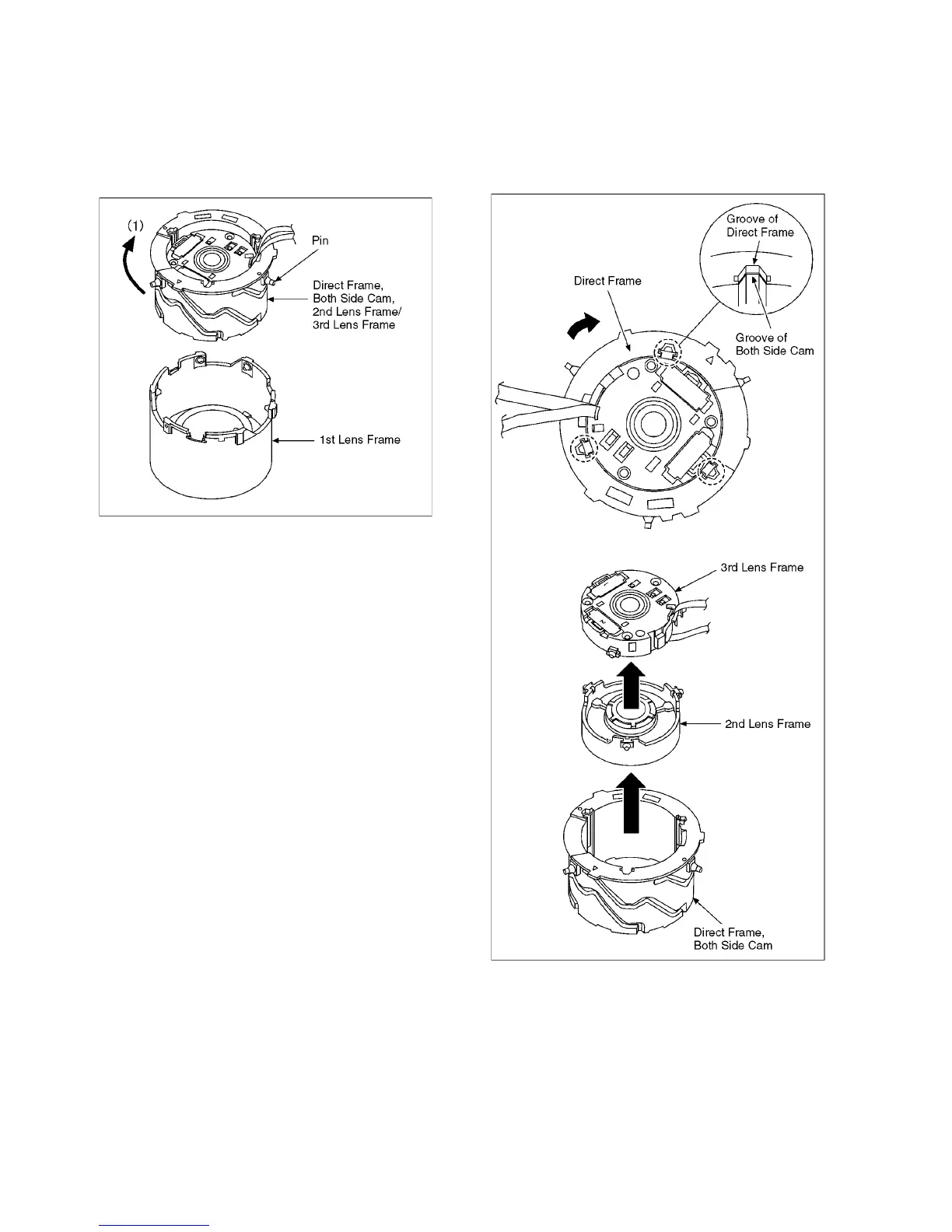

• Turn to the indicated by arrow(1) while picking the pin, and
then remove the unit of direct frame, both side cam and 2nd
lens frame/3rd lens frame from the 1st lens frame.
8.4.5. Removal of the 3rd Lens Frame and
2nd Lens Frame
1. Turn the direct frame, and then Align the groove of direct
frame and groove of both side cam.
2. Remove the 3rd lens frame and 2nd lens frame from the
direct frame, both side cam.
