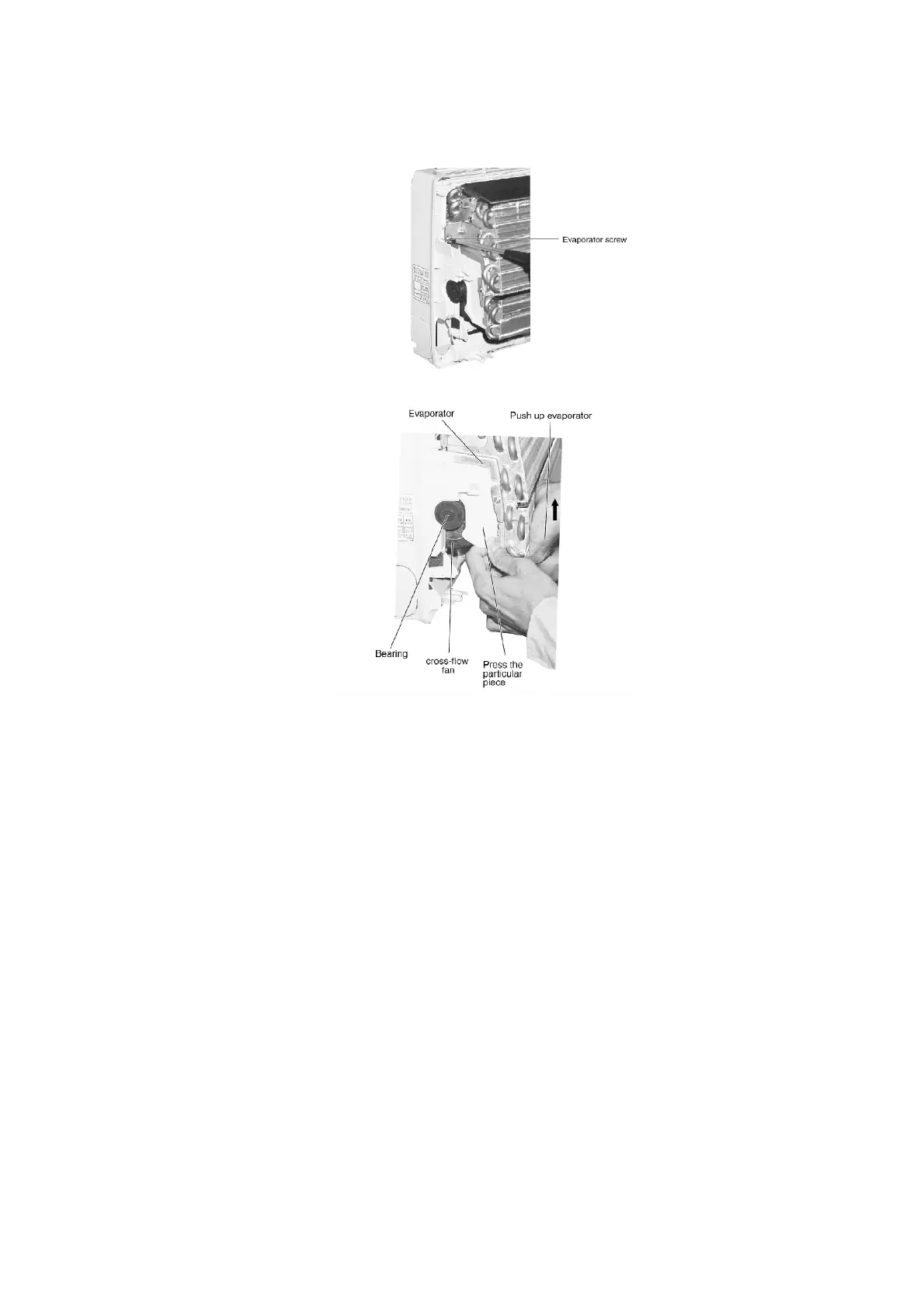

Fig. 6
Fig. 7
- Remote Control Reset
When the batteries are inserted for the first time, or the batteries
are replaced, all the indications will blink and the remote control
might not work.
If this happen, remove the back cover of the remote control and
you will find a resetting terminal, and by shorting it with a minus
screwdriver, it will return to normal.
- Changing the wireless remote control transmission code
When two indoor units are installed in the same room, in order to
prevent operating errors caused by using two remote controls,
add a jumper wire to the remote control side (J-B) and a carbon
resistor (1/4 W, 10 kW) to the indoor printed circuit (RX-1) board, it
is possible to select from 2 types of transmission codes including
one at time of delivery condition (1).
73
