Panasonic MAC0105011C3 - Page 89

- All parts are supplied from MACC, Malaysia (Vendor Code: 086).
- “O” marked parts are recommended to be kept in stock.

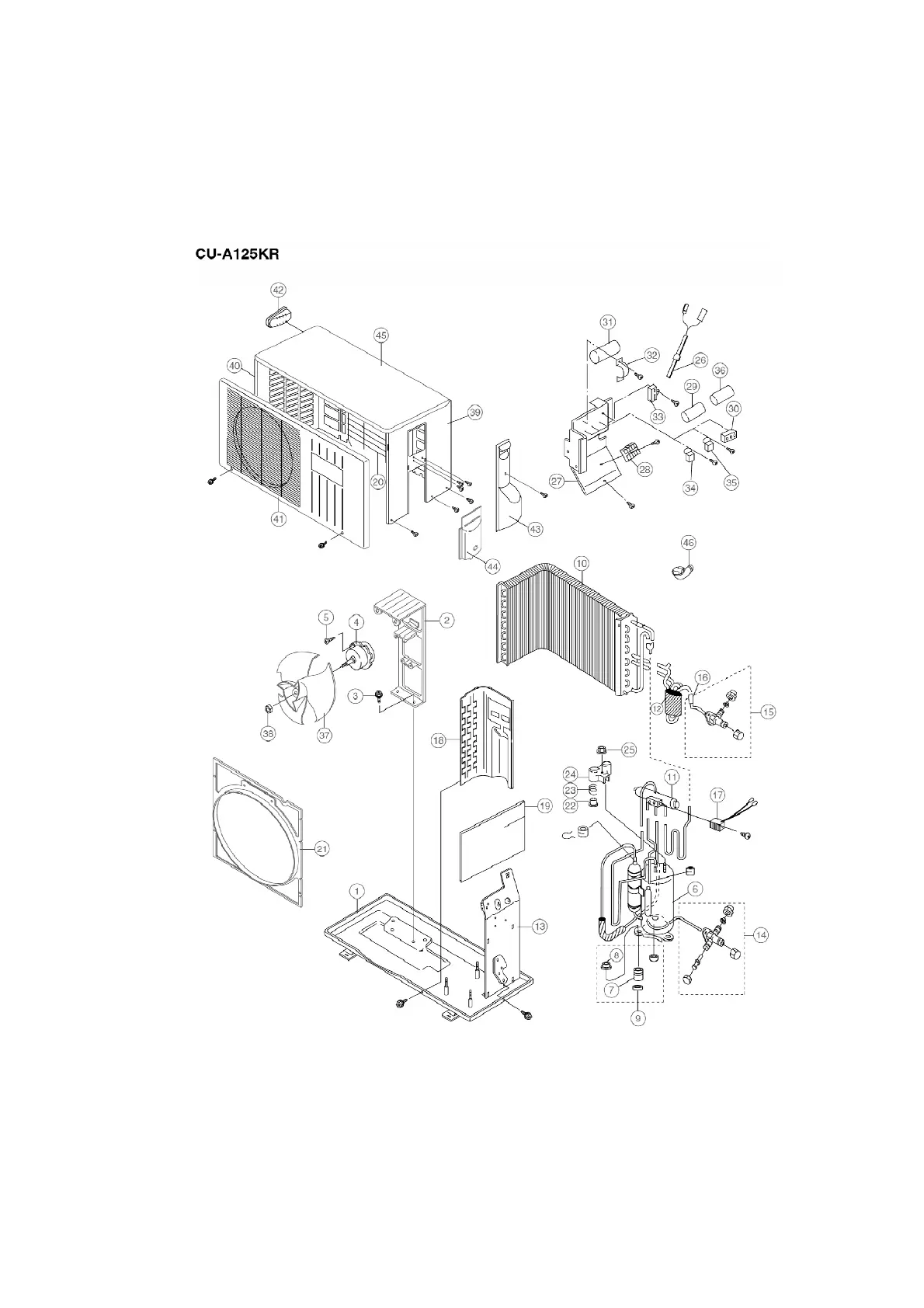

19. Exploded View
Note:
The above exploded view is for the purpose of parts disassembly and replacement.
The non-numbered parts are not kept as standard service parts.
20. Replacement Parts List
<Model: CU-A125KR>
89
