Cord reel assembly
Power cord Cord guide
Lower body
Fig. 22
Fig. 23
Remove
connection
Remove
connection
Fig. 21

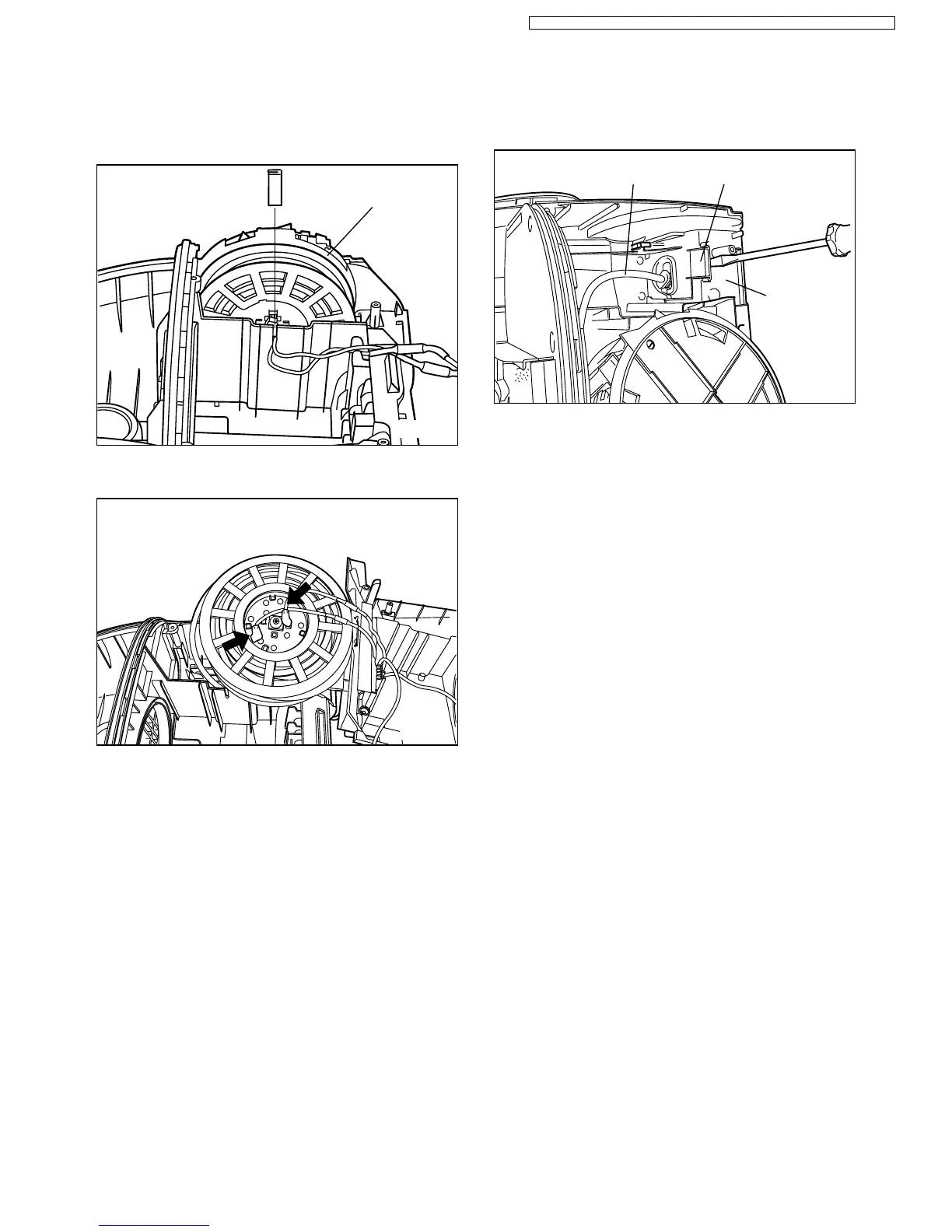

5.9. Replacing the cord reel assembly
1. When the motor is removed from the lower body,
straightly pull up the cord reel from the lower body for
removal. (Fig. 21)
2. Disconnect faston connection terminals from the
cord reel. (Fig. 22)
3. Pull up the cord guide of the lower body and remove the
power cord from the guide. (Fig. 23)
4. Replace cord reel assembly with a new one and pro-wind
the power cord the extra times indicated on the cord reel
sticker.
5. Reinstall cord reel assembly, motor unit and remaining
parts in the reverse order to the removing procedure.
NOTE: Make sure the lead wires and lower body seal
are correctly positioned to avoid pinching them
between parts.
12
MC-E7305 / MC-E7305K / MC-E7303 / MC-E7303K / MC-E7302 / MC-E7301 / MC-E7301K
