KNX Multi Functional Switch
Version: 1.0 Jan-20 Page 12/20

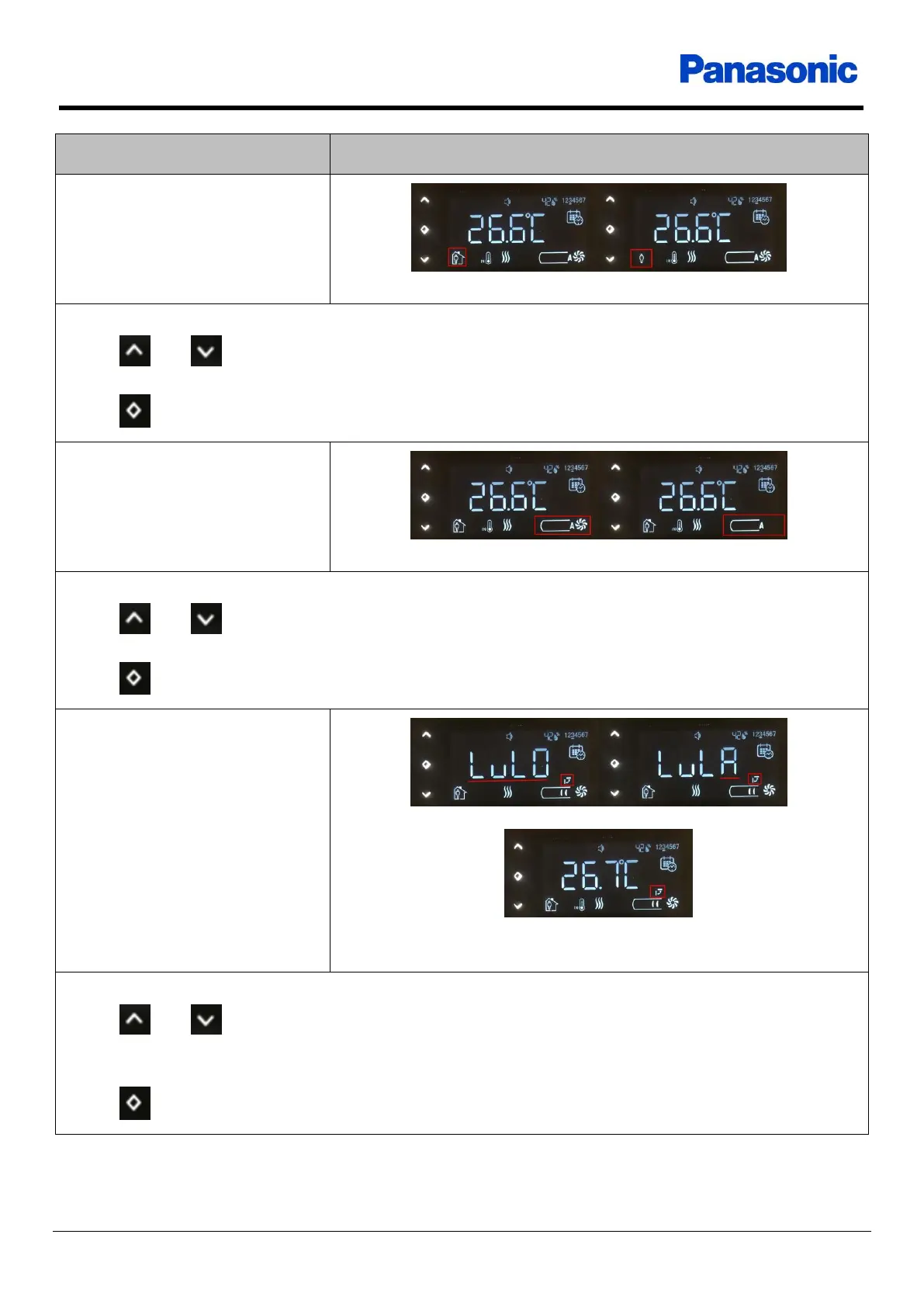

Settings
Visual
Thermostat operation mode
The mode border flashes
If there is not a restricted for manual control at the system,
 Up / Down buttons changes thermostat operation mode
 No operation for 10 seconds saves the value and returns to main screen
 OK button saves the value and goes to the next setting
Fan level
The fan icon flashes
If there is not a restricted for manual control at the system,
 Up / Down buttons increase or decreasethe fan level within specific limit
 No operation for 10 seconds saves the value and returns to main screen
 OK button saves the value and goes to the next setting
Swing level
The flap icon flashes
If level is selected as “Auto”, the flap icon appears at the main
screen
If there is not a restricted for manual control at the system,
 Up / Down buttons increase or decreasethe flap position within Level 0 – Level 5
 Level A means swing auto enabled
 No operation for 10 seconds saves the value and returns to main screen
 OK button saves the value and goes to the next setting
Table 9
