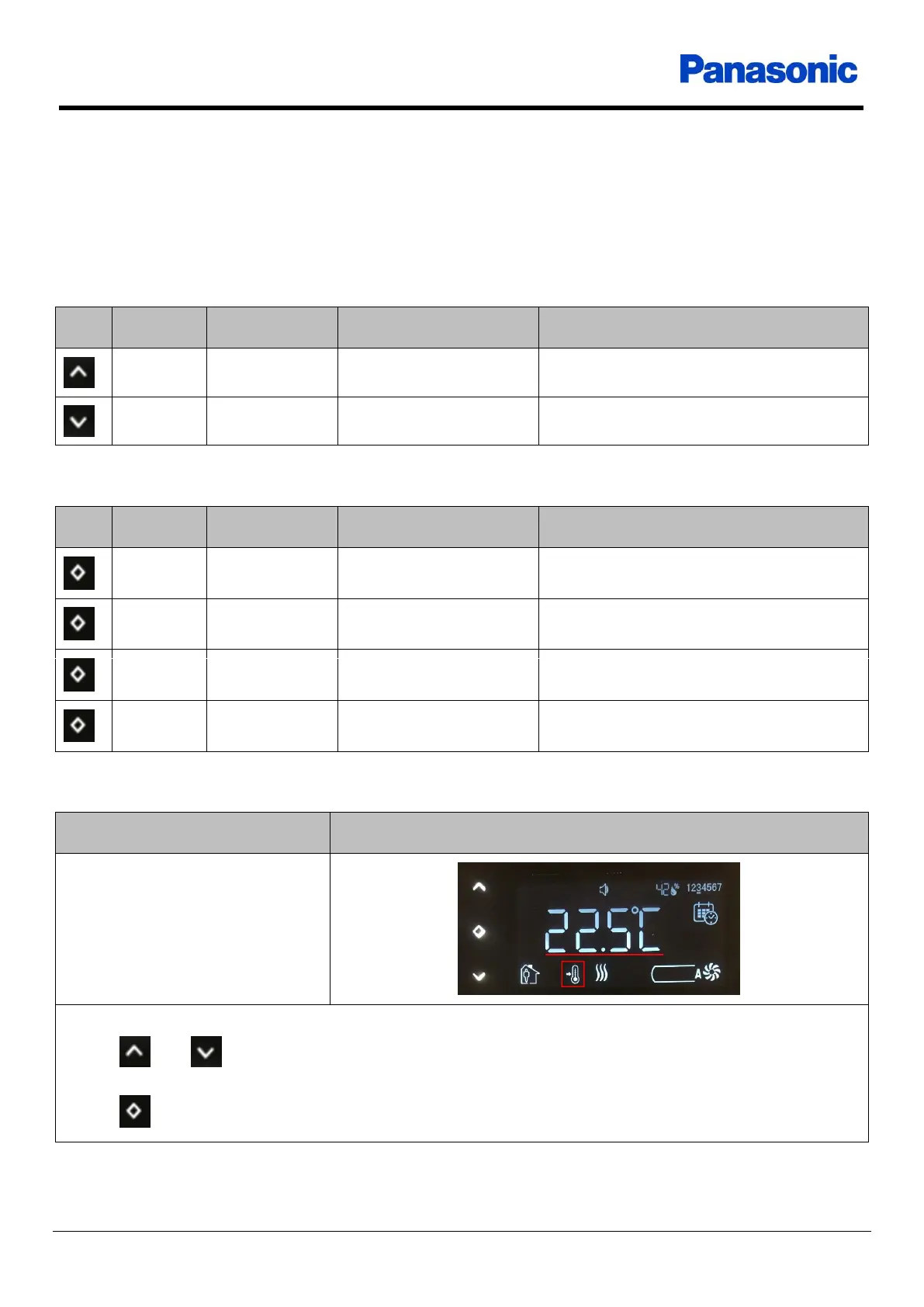

7 Display menus
7.1 User settings menu
When the display is at the main screen, if a short touch is detected at the one of thermostat buttons, the
display enters user settings menu.
Icon
Name
Touch type
Current menu
Target setting
Up
Short
Main screen
Setpoint temperature
Down
Short
Main screen
Setpoint temperature
Table 7
Icon
Name
Touch type
Current setting
Target setting
OK
Short
Main screen
Thermostat operation mode
OK
Short
Operation mode
Fan level
OK
Short
Fan level
Swing level
OK
Short
Swing level
Main screen
Table 8
Settings
Visual
Setpoint temperature
If there is not a restriction for manual control at the system,
 Up / Down buttons increase or decrease the setpoint within specific step and limit
 No operation for 10 seconds saves the value and returns to main screen
 OK button saves the value and returns to main screen
