KNX Multi Functional Switch
Version: 1.0 Jan-20 Page 18/20

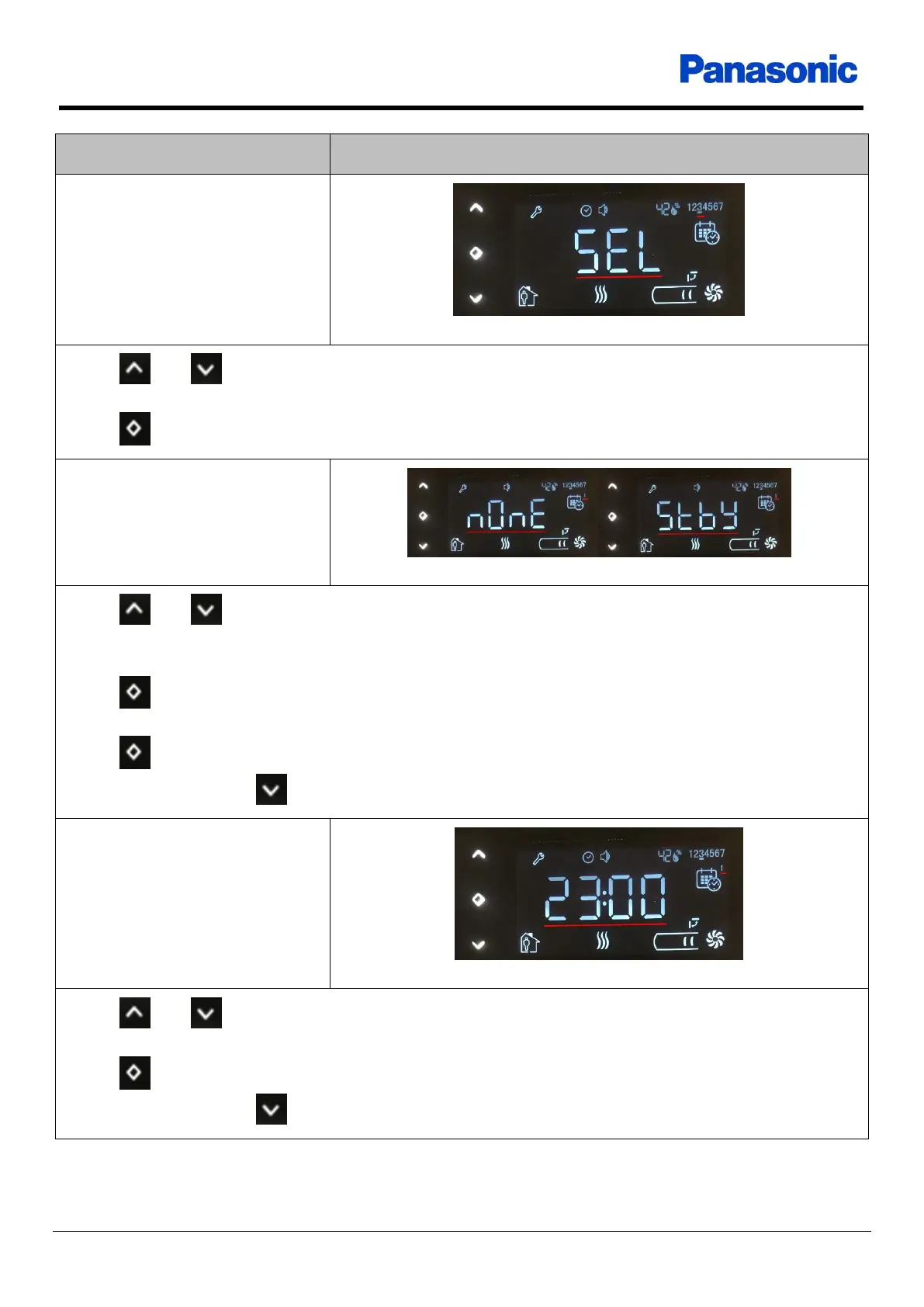

Settings
Visual
Select program day
The day of week icon flashes
 Up / Down buttons changes selected program day
 No operation for 10 seconds returns to main screen
 OK button selects the day to program and goes to the next setting
Select mode
The zone number icon flashes
 Up / Down buttons changes operation mode for the zone
 No operation for 10 seconds returns to main screen
If the operatin mode is selected as “none”,
 OK button changes the zone number
If the operation mode is not selected as “none,
 OK button goes to the next setting
 Long touch at the Down button saves the values and changes setting to select program day
Select hour
The zone number icon and hour digits flash
 Up / Down buttons changes hour for the operation mode
 No operation for 10 seconds returns to main screen
 OK button goes to the next setting
 Long touch at the Down button saves the values and changes setting to select program day
