10

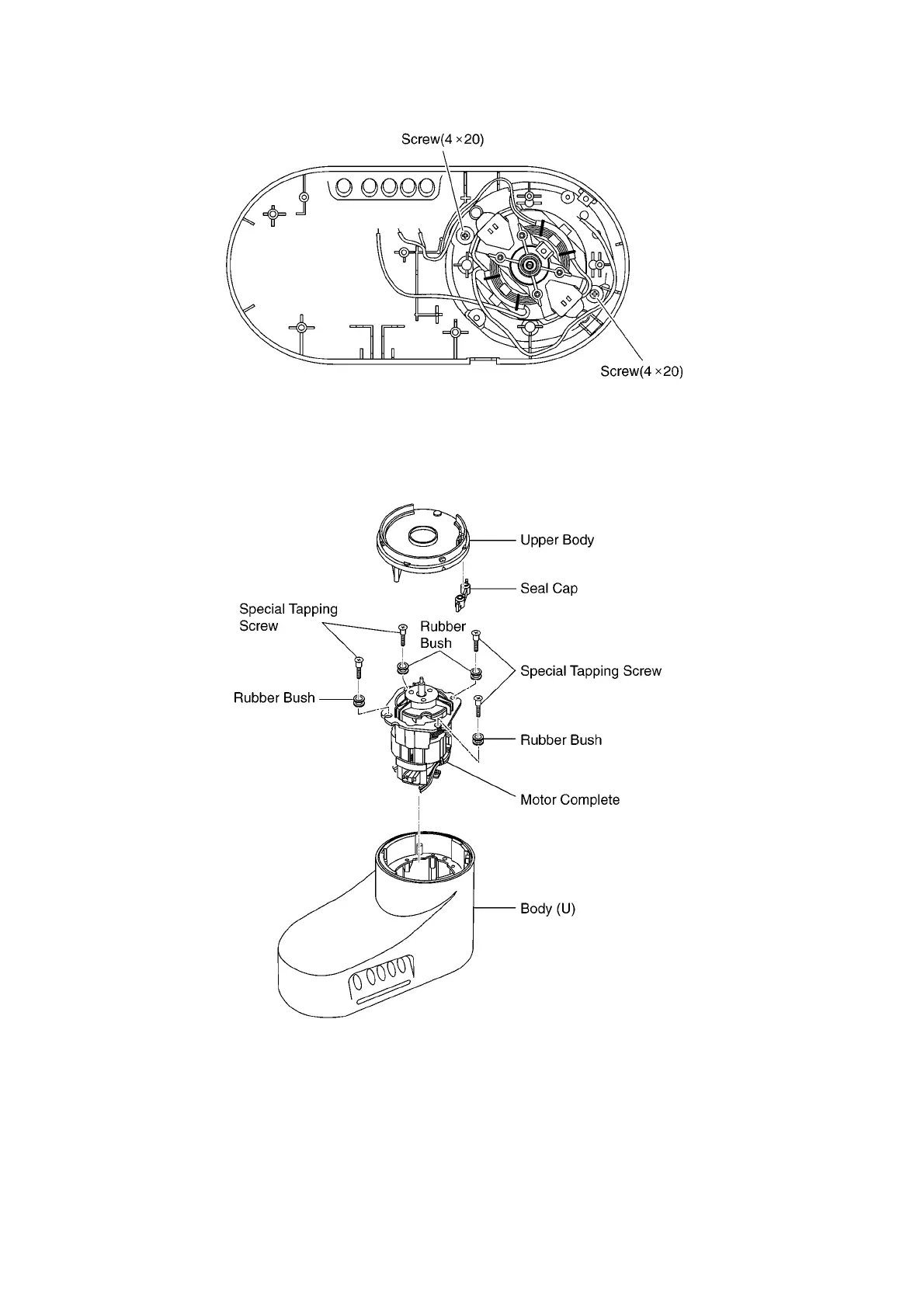

5.6. Motor Complete / Upper Body
1. Remove the 2 Screws (4x20)
2. Put the body upside-down and remove the Upper
Body.
3. Remove the 4 Special Tapping Screws, which fix
the Motor Complete, and remove the Motor Com-
plete.
Assembly Instructions
Add vaseline in 2 hole positions of Seal Cap
before assembling into the upper body.
