11

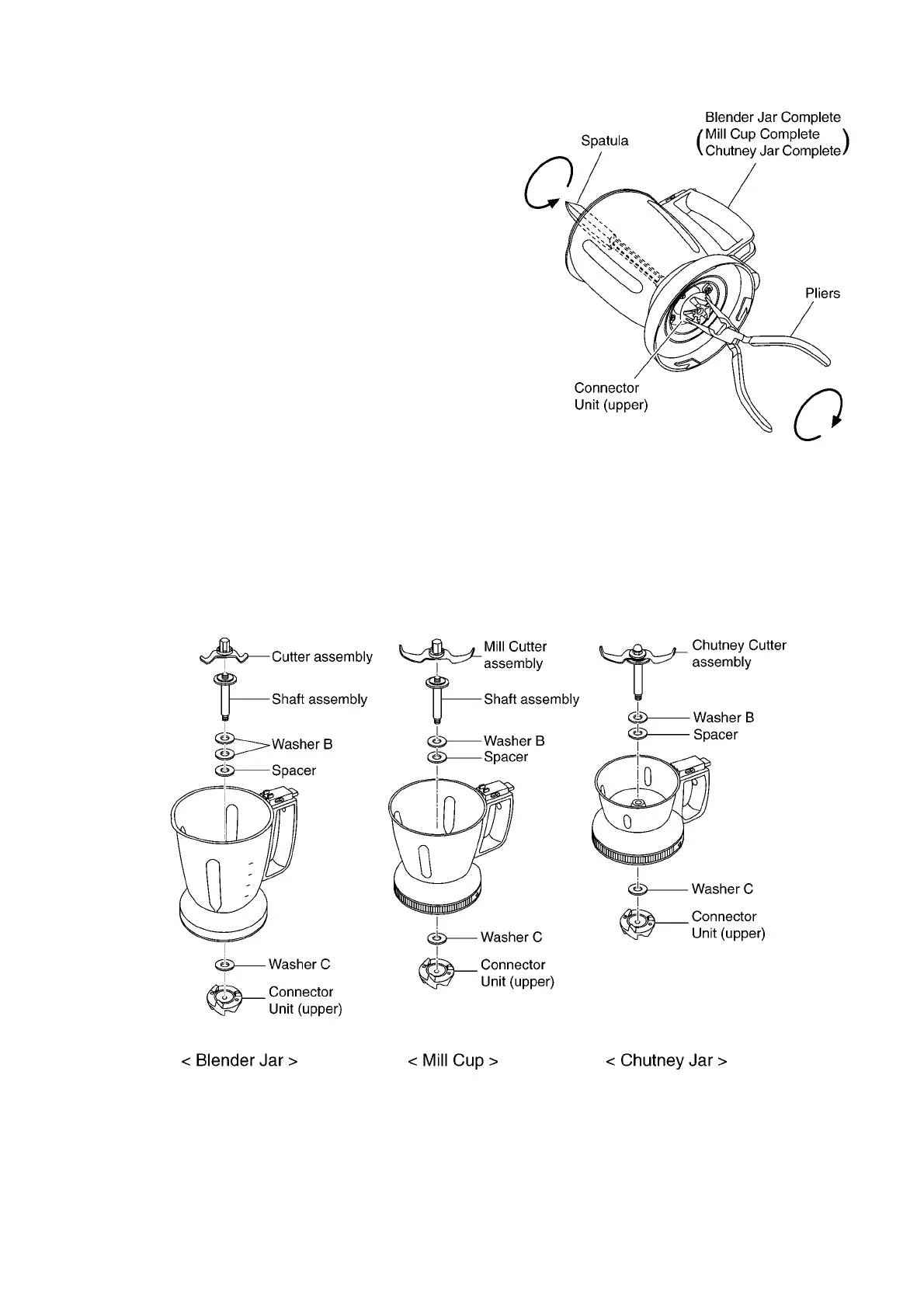

5.7. Blender Jar Complete (Mill Cup Complete / Chutney Jar Complete)
1. Set the Spatula to the Cutter assemble, insert the
longnose pliers into the holes of the Connector
Insert (upper), turn it as shown in the picture and
take out the blade.
2. Remove Cutter assemble, Shaft assembly, Washer B,
Spacer, Washer C and Connector Insert (upper).
• As the Chutney Cutter assembly consists of Cutter
and Shaft integrally, they cannot be separated.
• The number of the Washer B differs in Blender Jar
Complete, Millcut Complete, and Chutney Jar
Complete.
Assembly Instructions
Refer to the picture, and pay attention to the
order and the number of Washer B, Spacer,
Washer C when you assemble.
