5 Disassembly and Assembly Instructions
For assembly, refer to the Assembly Instructions, and perform the procedures in the opposite order of disassembly.

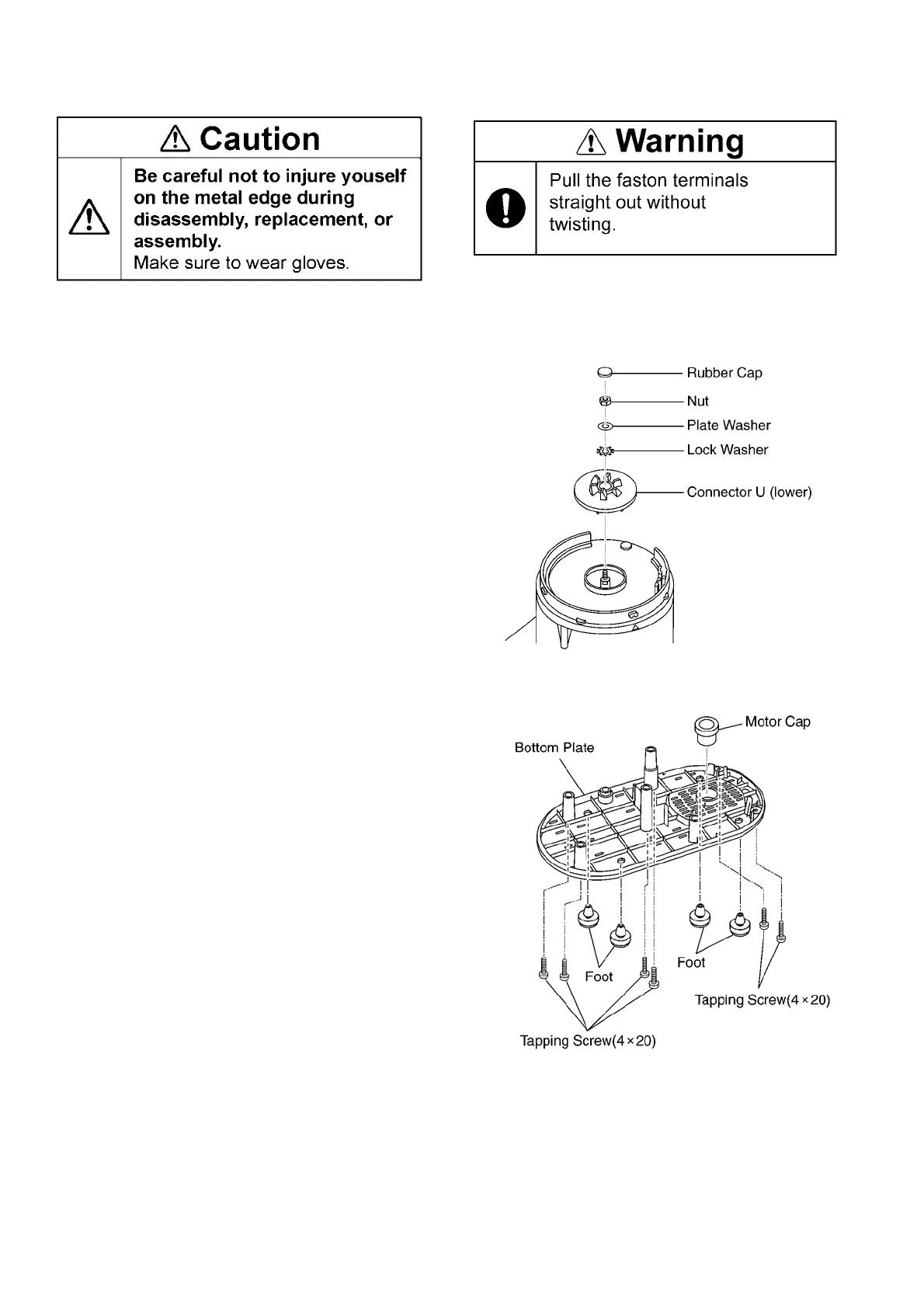

5.1. Rubber Cap, Connector U (lower)
1. Remove Rubber Cap
2. Turn the Nut clockwise, and remove it.
3. Pull out Connector U (lower) and remove Plate Washer
and Lock Washer.
5.2. Bottom Plate
1. Remove the 6 Tapping Screws (4x20), and remove the
Bottom Plate.
2. Detach the Motor Cap and Foot from the Bottom Plate.
