19

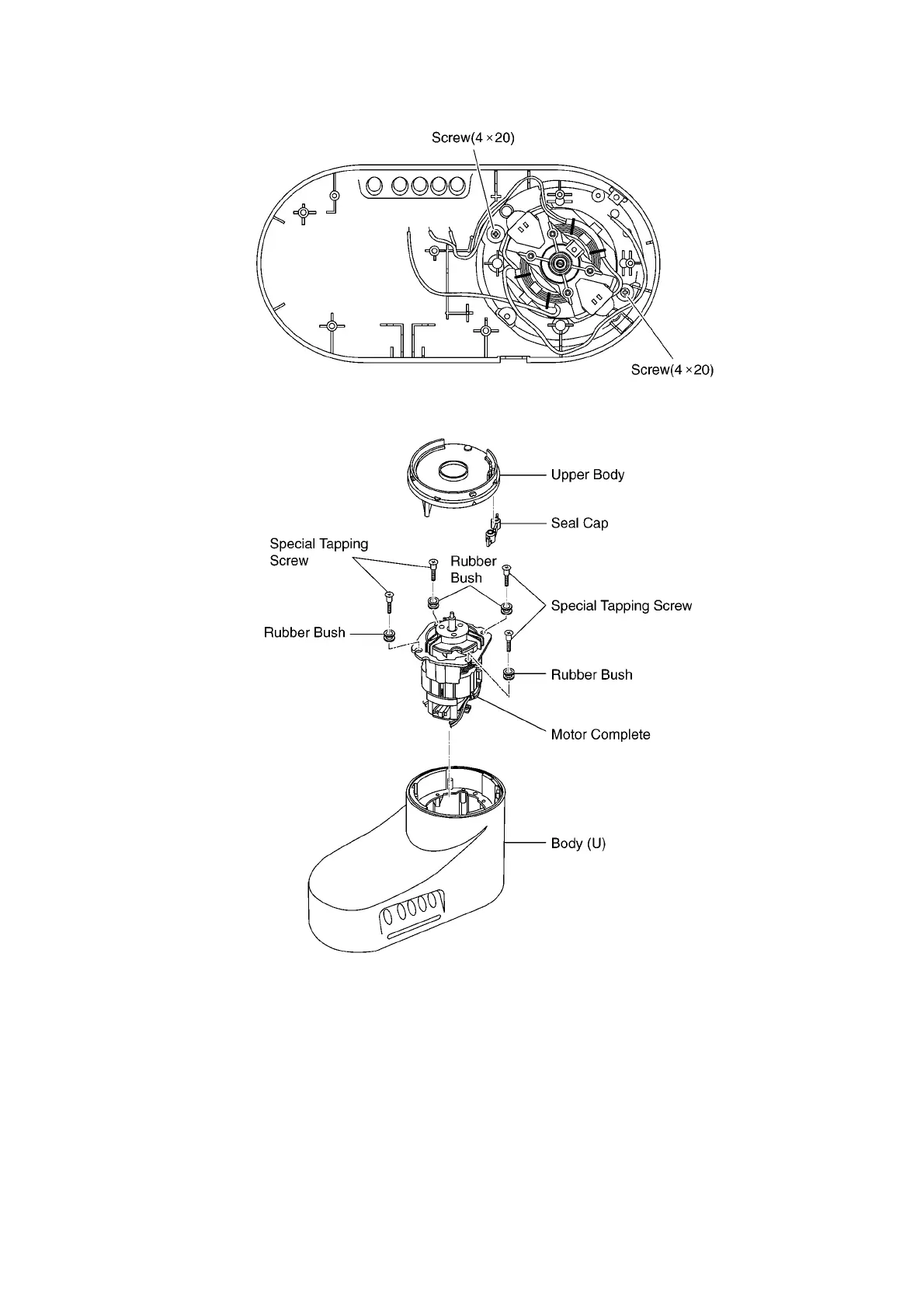

5.6. Motor Complete / Upper Body
1. Remove the 2 Screws (4x20)
2. Put the body upside-down and remove the Upper Body. 3. Remove the 4 Special Tapping Screws, which fix the
Motor Complete, and remove the Motor Complete.
Assembly Instructions
Add vaseline in 2 hole positions of Seal Cap before
assembling into the upper body.
To Next Page
