18

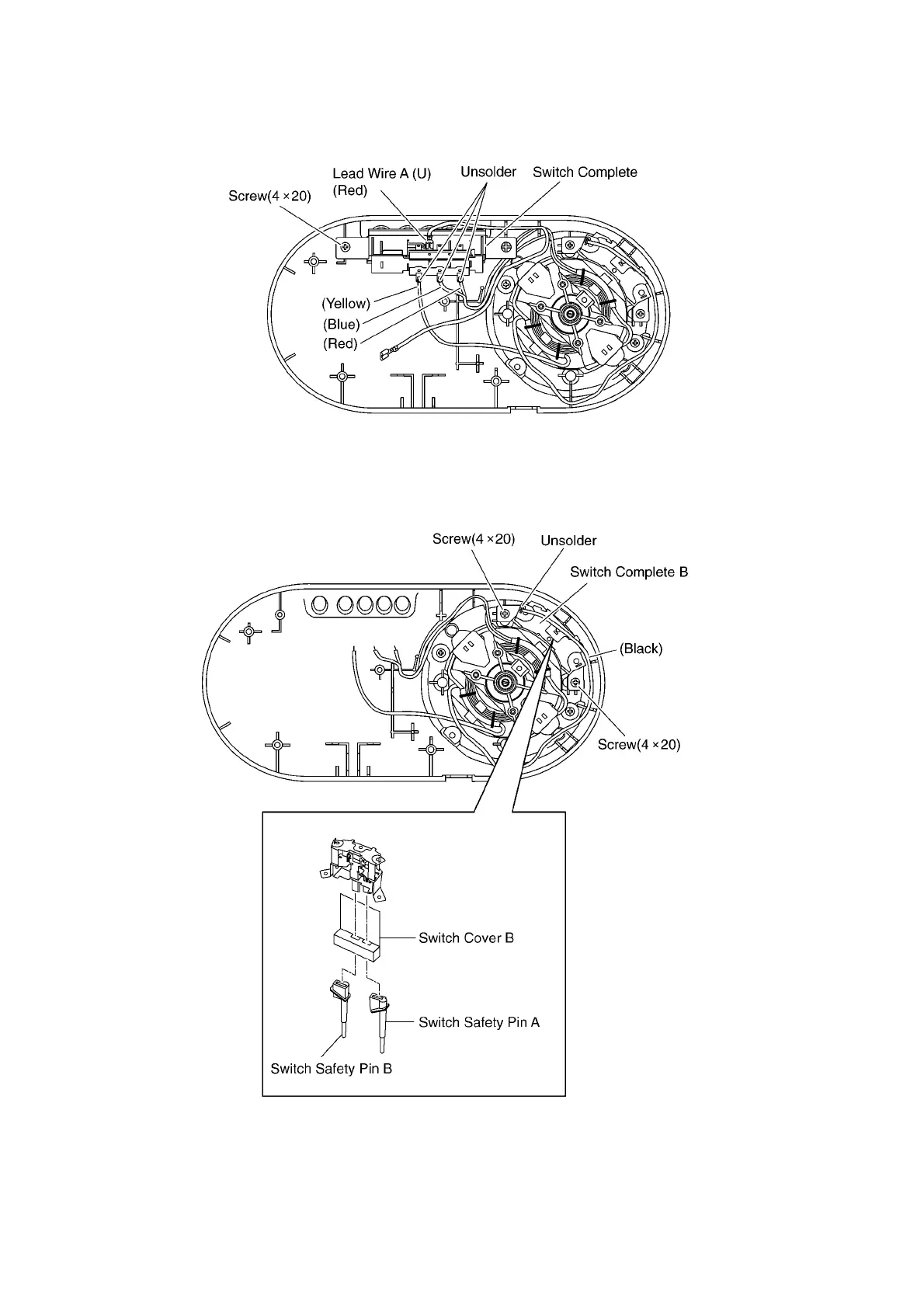

5.4. Switch Complete
1. Remove the faston terminal of Lead Wire A (U).
2. Melt the solder and detach the Lead Wire Yellow, Blue,
Red from the Motor Complete.
3. Remove the Screw (4x20), and remove the Switch Com-
plete.
5.5. Switch Complete B
1. Melt the solder and detach the Lead Wire (Black) from the
Motor Complete.
2. Remove the Screws (4x20) and remove Switch Complete
B.
To Next Page
