45
NA-D106X1

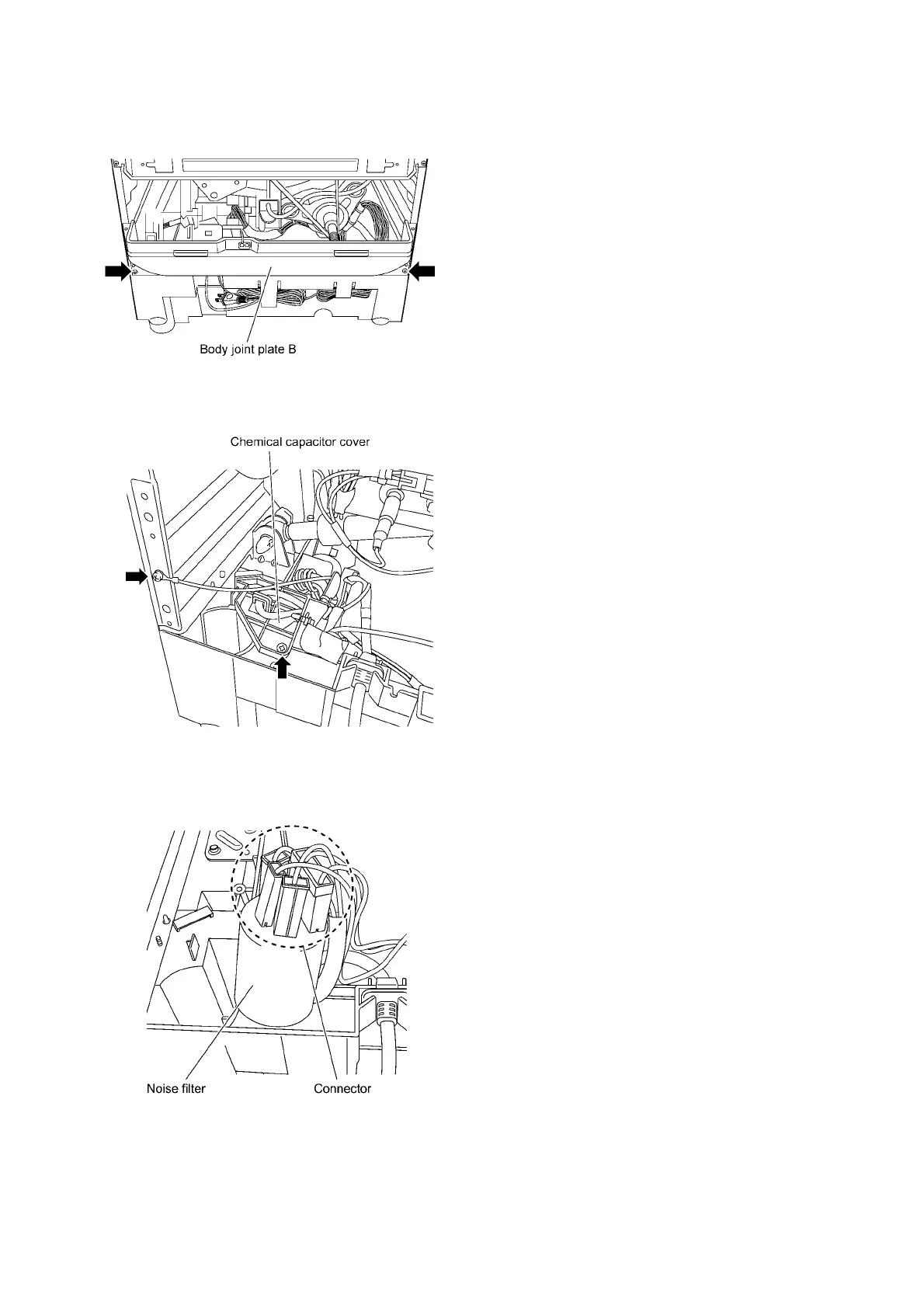

8.15. Replacement of Noise filter
1. After performing the procedures for Replacement of Back
panel (8.3.1), remove 2 Body joint plate B fixing screws.
2. Remove the 2 fixing screws securing the Chemical
capacitor cover and Earth.
3. Remove all Connectors.
4. Take the Noise filter off.
To Next Page
