- 21 -
NA-FS80X1 / FS90X1

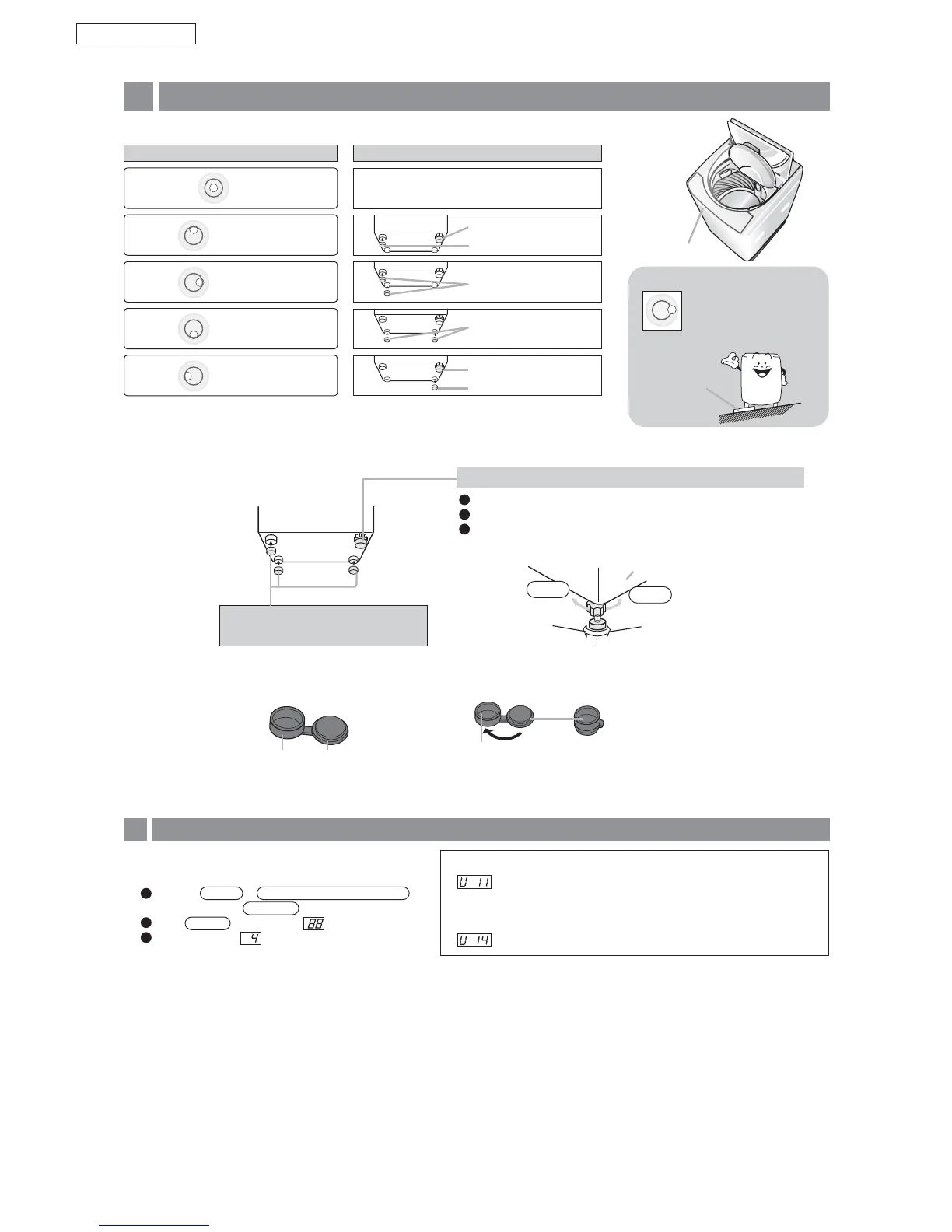

6 Confirm Level
7
Perform test operation to check water leak, abnormal sound and error alart.
Check a Level Meter Adjust Inclination
(Front)
(Front)
(view from the bottom)
Bubble horizon ● No need for adjustment
● Raise
● Install rubber sheet.
● Install rubber sheet.
■ In case of protrude greatly
■ Adjusting inclination
■ Open a faucet and operate after closing a cover
(don't put anything in the tank!).
■ Adjust it with an adjustment leg (one place of right front part)
■ Install an attached adjustment rubber
sheet to adjust for the other case.
1 Loosen an adjustment leg knob.
2 Turn an adjustment leg to adjust inclination.
3 Tighten an adjustment leg knob to fix it.
● Install rubber sheet.
Wood plate, etc.
● Raise
● Install rubber sheet.
● In case for gathering of bubble is slant : please adjust to similar position as above with an
adjustment leg. Then adjustment leg. Then adjust in details.
● Adjustment rubber sheet ● Stacking up (10mm)
● Indicates abnormal for following cases.
Level Meter
Put a board under the
leg of the other side to
decrease protrude.
Then adjust in details.
Back is high
Right is high
Front is high
Left is high
Loosen
※ Adjustment rubber sheet cannot be installed to an adjustment leg.
Tighten
Adjustment leg knob
Higher Lower
Adjustment leg
5 mm
1
2
3
Holding Course + Good Quality House laundry
button and push Power on button.
Push Course button during is displayed.
Remaining time (4min) is displayed and starts
operation. (Operation stops automatically after 4min)
5 mm
・The rise of the drainage hose is higher than 10cm
・The drainage hose is not connected correctly.
・The drainage hose is clogged.
・Water supply hose is connected but a faucet is not opened.
Install a bigger one upper side.
To Next Page
