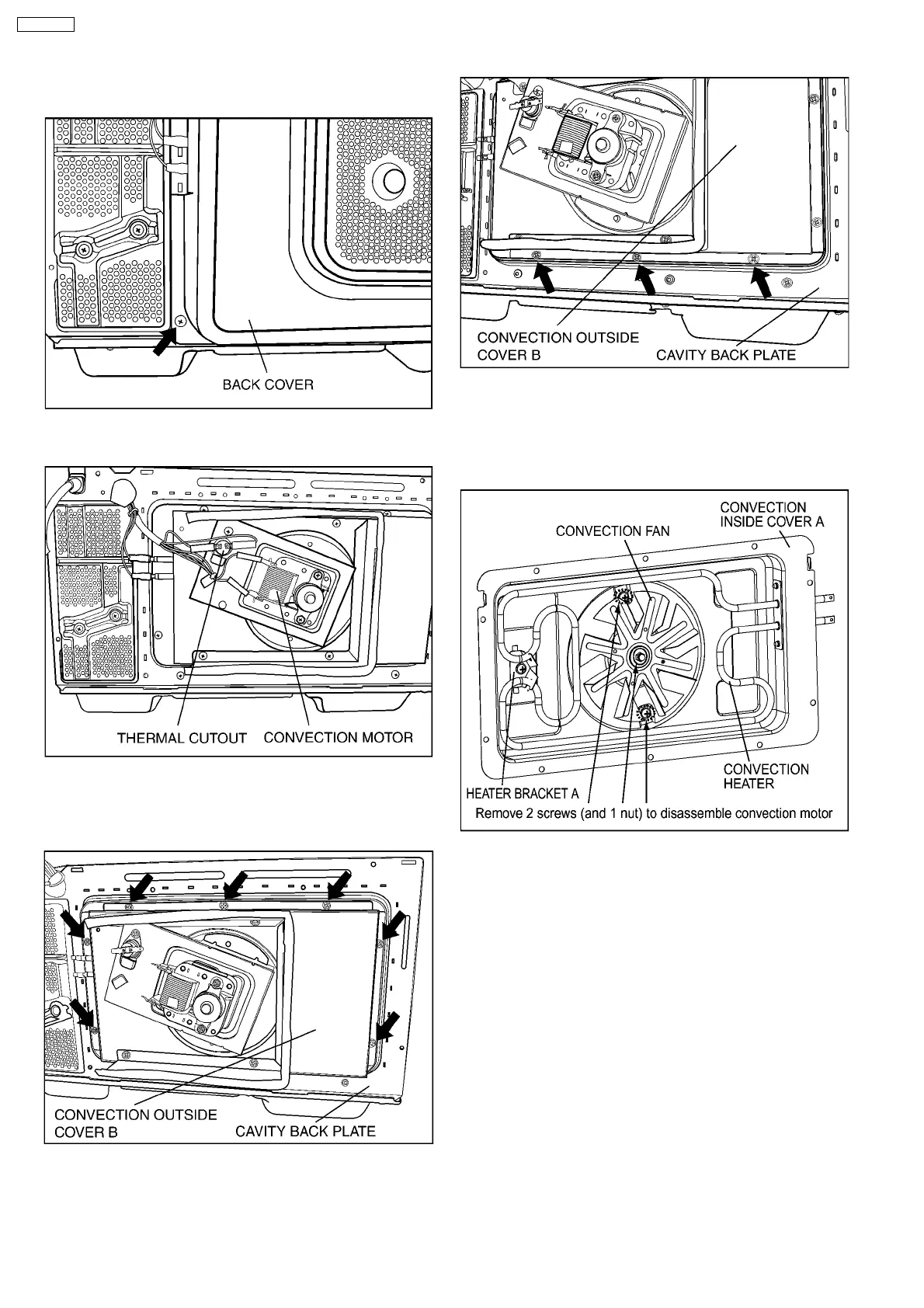

4. Remove 1 screw holding back cover on the lower of back
plate, then remove back cover.
5. Disconnect 2 lead wires from thermal cutout and convection
motor terminals respectively.
6. Remove 10 screws holding convection outside cover B on
cavity back plate, then remove the module, which consists
of convection inside cover A, convection motor and
convection heater.
To replace convection heater
7. Remove 1 nut holding convection fan, then remove
convection fan.
8. Remove 2 screws holding convection fan bracket on
convection inside cover A.
18
NN-CF770M
