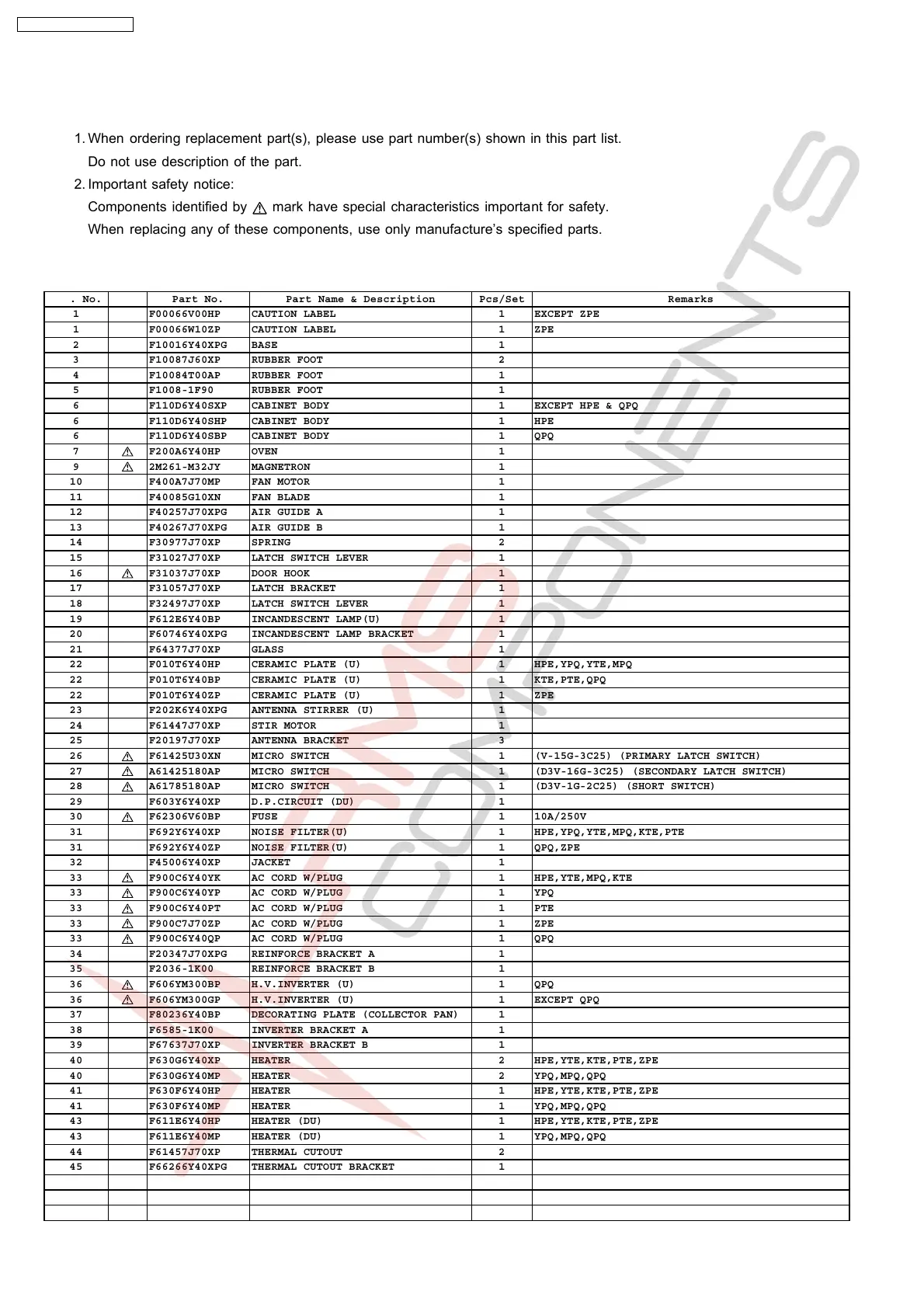

8.2. PARTS LIST
NOTE:
1. When ordering replacement part(s), please use part number(s) shown in this part list.
Do not use description of the part.
2. Important safety notice:
Components identified by
mark have special characteristics important for safety.
When replacing any of these components, use only manufacture’s specified parts.
Ref. No. Part No. Part Name & Description Pcs/Set Remarks
1 F00066V00HP CAUTION LABEL 1 EXCEPT ZPE
1 F00066W10ZP CAUTION LABEL 1 ZPE
2 F10016Y40XPG BASE 1
3 F10087J60XP RUBBER FOOT 2
4 F10084T00AP RUBBER FOOT 1
5 F1008-1F90 RUBBER FOOT 1
6 F110D6Y40SXP CABINET BODY 1 EXCEPT HPE & QPQ
6 F110D6Y40SHP CABINET BODY 1 HPE
6 F110D6Y40SBP CABINET BODY 1 QPQ
7 F200A6Y40HP OVEN 1
9 2M261-M32JY MAGNETRON 1
10 F400A7J70MP FAN MOTOR 1
11 F40085G10XN FAN BLADE 1
12 F40257J70XPG AIR GUIDE A 1
13 F40267J70XPG AIR GUIDE B 1
14 F30977J70XP SPRING 2
15 F31027J70XP LATCH SWITCH LEVER 1
16 F31037J70XP DOOR HOOK 1
17 F31057J70XP LATCH BRACKET 1
18 F32497J70XP LATCH SWITCH LEVER 1
19 F612E6Y40BP INCANDESCENT LAMP(U) 1
20 F60746Y40XPG INCANDESCENT LAMP BRACKET 1
21 F64377J70XP GLASS 1
22 F010T6Y40HP CERAMIC PLATE (U) 1 HPE,YPQ,YTE,MPQ
22 F010T6Y40BP CERAMIC PLATE (U) 1 KTE,PTE,QPQ
22 F010T6Y40ZP CERAMIC PLATE (U) 1 ZPE
23 F202K6Y40XPG ANTENNA STIRRER (U) 1
24 F61447J70XP STIR MOTOR 1
25 F20197J70XP ANTENNA BRACKET 3
26 F61425U30XN MICRO SWITCH 1 (V-15G-3C25) (PRIMARY LATCH SWITCH)
27 A61425180AP MICRO SWITCH 1 (D3V-16G-3C25) (SECONDARY LATCH SWITCH)
28 A61785180AP MICRO SWITCH 1 (D3V-1G-2C25) (SHORT SWITCH)
29 F603Y6Y40XP D.P.CIRCUIT (DU) 1
30 F62306V60BP FUSE 1 10A/250V
31 F692Y6Y40XP NOISE FILTER(U) 1 HPE,YPQ,YTE,MPQ,KTE,PTE
31 F692Y6Y40ZP NOISE FILTER(U) 1 QPQ,ZPE
32 F45006Y40XP JACKET 1
33 F900C6Y40YK AC CORD W/PLUG 1 HPE,YTE,MPQ,KTE
33 F900C6Y40YP AC CORD W/PLUG 1 YPQ
33 F900C6Y40PT AC CORD W/PLUG 1 PTE
33 F900C7J70ZP AC CORD W/PLUG 1 ZPE
33 F900C6Y40QP AC CORD W/PLUG 1 QPQ
34 F20347J70XPG REINFORCE BRACKET A 1
35 F2036-1K00 REINFORCE BRACKET B 1
36 F606YM300BP H.V.INVERTER (U) 1 QPQ
36 F606YM300GP H.V.INVERTER (U) 1 EXCEPT QPQ
37 F80236Y40BP DECORATING PLATE (COLLECTOR PAN) 1
38 F6585-1K00 INVERTER BRACKET A 1
39 F67637J70XP INVERTER BRACKET B 1
40 F630G6Y40XP HEATER 2 HPE,YTE,KTE,PTE,ZPE
40 F630G6Y40MP HEATER 2 YPQ,MPQ,QPQ
41 F630F6Y40HP HEATER 1 HPE,YTE,KTE,PTE,ZPE
41 F630F6Y40MP HEATER 1 YPQ,MPQ,QPQ
43 F611E6Y40HP HEATER (DU) 1 HPE,YTE,KTE,PTE,ZPE
43 F611E6Y40MP HEATER (DU) 1 YPQ,MPQ,QPQ
44 F61457J70XP THERMAL CUTOUT 2
45 F66266Y40XPG THERMAL CUTOUT BRACKET 1
48 F01506W50XP NO TOUCHING LABEL 1 EXCPTE HPE
48 F01508G60HP NO TOUCHING LABEL 1 HPE
49 F22377J70XPG LEFT HEATER PANEL 1
30
NN-CS596A / NN-CS596S
