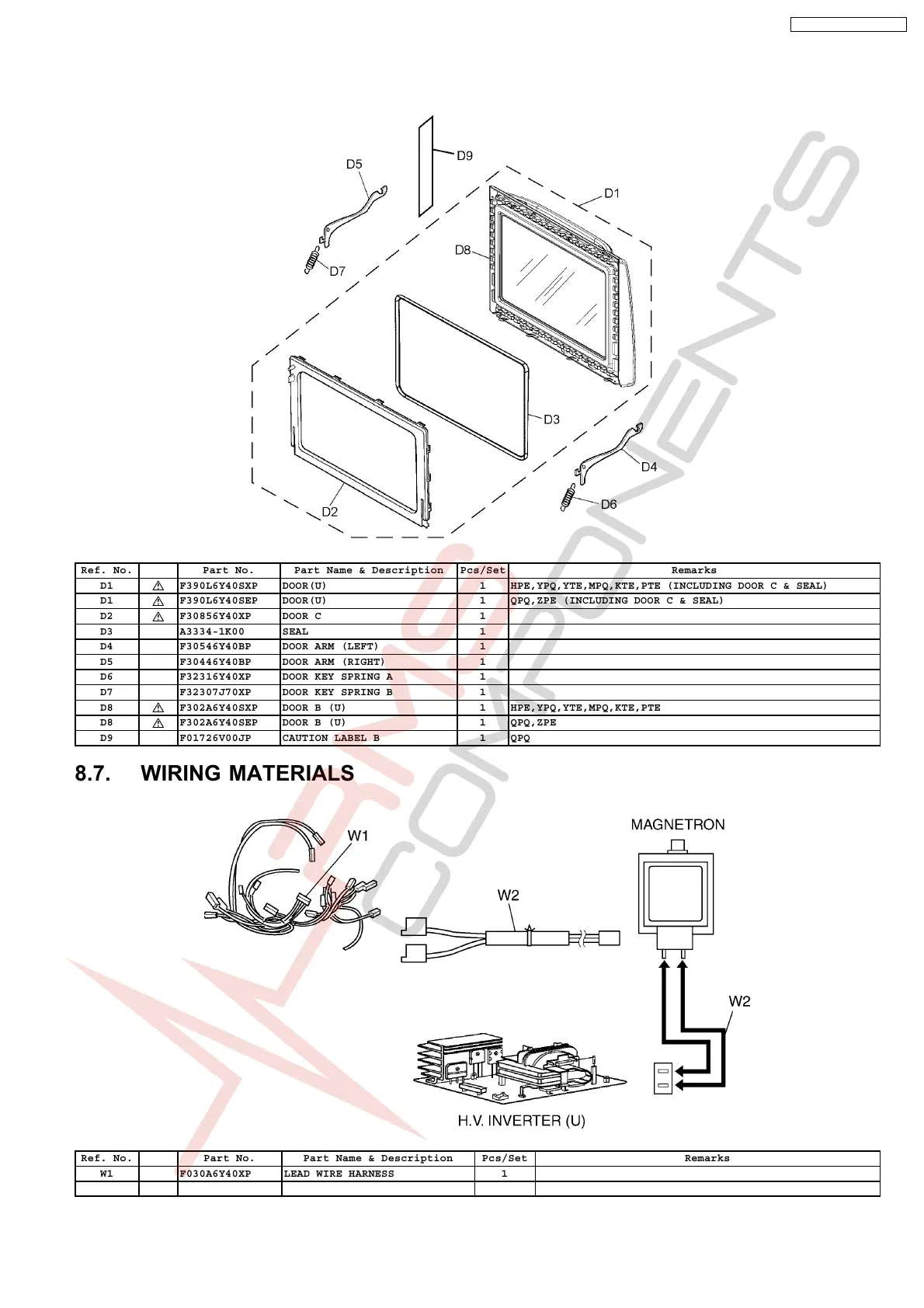

8.6. DOOR ASSEMBLY
Ref. No. Part No. Part Name & Description Pcs/Set Remarks
D1 F390L6Y40SXP DOOR(U) 1 HPE,YPQ,YTE,MPQ,KTE,PTE (INCLUDING DOOR C & SEAL)
D1 F390L6Y40SEP DOOR(U) 1 QPQ,ZPE (INCLUDING DOOR C & SEAL)
D2 F30856Y40XP DOOR C 1
D3 A3334-1K00 SEAL 1
D4 F30546Y40BP DOOR ARM (LEFT) 1
D5 F30446Y40BP DOOR ARM (RIGHT) 1
D6 F32316Y40XP DOOR KEY SPRING A 1
D7 F32307J70XP DOOR KEY SPRING B 1
D8 F302A6Y40SXP DOOR B (U) 1 HPE,YPQ,YTE,MPQ,KTE,PTE
D8 F302A6Y40SEP DOOR B (U) 1 QPQ,ZPE
D9 F01726V00JP CAUTION LABEL B 1 QPQ
8.7. WIRING MATERIALS
Ref. No. Part No. Part Name & Description Pcs/Set Remarks
W1 F030A6Y40XP LEAD WIRE HARNESS 1
W2 F030E7J70XP H.V.LEAD WIRE 1
35
NN-CS596A / NN-CS596S
