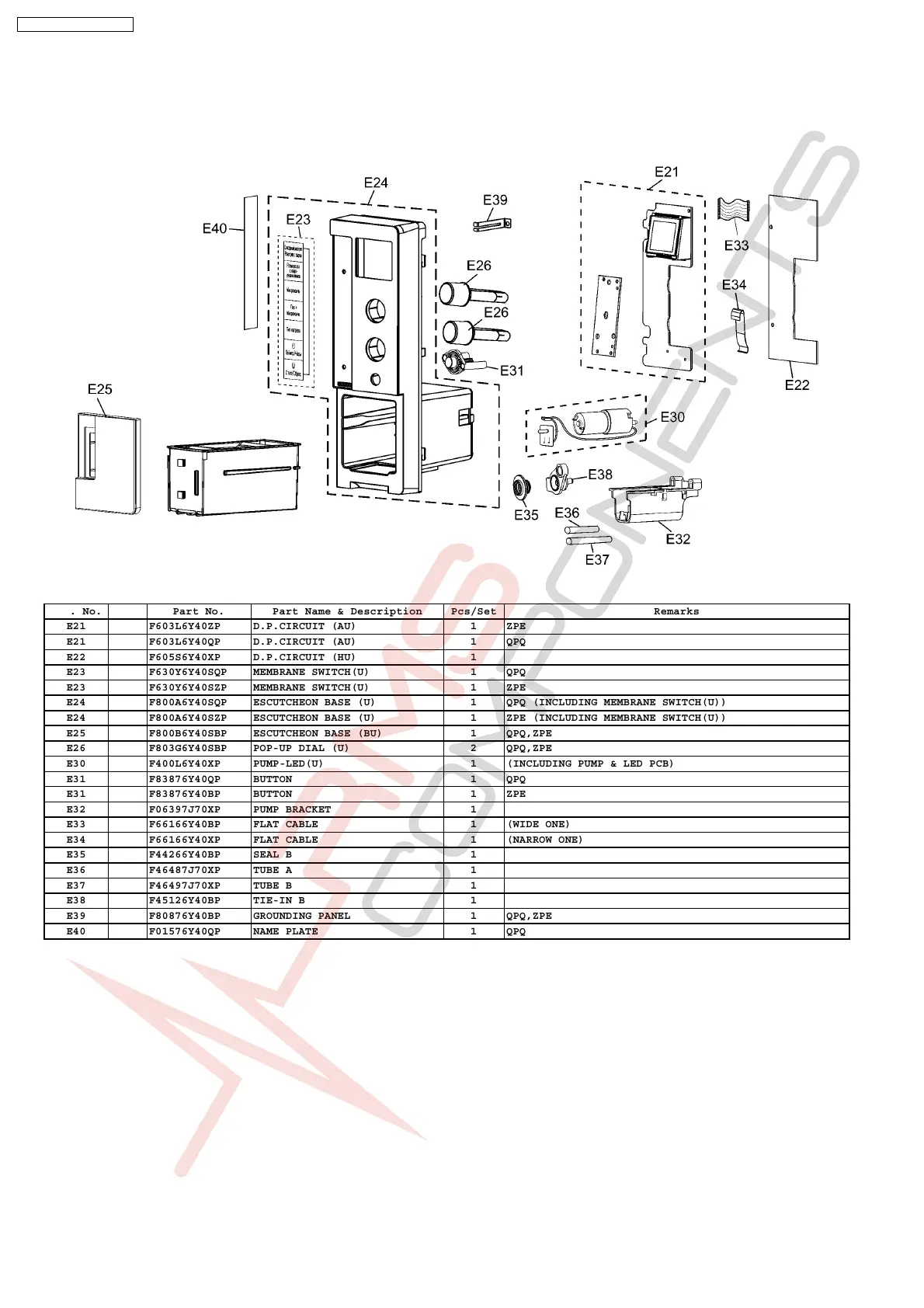

8.5. ESCUTCHEON BASE ASSEMBLY
8.5.1. NN-CS596S QPQ/ZPE
Ref. No. Part No. Part Name & Description Pcs/Set Remarks
E21 F603L6Y40ZP D.P.CIRCUIT (AU) 1 ZPE
E21 F603L6Y40QP D.P.CIRCUIT (AU) 1 QPQ
E22 F605S6Y40XP D.P.CIRCUIT (HU) 1
E23 F630Y6Y40SQP MEMBRANE SWITCH(U) 1 QPQ
E23 F630Y6Y40SZP MEMBRANE SWITCH(U) 1 ZPE
E24 F800A6Y40SQP ESCUTCHEON BASE (U) 1 QPQ (INCLUDING MEMBRANE SWITCH(U))
E24 F800A6Y40SZP ESCUTCHEON BASE (U) 1 ZPE (INCLUDING MEMBRANE SWITCH(U))
E25 F800B6Y40SBP ESCUTCHEON BASE (BU) 1 QPQ,ZPE
E26 F803G6Y40SBP POP-UP DIAL (U) 2 QPQ,ZPE
E30 F400L6Y40XP PUMP-LED(U) 1 (INCLUDING PUMP & LED PCB)
E31 F83876Y40QP BUTTON 1 QPQ
E31 F83876Y40BP BUTTON 1 ZPE
E32 F06397J70XP PUMP BRACKET 1
E33 F66166Y40BP FLAT CABLE 1 (WIDE ONE)
E34 F66166Y40XP FLAT CABLE 1 (NARROW ONE)
E35 F44266Y40BP SEAL B 1
E36 F46487J70XP TUBE A 1
E37 F46497J70XP TUBE B 1
E38 F45126Y40BP TIE-IN B 1
E39 F80876Y40BP GROUNDING PANEL 1 QPQ,ZPE
E40 F01576Y40QP NAME PLATE 1 QPQ
